The SonFlow SFC series condenser and evaporator plate heat exchangers are a precisely engineered solution for large-capacity, high-performance industrial installations where standard heat exchangers cannot provide the required levels of efficiency and adaptability.
en

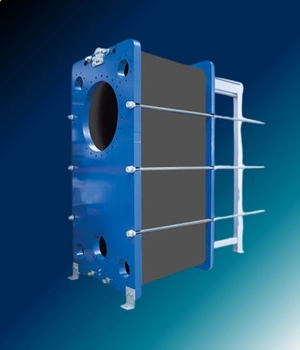

Condenser and Evaporator Plate Heat Exchanger SonFlow
The SonFlow condenser and evaporator plate heat exchangers are designed for efficient heat transfer in refrigeration, air-conditioning, and heat pump systems. They provide optimal thermal performance in a compact design, ensuring high energy efficiency and low operating costs. Thanks to their robust construction and advanced engineering design, the units deliver stable operation even under high loads and demanding conditions.
Product catalogue SonFlow Condenser and Evaporator Plate Heat Exchanger
The SonFlow Condenser / Evaporator SFC801 is specifically designed for condensation and evaporation duties. Dimensions – W 123.5 cm / H 240.0 cm. Connection – DN800 ...
The SFC series condenser and evaporator plate heat exchangers are an engineered solution for large-capacity industrial processes requiring high efficiency and stable performance. Thanks to the asymmetric plate design and optimized flow distribution in the chambers, the unit ensures a uniform heat transfer surface, minimizes stagnant zones, and reduces the risk of fouling.
The SFC801 model is designed for CIP cleaning, easy installation, and long-term operation at a design pressure of 6 bar (0.6 MPa) and an operating temperature of up to 180 °C. It is equipped with DN 800 / 32″ flanged connections, AISI 304/316 plates, “Click On” gaskets made of NBR, EPDM, or Viton, and optional accessories such as a condensate drip tray and insulation.
The construction complies with EN 13445 and ASME VIII Div. 1 standards, ensuring safety and compatibility with industrial requirements. Its flexible configuration allows easy adaptation to specific process schemes, while the demountable frame provides easy maintenance and short service intervals — an optimal solution for the chemical, food and beverage, biogas, and energy industries.
If you are looking for a high-efficiency and reliable solution for large-capacity industrial systems, contact us to receive a technically tailored proposal fully adapted to the parameters and requirements of your installation.
Advantages of SonFlow Condenser and Evaporator
The SonFlow condenser and evaporator plate heat exchangers are designed for efficient heat transfer during condensation and evaporation of process fluids in industrial applications. Thanks to the precise plate geometry and optimized hydraulic design, the units ensure high thermal efficiency, stable operation, and low operating costs.

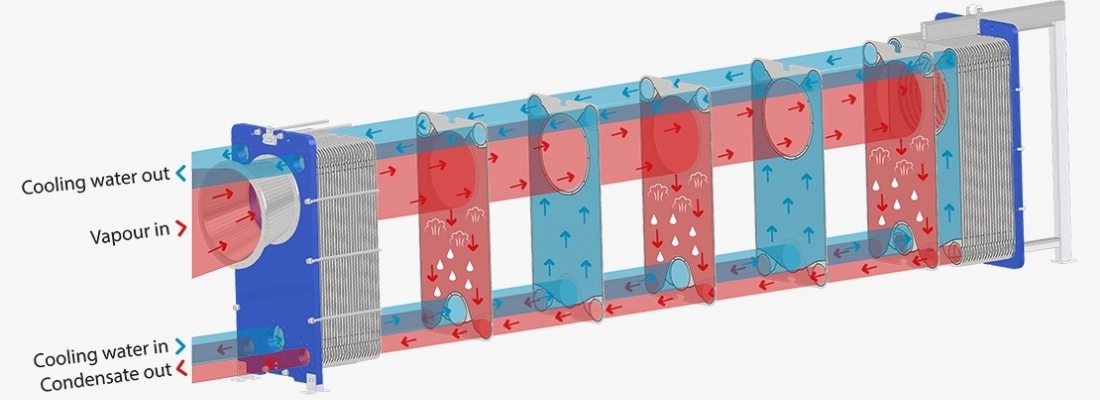

The asymmetric design of the heat transfer plates provides optimal conditions for condensation — a large inlet for vapor and smaller inlets and outlets for the cooling water and condensate. This results in efficient heat transfer, low pressure drop, and stable system performance.
- Handling of duties where there is a big difference between the hot and cold side.
- Especially developed plate pattern for condensing/evaporation of low pressure vapour.
- High thermal efficiency.
- Reduced risk of fouling due to the turbulence on the cooling water side.
- Reduced pressure drop.
- Optimized effective area due to the genius design.
- Extension from DN800 to DN1000.
Areas of аpplication
- Dairy/food/beverage industry
- Sugar industry
- Biogas industry
- Pulp and paper industry
- Mining industry
- Chemical industry
- Petrochemical industry
- Alcohol industry
