Free Flow Plate Heat Exchangers for special applications
Free Flow plate heat exchangers are a specialized solution for heat transfer in fluids containing fibers, high viscosity or solid particles, where conventional plate heat exchangers cannot ensure reliable operation. The design with wide, non-symmetric channels allows particles to pass through without blockage, while maintaining efficient heat transfer and controlled pressure drop.

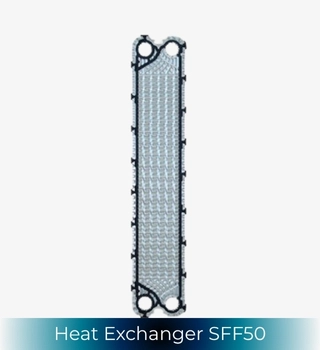

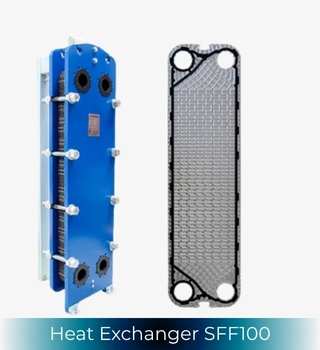

The construction is optimized for uniform flow distribution across the entire heat transfer area, reducing the risk of fouling and uneven deposits. The gasketed, fully serviceable design provides easy access for inspection, mechanical cleaning and CIP processes, making Free Flow heat exchangers suitable for continuous industrial operation. Each unit from series SFF50, SFF100, SFF150, SFF200 и SFF300 can be configured according to the specific process requirements, including flow rate, temperatures, pressure and fluid characteristics.
Product catalogue SonFlow Free Flow Plate Heat Exchangers

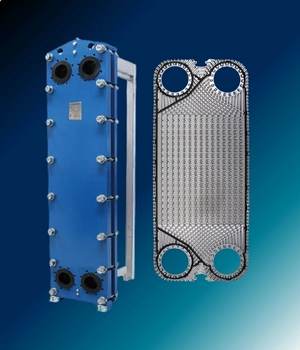

Free Flow heat exchangers use plates with a specialized geometry, where wide channels allow fluids with a high content of particles and fibers to flow freely. The wave pattern of the plates is designed without contact points in the flow direction, ensuring gentle handling of the fluid and reducing the risk of mechanical blockage and fouling.
The clearance between the heat transfer plates reaches up to 12 mm, depending on the plate type, enabling operation with media that would quickly clog conventional plate heat exchangers. This design is particularly suitable for processes that require reliable performance when handling solids or non-homogeneous fluids. Typical application in industries:
- Dairy, food and beverage industry
- Sugar industry
- Biogas plants
- Wastewater treatment
- Pulp and paper industry
- Mining industry
If you are looking for a reliable solution for challenging fluids, contact us for availability and quotation.

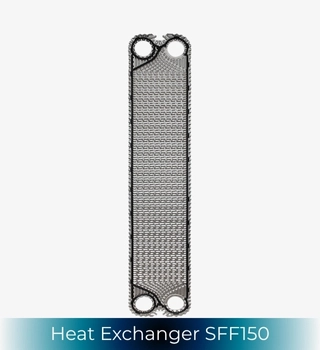

Free Flow plate heat exchanger SFF150 (SFF151) is designed for industrial applications with increased flow rates. The construction allows reliable operation with fluids containing particles or fibres while minimizing the risk of blockage. Suitable for applications with increased flow rates and continuous operation. ...

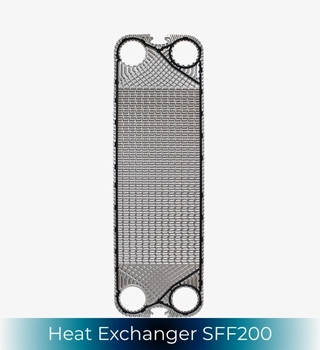

Free Flow plate heat exchanger SFF200 (SFF204, SFF207) is a larger capacity model within the Free Flow series, suitable for applications with high flow rates and challenging media. The wide channels support stable operation in contaminated fluids. Suitable for high flow applications requiring stable operation with fluids. ...

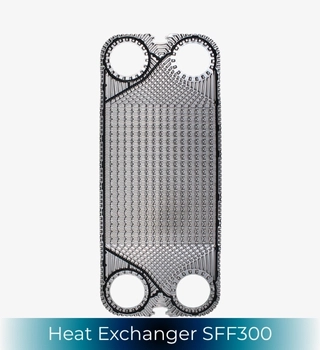

Free Flow plate heat exchanger SFF301 is the largest model in the series SFF300, designed for applications with very high flow rates. This plate heat exchanger is suitable for industrial processes involving fluids with solids or fibrous content. Suitable for large-scale industrial systems ...
See also gasketed plate heat exchangers and brazed plate heat exchangers for standard applications.
