SonFlow SF500 Gasketed Plate Heat Exchanger
SF502 with DN500 flanged connections for high flow rates
SonFlow SF500 is a single-pass series of gasketed plate heat exchangers for industrial and central heating and cooling systems with high flow rates. It has the largest overall dimensions in SonFlow’s gasketed range. KONTECH offers the SF502 model with DN500 flanged connections, sized for the required thermal duty and allowable pressure drop.
The gasketed construction allows inspection, cleaning and replacement of plates and gaskets. SF502 is supplied on request. The configuration, price and delivery lead time are specified in the quotation.
SF502
DN500 · flanged connections
10 bar
up to +165 °C
AISI 304, AISI 316 or titanium
NBR or EPDM
New heat exchanger, replacement or spare parts
Select your enquiry type and send the available data. We will clarify any additional information required for the quotation.
New heat exchanger
Send the fluids, flow rates and inlet and outlet temperatures on both sides. Specify the pressures, allowable pressure drop and installation constraints.
Heat exchanger replacement
Send photos of the nameplate and unit, operating parameters, overall dimensions and connection details. We will assess the options for replacement with a SonFlow unit.
Plates and gaskets
Send the model, serial number and required quantity. Attach photos of the nameplate, plate or gasket, and specify the fluids and operating temperatures.
Dimensions and configuration of the SF502 model

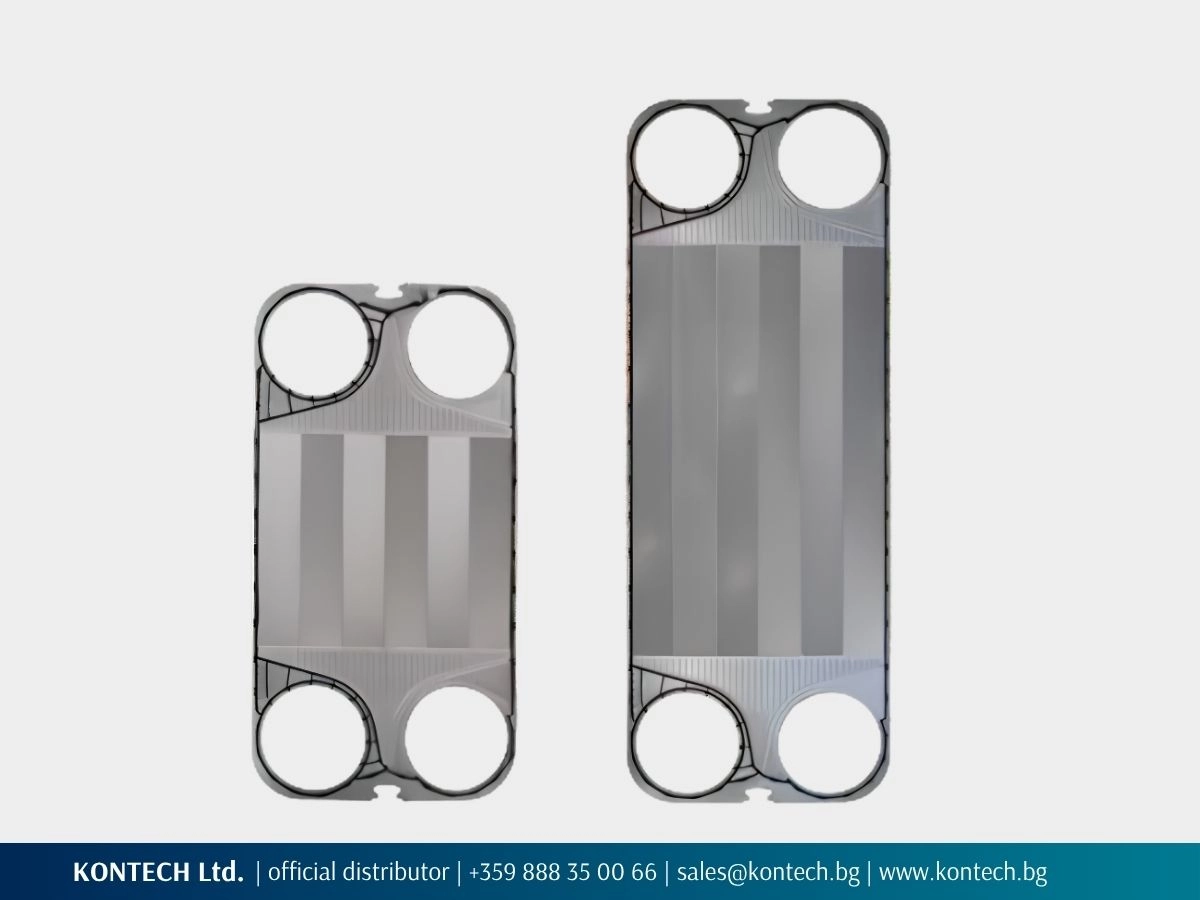

SF502 uses plates measuring 1248 × 2400 mm. The horizontal and vertical port centre distances are 672 mm and 1822 mm respectively. The configuration offered by KONTECH has a design pressure of 10 bar and DN500 flanged connections.
When to select the SF500 series
KONTECH recommends SF502 for projects with high flow rates and DN500 connections that require a gasketed plate heat exchanger. Selection is checked against the thermal duty, temperatures, flow rates and allowable pressure drop.
Planning includes checks of the transport route, access to the installation site and lifting arrangements. Space must be provided to open the frame and service the plate pack.
When to consider another series
For different flow rates, connection sizes or overall dimensions, consider the other SonFlow gasketed plate heat exchangers.
For fluids containing particles or fibres, or with higher viscosity, the suitability of a Free Flow plate heat exchanger is assessed.
Typical applications of SonFlow SF500
- Central Heating and Cooling: Heat transfer between water circuits in energy and infrastructure installations.
- Industrial Processes: Heating and cooling of process fluids and waste heat recovery.
- Data Centres: Separation of cooling circuits according to the temperature regime and hydraulic requirements.
Configuration for the fluids and operating conditions
Plates
SF502 is available with AISI 304, AISI 316 or titanium plates. The material is selected according to the fluid composition, temperatures and corrosion resistance requirements.
Frame
A painted carbon steel frame, RAL 5010, is available with a design pressure of 10 bar. Overall dimensions and service clearances are specified for the selected configuration.
Gaskets
SF502 uses glued NBR or EPDM gaskets. The material is selected according to the fluids, temperatures and cleaning agents.
Connections
SF502 is available with DN500 flanged connections. The connection ports are unlined carbon steel. Mating pipe flanges are not included.
Information required for a quotation
For a new heat exchanger
- Fluid on side 1 and side 2
- Flow rate on both sides
- Inlet and outlet temperatures
- Thermal duty, if known
- Operating and design pressures
- Allowable pressure drop
- Material and connection requirements
- Transport, installation and maintenance constraints
For a replacement
- Photo of the unit’s nameplate
- Manufacturer, model and serial number
- Overall dimensions and connection details
- Available operating parameters
- Reason for replacement, if known

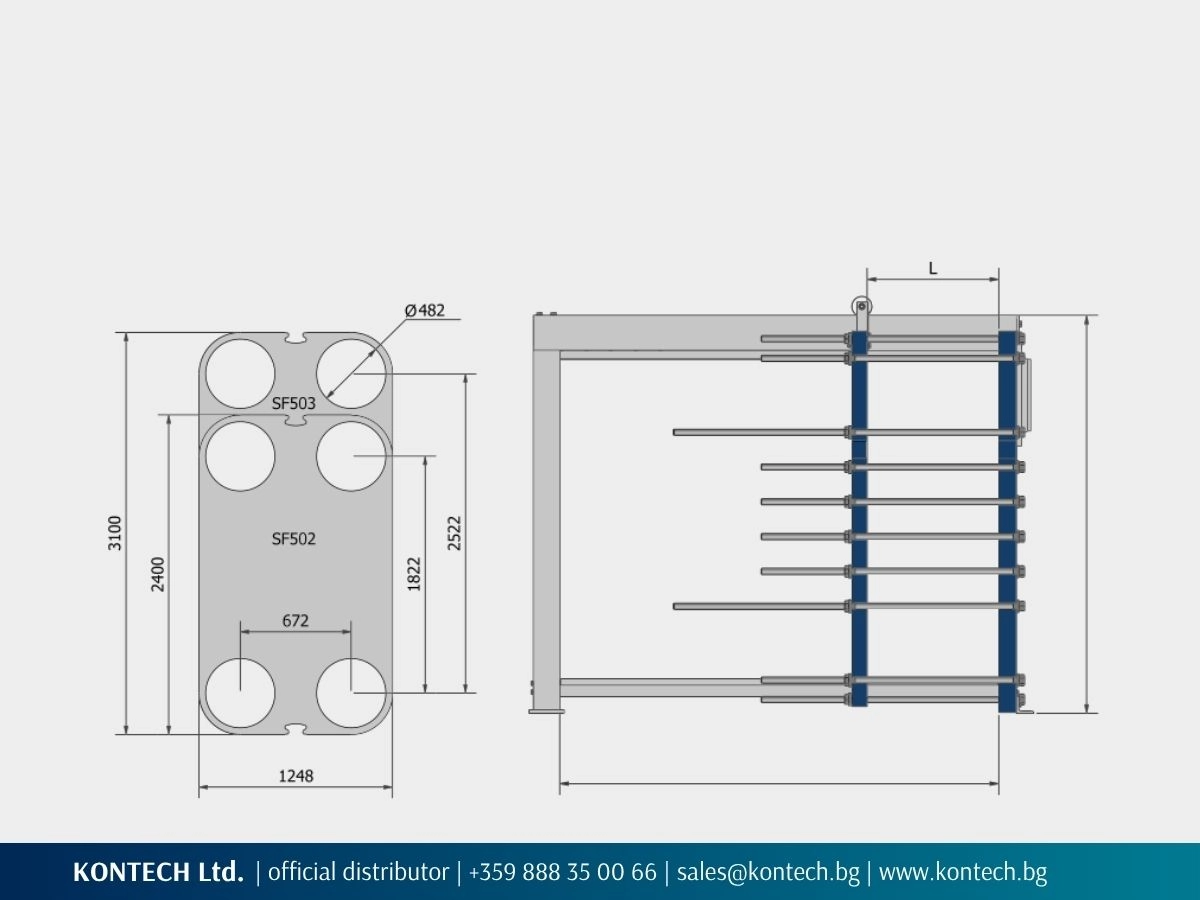

SonFlow SF502 technical drawing and dimensions
SonFlow SF500 technical data
| Parameter | Data |
|---|---|
| Heat exchanger type |
Gasketed plate heat exchanger |
| Series |
SonFlow SF500 |
| Model |
SF502 |
|
Plate dimensions, mm (width / height) |
1248 / 2400 |
| Port centre distances, mm (horizontal / vertical) |
672 / 1822 |
| Plate port diameter |
Ø482 mm |
| Design pressure |
10 bar |
| Flow arrangement |
Single-pass |
| Plate material |
Stainless steel AISI 304; Stainless steel AISI 316; Titanium |
| Operating temperature |
Up to +165 °C, depending on the configuration |
| Frame |
Painted carbon steel frame, RAL 5010 |
| Connections |
DN500 flanged connections |
| Gasket materials |
NBR EPDM |
| Accessories |
Drip tray; Insulation jacket; Safety cover; Assembly spanner; Foundation feet |

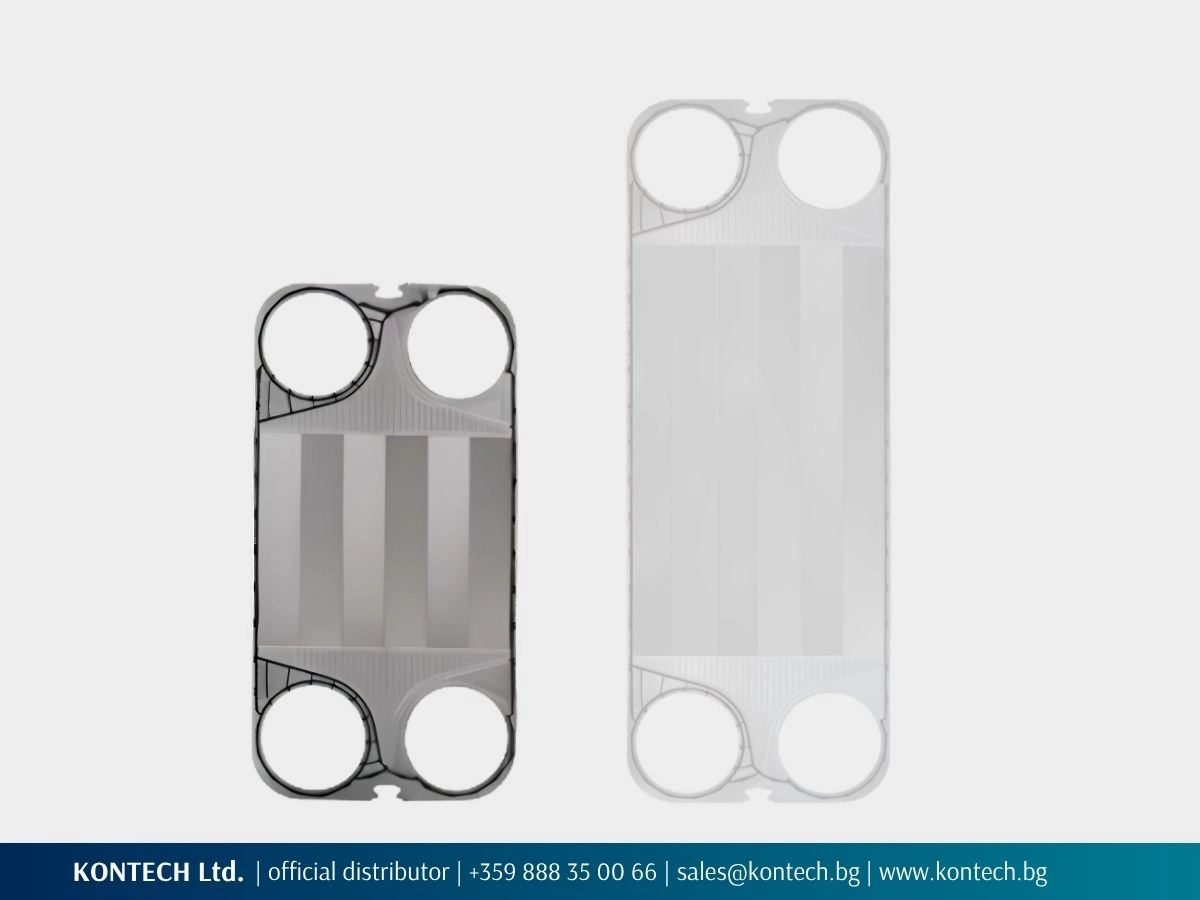

The dimensions shown are those of the SF502 plate, as indicated in the manufacturer’s drawing.
The technical data are based on the SonFlow A/S datasheet dated July 2026 and apply to the configurations offered by KONTECH. The manufacturer reserves the right to change specifications without prior notice.
SonFlow SF502 is supplied to order. The price and delivery lead time are specified in the quotation.
