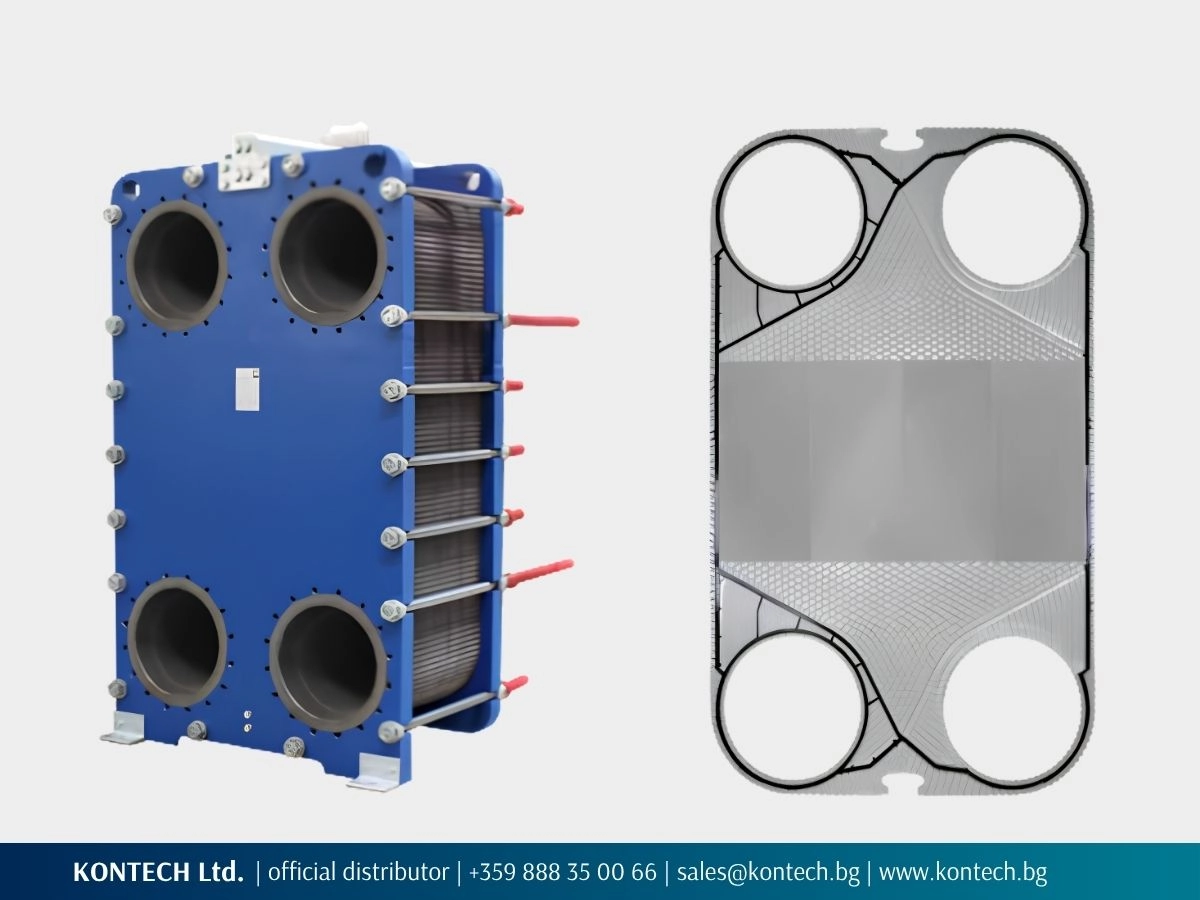

SonFlow SF400 Gasketed Plate Heat Exchanger
Models SF401 and SF402 with DN400 flanged connections
SonFlow SF400 is a series of single-pass gasketed plate heat exchangers with DN400 flanged connections for industrial and HVAC systems with high flow rates. It includes models SF401 and SF402. The configuration is selected according to the required thermal duty, flow rates, temperatures and allowable pressure drop.
The frame can be opened for plate inspection, mechanical cleaning, and plate and gasket replacement. Selection also takes account of installation space and maintenance access. SF400 is supplied to order, with the price and delivery time specified in the quotation.
SF401 and SF402
DN400 · flanged connections
10 bar or 16 bar
Up to +165 °C, depending on configuration
AISI 304, AISI 316 or titanium
EPDM or NBR
New heat exchanger, replacement or spare parts
Select the enquiry type and send the information you have available. We will clarify any additional details required to prepare a quotation.
New heat exchanger
Send the fluids on both sides, flow rates, and inlet and outlet temperatures. Specify the pressures, allowable pressure drop, and available space for installation.
Heat exchanger replacement
Send photos of the nameplate and unit, operating parameters, overall dimensions and connection details. We will assess replacement with SF400 or another series.
Plates and gaskets
Send the model, serial number, required quantity, and photos of the nameplate, plate or gasket. Include the fluids and operating temperatures, if known.
Models SF401 and SF402
Both models use plates with a width of 1152 mm and a horizontal port pitch of 660 mm. The two plate heights provide selection options according to the thermal duty and installation constraints.

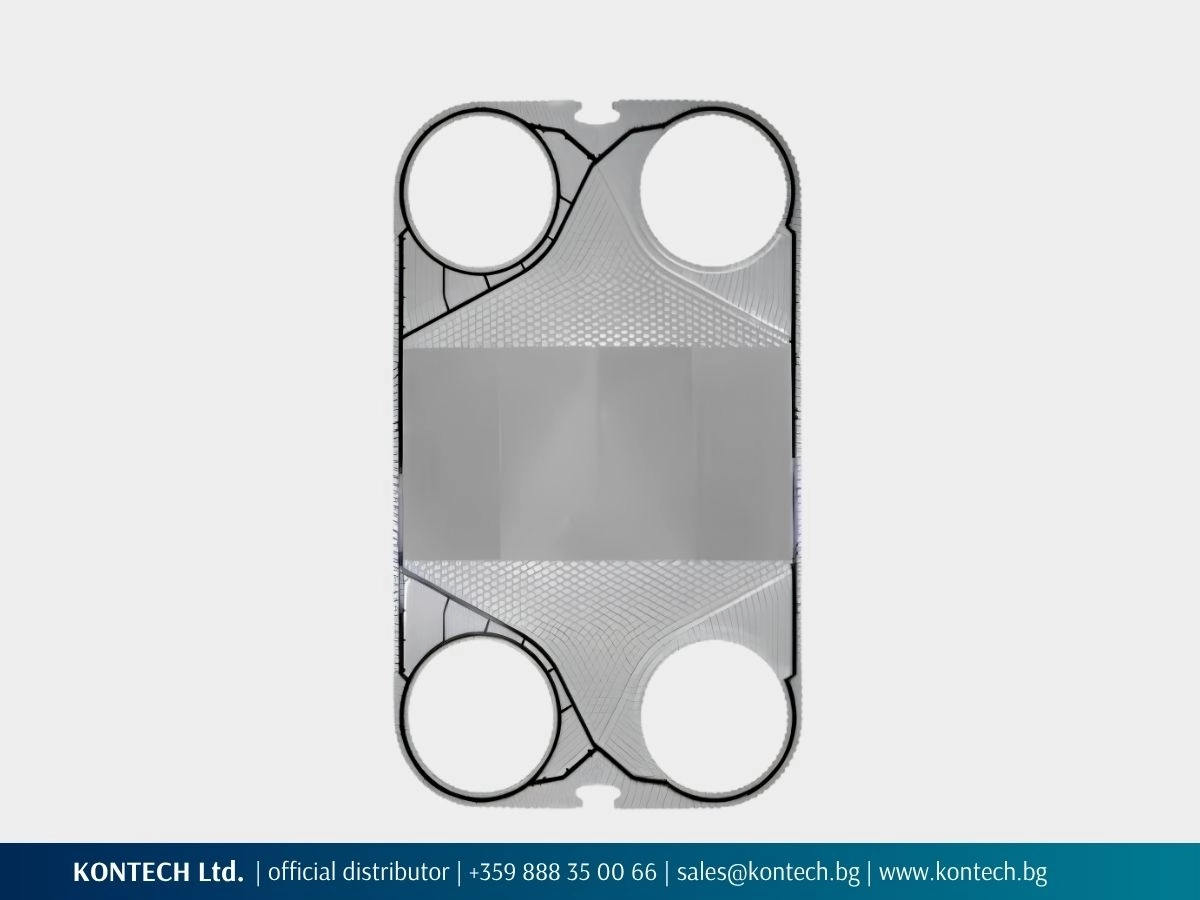

SF401 · plate size 1152 × 1902 mm
The vertical port pitch is 1410 mm. The overall frame height shown in the drawing is 2266 mm. The model is available with a design pressure of 10 or 16 bar.
SF402 · plate size 1152 × 2393 mm
The vertical port pitch is 1901 mm. The overall frame height shown in the drawing is 2757 mm. The model is available with a design pressure of 10 bar.
When to consider SF400
KONTECH recommends considering SF400 for systems with high flow rates and DN400 flanged connections that require a gasketed plate heat exchanger. The two plate heights provide options when sizing a single-pass unit.
Selection considers thermal duty, temperatures, flow rates and allowable pressure drop. Installation planning also covers delivery access, lifting arrangements, and the space needed to open and service the plate pack.
When to consider another series
For different flow rates, connection sizes or overall dimensions, explore the other SonFlow gasketed plate heat exchangers.
For fluids containing particles or fibres, or with higher viscosity, a Free Flow plate heat exchanger can be assessed.
Typical applications of SonFlow SF400
- Central heating and cooling: Heat transfer between water circuits in central plants. The configuration is selected according to the thermal load, operating temperatures and hydraulic constraints.
- Industrial processes: Heating and cooling of process fluids and waste heat recovery. Fluid composition and compatibility with the unit’s materials are checked during selection.
- Data centres: Separation of cooling circuits with high flow rates. Selection considers the required thermal duty, temperature approach and allowable pressure drop.
Configuration for the fluids and operating conditions
Plates
The SF400 series is available with AISI 304, AISI 316 or titanium plates. The material is selected according to fluid composition, temperatures and corrosion resistance requirements.
Frame
A painted carbon steel frame in RAL 5010 is available. Design pressure is 10 or 16 bar for SF401 and 10 bar for SF402. Frame dimensions are specified according to the model, plate pack and installation requirements.
Gaskets
NBR or EPDM gaskets with glued attachment are used. The material is selected according to the fluids, temperatures and cleaning agents.
Connections
The SF400 series is available with DN400 flanged connections in carbon steel. Mating pipework flanges are not included. The connection configuration, flange standard and pressure rating are specified in the quotation.
Information required for a quotation
For a new selection
- Fluid on side 1 and side 2
- Flow rate on each side
- Inlet and outlet temperatures
- Thermal duty, if known
- Operating and design pressures
- Allowable pressure drop
- Material and flanged connection requirements
- Available space for installation and maintenance
- Delivery access and lifting constraints
For a replacement
- Photo of the unit’s nameplate
- Manufacturer, model and serial number
- Overall dimensions and connection details
- Available operating parameters
- Reason for replacement, if known

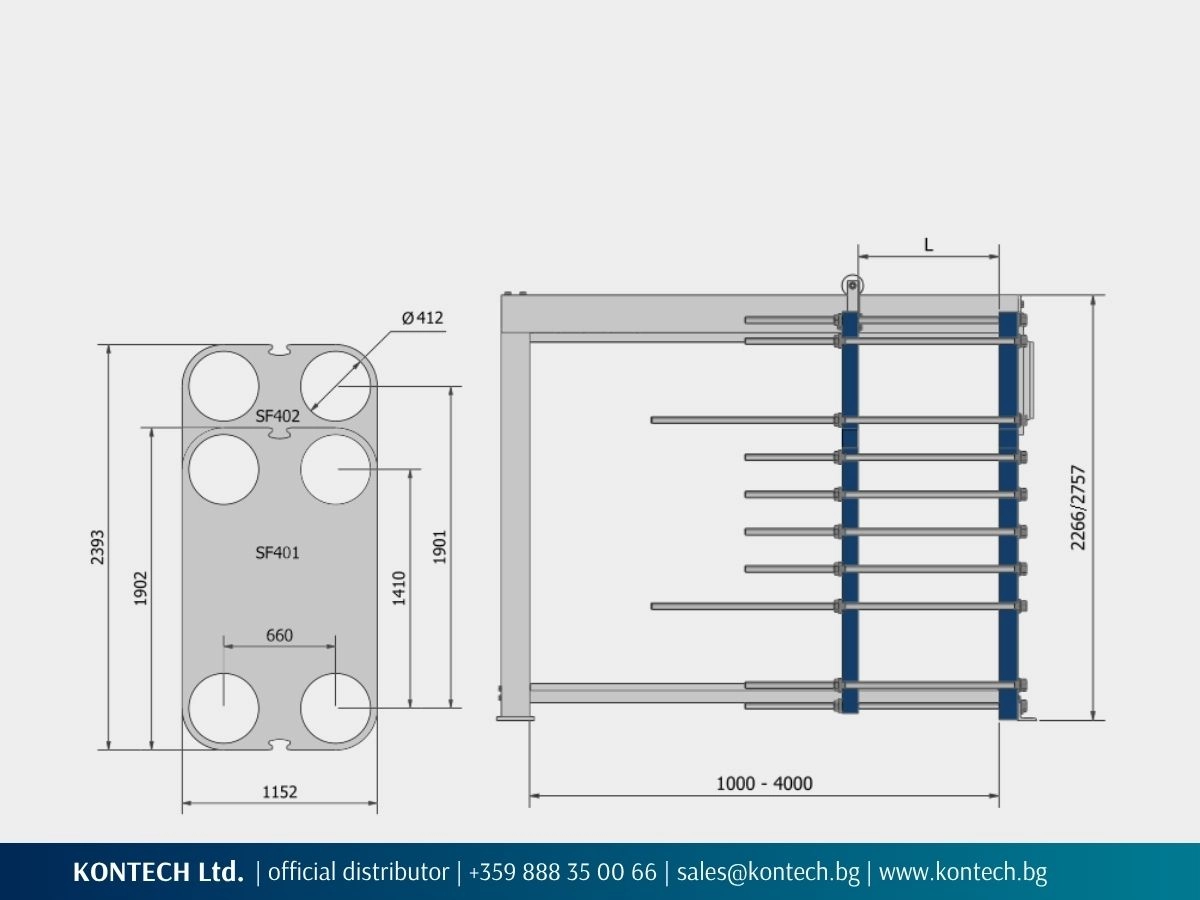

SonFlow SF400 technical drawing and dimensions
SonFlow SF400 technical data
| Parameter | Data | |
|---|---|---|
| Heat exchanger type |
Gasketed plate heat exchanger |
|
| Series |
SonFlow SF400 |
|
| Models |
SF401 |
SF402 |
|
Plate dimensions, mm (width / height) |
1152 / 1902 |
1152 / 2393 |
| Port pitch, mm (horizontal / vertical) |
660 / 1410 |
660 / 1901 |
| Plate port diameter |
Ø412 mm |
Ø412 mm |
| Overall frame height, mm |
2266 |
2757 |
| Design pressure |
10 bar; 16 bar; |
10 bar; |
| Flow arrangement |
Single-pass; |
|
| Plate materials |
AISI 304 stainless steel; AISI 316 stainless steel; Titanium; |
|
| Operating temperature |
Up to +165 °C, depending on configuration; |
|
| Construction standards listed by the manufacturer |
EN 13445 ASME Section VIII, Division 1 |
|
| Frame |
Painted carbon steel frame, RAL 5010 |
|
| Connections |
DN400 flanged connections |
|
| Gaskets |
NBR; EPDM; |
|
| Accessories |
Drip tray; insulation jacket; safety cover; assembly spanner; foundation feet |
|
The dimensions shown are taken from the manufacturer’s technical drawing. Frame length, plate pack dimensions and the required maintenance clearance are specified for the selected configuration.
The technical data are based on the SonFlow A/S datasheet dated 07.2026 and reflect the configurations supplied by KONTECH. The manufacturer reserves the right to change specifications without prior notice.
SonFlow SF400 is supplied to order. The price depends on the model and configuration. The proposed configuration, price and delivery time are specified in the quotation.
Frequently asked questions
Both models use plates with a width of 1152 mm. Plate height is 1902 mm for SF401 and 2393 mm for SF402. SF401 is available with a design pressure of 10 or 16 bar, while SF402 is available at 10 bar. Selection depends on thermal duty, flow rates and installation space.
Replacement options are assessed using the existing unit’s operating parameters, overall dimensions and connection details. Send a nameplate photo and an available drawing or dimensions. KONTECH will assess a replacement configuration and any required pipework modifications.
The required space depends on the model, frame and plate pack. In addition to overall dimensions, planning considers delivery and lifting access, the travel of the movable pressure plate, and clearance for plate removal.
This requires a new sizing calculation and an assessment of the existing frame.
The price depends on the model and configuration. Once the operating parameters have been clarified, KONTECH prepares a quotation specifying the proposed configuration, price and delivery time.
SF400 is supplied to order. Delivery time is confirmed for the selected model and configuration and specified in the quotation.
