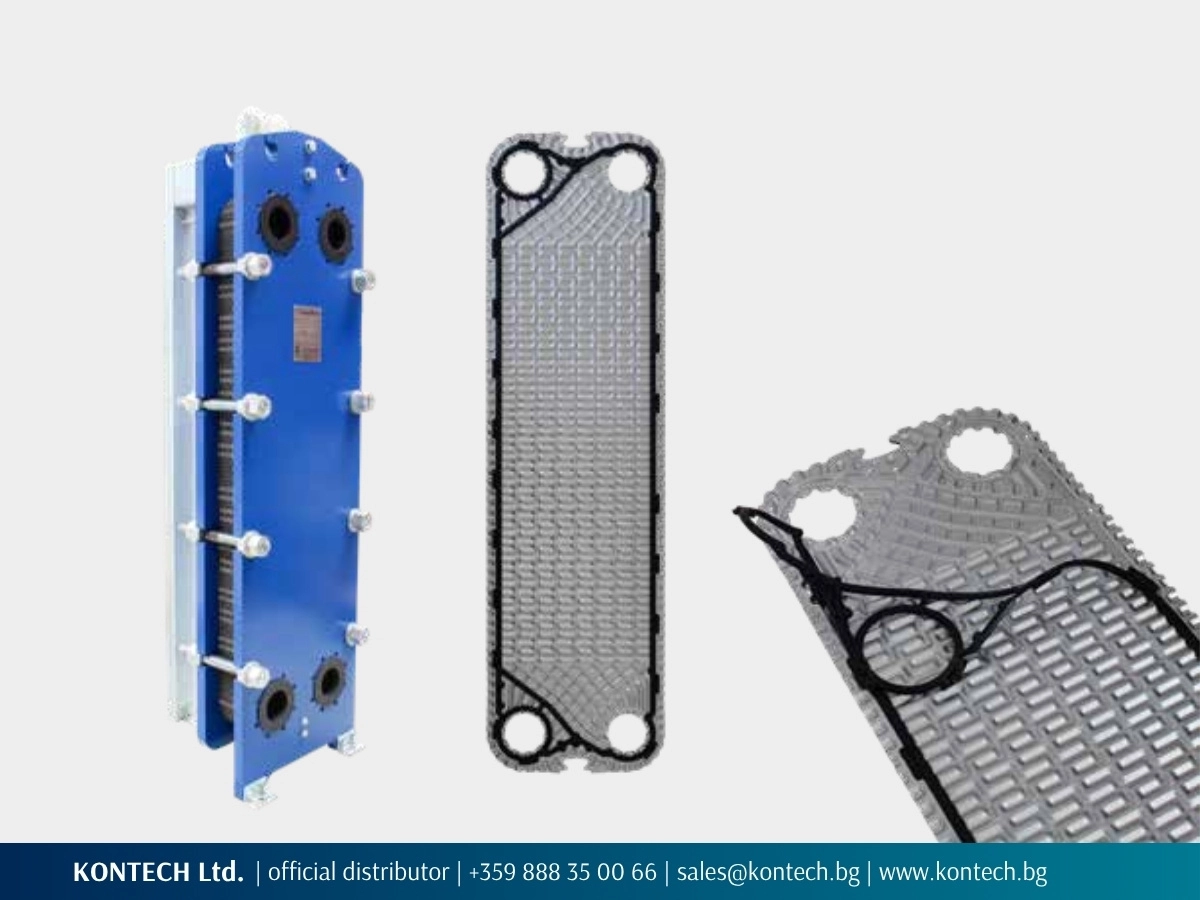

SonFlow SFF100 Free Flow plate heat exchanger for industrial applications
KONTECH supplies SonFlow SFF100 Free Flow plate heat exchangers to engineering companies, industrial contractors and OEM customers in Greece, Romania and Cyprus.
Free Flow heat exchanger for fluids with fibres and solid particles in Greece, Romania and Cyprus
The SonFlow SFF100 Free Flow plate heat exchanger is designed for fluids containing fibres, solid particles or increased viscosity. The model is part of the SonFlow Free Flow series and is used where fluid passage, service access and cleanability are important.
SFF100 is a larger model than SFF50 within the same Free Flow series. It is intended for applications where larger connection sizes are required compared to the compact model.
SFF100 is suitable for industrial process duties where standard plate heat exchangers may not always be suitable and where the fluid characteristics can increase the risk of fouling or clogging.
When to use the SFF100 Free Flow plate heat exchanger
The SFF100 Free Flow plate heat exchanger is used in applications where standard plate heat exchangers may foul faster or become difficult to maintain. With this type of construction, the main focus is fluid passage through the plate pack, uniform flow distribution and access for cleaning and service. Free Flow plates use wide channels that allow difficult media to move more freely. The wave pattern is designed without contact points in the flow direction, which supports smoother fluid passage and helps reduce mechanical retention and deposit build-up.
- Designed for CIP cleaning
- Easy assembly
- Wide channels for difficult media
- Plate geometry without contact points in the flow direction
- Uniform flow distribution across the plate
- Reduced risk of fouling, deposits and clogging
- Access for inspection and mechanical cleaning when required
Typical applications of the SFF100 plate heat exchanger
SonFlow SFF100 is used in industrial applications involving fluids with fibres, solid particles or increased viscosity.
- Dairy industry
- Food and beverage industry
- Sugar industry
- Biogas industry
- Wastewater treatment
- Pulp and paper industry
- Mining industry
Free Flow plates have wide channels that support the movement of difficult media through the heat exchanger. The wave pattern of the plates is designed without contact points in the flow direction. This helps the fluid pass more evenly and reduces the risk of mechanical retention and deposit formation.
Do you have a current project?
Availability and lead time upon request.
Key technical highlights of SFF100
- Free Flow construction with wide channels
- Smooth fluid passage through the plate pack
- Suitable for fluids with solid particles
- Suitable for fibres and increased viscosity
- Design pressure up to 10 bar
- Operating temperature up to 180°C
- Fixed bolt head
- Lifting lug
- Lining
- Lock washer
These features make SFF100 suitable for processes where fluid passage, service access and cleanability are important when handling media that may create a higher risk of fouling or clogging in standard plate heat exchanger duties.
Request a quotation for SonFlow SFF100
To prepare a quotation for the SonFlow SFF100 plate heat exchanger, please provide the available operating data for the application:
- Fluid on side 1
- Fluid on side 2
- Flow rates each side
- Inlet and outlet temperatures
- Required heat duty, if known
- Operating pressure
- Information about solid particles, fibres or viscosity
- Material requirements, if applicable
- Gasket requirements, if applicable
The specifications are used to prepare a quotation and clarify the required configuration.

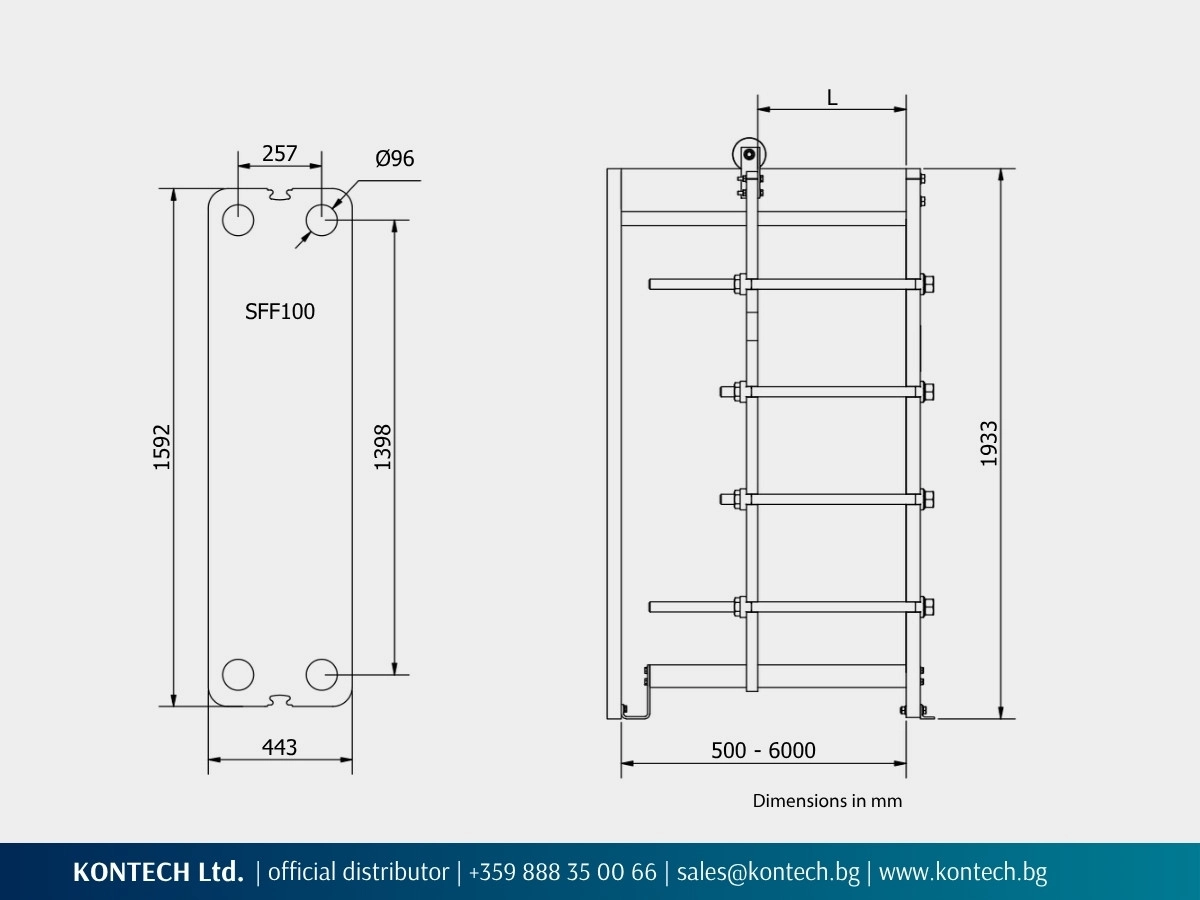

Technical specifications of SFF100
Design pressure SFF100
- Painted frames: 1.0 MPa
- Stainless steel frame: 1.0 MPa
- Maximum differential pressure: 0.6 MPa
Construction standards
- EN13445
- ASME sec VIII, Div. 1
Frame
-
Painted frame, RAL 5010 (other colours available on request)
Connections
- DN100 / 4” flange in carbon steel or rubber lined
- DN80 / 3” dairy pipes or union
- Other connection standards available on request
Plate material SFF100
- Stainless steel AISI 304
- Stainless steel AISI 316
- Titanium (Ti)
- Other materials available on request
Gaskets
- Glued gasket design
- Materials: NBR, EPDM and Viton
- Other materials available on request
Accessories SFF100
- Drip tray
- Insulation jackets
- Safety cover
- Assembling spanner
- Foundation feet
SonFlow reserves the right to change specifications without prior notification. See also Free Flow plate heat exchangers for more models within the series.
Request for quotation
Specify the main technical parameters of your project to receive a quotation for SonFlow SFF100. Fill in the available information in the form below and click “Send” to submit your inquiry.
About SonFlow and KONTECH
KONTECH Ltd. is the official distributor of SonFlow A/S.
SonFlow heat exchangers are designed in Denmark for professional HVAC and industrial applications where serviceability and reliable operation are required.
For SFF100, the focus is on industrial process applications involving fluids with fibres, solid particles and increased viscosity.
