SonFlow SFF300 Free Flow plate heat exchanger
KONTECH supplies the SonFlow SFF300 Free Flow plate heat exchanger for industrial customers in Greece, Cyprus and Romania. It is the largest model in the SonFlow Free Flow series, designed for applications involving fluids with fibres, solid particles or increased viscosity.
SonFlow SFF300 Free Flow plate heat exchanger for large industrial systems

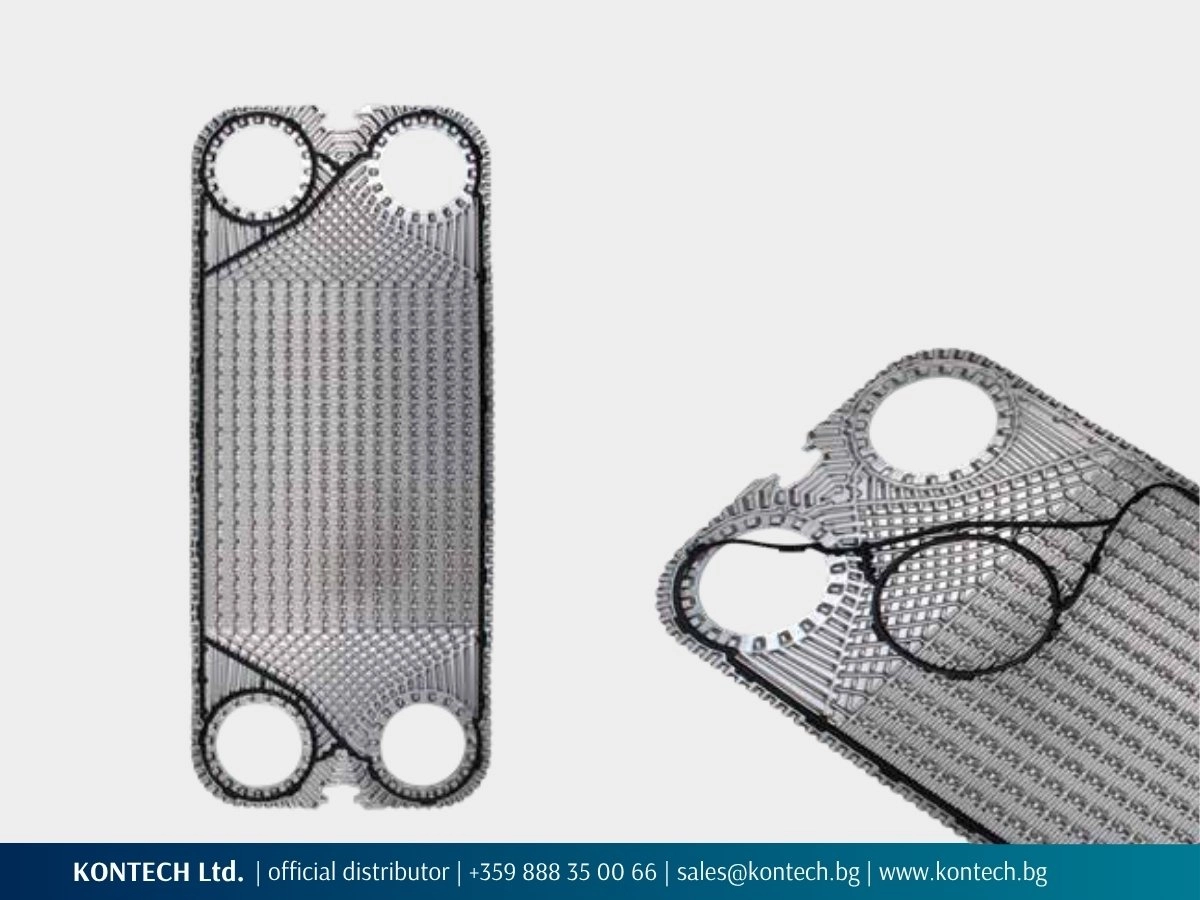

SonFlow SFF300 (SFF301) is a gasketed Free Flow plate heat exchanger with wide plate channels, designed for industrial processes involving fluids with fibres, solid particles or increased viscosity. It is suitable for applications such as fruit juice production, sugar industry, wastewater, biogas and other processes where standard plate heat exchangers may operate with a higher risk of clogging.

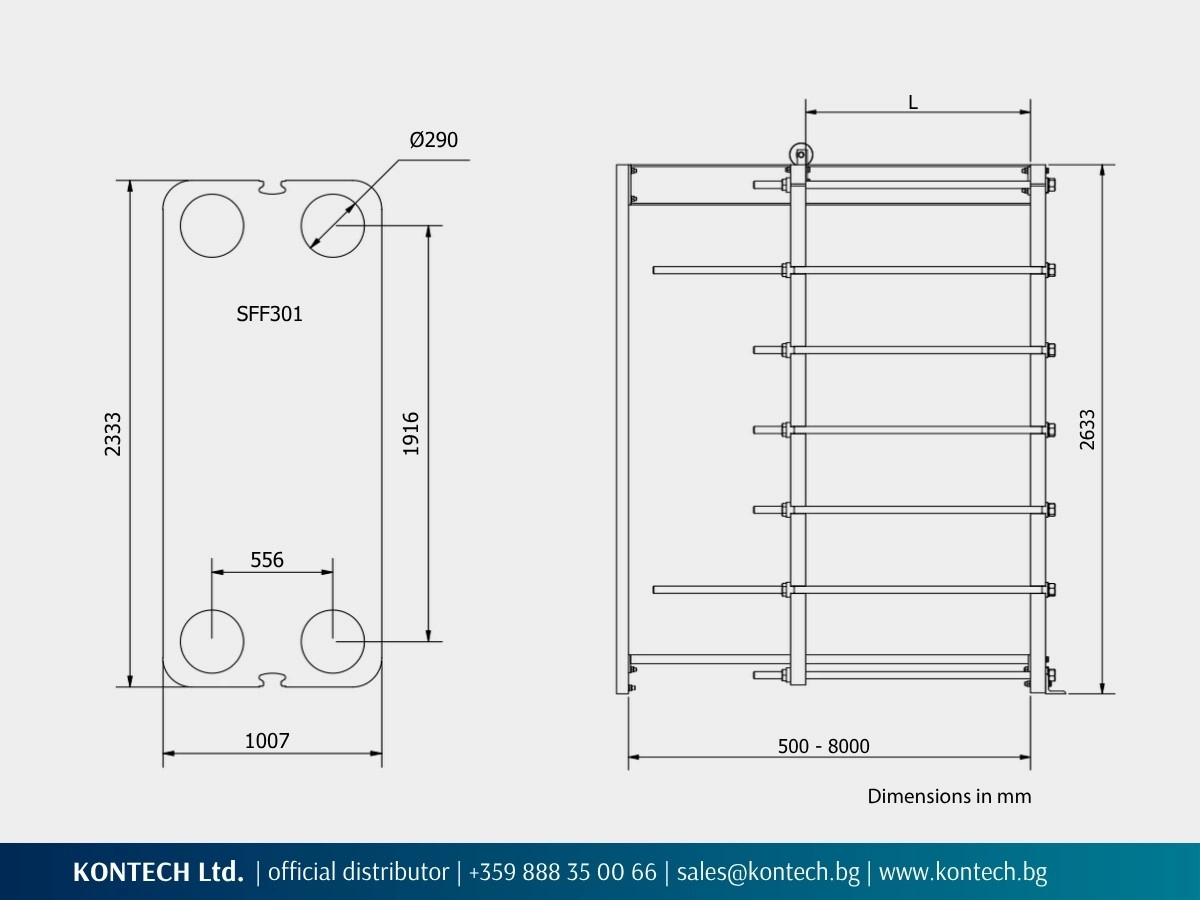

SFF301 is the largest model in the SonFlow Free Flow series. Depending on the configuration, the plate gap can be 12/6 mm or 9/9 mm and the unit is supplied with a DN300 / 12” flanged connection.
The construction is designed for gentle fluid movement, uniform flow distribution and reliable heat transfer.
Free Flow plate heat exchangers from the SFF300 series are designed in Denmark for use in industrial processes. The model is suitable for large industrial systems where larger dimensions and a DN300 connection are required. For applications with more compact dimensions, see also the other Free Flow plate heat exchanger models: SFF50, SFF100, SFF150 and SFF200.
Why customers choose the SonFlow SFF300 Free Flow plate heat exchanger
SFF300 is used in applications where the fluid contains fibres, solid particles or components that increase the risk of deposits and clogging. The Free Flow construction facilitates the passage of the medium through the heat transfer area and allows access for service when required. Main benefits:
- Suitable for fluids with fibres and solid particles
- Free Flow wide-channel construction designed to reduce clogging risk
- Inlet area designed for uniform flow distribution
- Plate geometry designed to reduce dead spots and product retention
- Construction designed to limit deposits on the plates
- Suitable for CIP cleaning
- Gasketed construction with access for inspection, cleaning and service
Typical applications of the SonFlow SFF300 plate heat exchanger
SonFlow SFF300 (SFF301) is used in industries where the operating medium contains particles, fibres or other components that may challenge the operation of standard plate heat exchangers.
- Dairy, food and beverage industry
- Milk and dairy processing
- Sugar industry
- Biogas plants
- Wastewater treatment
- Pulp and paper industry
- Mining industry
SonFlow SFF300 is the largest model in the Free Flow series. The DN300 / 12” flanged connection makes it suitable for large industrial systems processing higher fluid volumes and challenging process media.
Do you have an active project?
Receive information about availability and terms.
SFF300 main technical characteristics for industrial Free Flow applications
- Gasketed Free Flow plate heat exchanger
- SFF301 model from the SFF300 series
- Suitable for media with fibres and solid particles
- Plate gap 12/6 mm or 9/9 mm, depending on configuration
- Design pressure up to 1.0 MPa
- Operating temperature up to 180°C
- Maximum differential pressure 6 bar
- DN300 / 12” flanged connection
- Designed for CIP cleaning
These characteristics make SFF300 suitable for large industrial systems and process fluids with specific operating requirements. The construction is developed with a focus on stable operation, easier service and reduced unplanned downtime in applications with challenging process media.
Request a quotation for SonFlow SFF300
For a quotation for SonFlow SFF300, please send the main operating parameters of the application:
- Fluid on side 1, inlet and outlet temperature
- Flow rate on side 1
- Fluid on side 2, inlet and outlet temperature
- Flow rate on side 2
- Heat capacity
- Operating pressure
- Information about fibres, solid particles or viscosity
- Plate or gasket material requirements
The parameters are used to prepare a quotation.
Technical specifications of SFF300
Design pressure of SFF301
- Painted frames: 1.0 MPa
- Stainless steel frame: 1.0 MPa
- Max. differential pressure: 0.6 MPa
Frame
- Painted frame - RAL 5010 (other colours available on request)
Construction standards
- EN13445
- ASME sec VIII, Div. 1
Connections
- DN300 / 12” flanged connection
- According to all known standards
Plate material SFF301
- Stainless steel AISI 304
- Stainless steel AISI 316
- Titanium (Ti)
- Other materials available on request
Gaskets
- Choice between Hang-on or glued gaskets
- Materials: NBR, EPDM and Viton
- Other materials available on request
Accessories SFF301
- Drip tray
- Insulation
- Safety cover
- Assembly spanner
- Foundation feet
SFF300 is part of the Free Flow plate heat exchangers series for viscous and particle-containing fluids. The manufacturer reserves the right to change specifications without prior notice.
Quotation request
Please specify the main technical parameters of the project to receive a quotation. Fill in the required data in the form below and press the “Send” button.
About SonFlow and KONTECH
KONTECH is an official distributor of SonFlow A/S.
SonFlow heat exchangers are designed in Denmark and intended for professional industrial applications where serviceability and reliable operation are required.
SonFlow SFF300 is part of the Free Flow plate heat exchanger series, designed for industrial applications with challenging process fluids. The gasketed construction, wide channels and CIP cleaning capability make the model suitable for systems requiring access for service and operation with media containing fibres or solid particles.
