SonFlow SFF50 Free Flow plate heat exchanger for industrial applications
KONTECH supplies SonFlow SFF50 Free Flow plate heat exchangers to engineering companies, industrial contractors and OEM customers in Greece, Romania and Cyprus for duties involving viscous, fibrous and particle-containing fluids. The model is suitable for applications where serviceability, CIP cleaning and stable flow distribution are important.
Compact Free Flow plate heat exchanger for challenging media in Greece, Romania and Cyprus
The SonFlow SFF50 series is a gasketed Free Flow plate heat exchanger range designed for fluids that may clog standard plate heat exchangers more quickly.
SFF51 is the most compact model in the series and is suitable for installations where space is limited. It is used where the fluid contains fibres, solid particles or has increased viscosity, and where access for cleaning and service is required.
The inlet area is designed for uniform flow distribution across the plate. This supports more stable operation and helps reduce uneven deposits in applications where clogging risk is higher than in standard plate heat exchanger duties.
Why Free Flow plate heat exchangers are used in Greece, Romania and Cyprus
Free Flow plate heat exchangers are selected for applications where standard plate heat exchangers may foul faster or become difficult to maintain. In this context, SonFlow SFF50 offers a practical combination of access for cleaning, controlled flow distribution and suitability for more demanding media.
- Suitable for CIP cleaning
- Easy access for service and inspection
- Designed to reduce clogging risk
- Uniform flow distribution across the plate
- No dead zones on the plate surface
- Suitable for fluids with fibres, solids and increased viscosity
Typical applications of the SFF50
SonFlow SFF50 (SFF51) is used in industrial duties involving fluids with fibres, solids and increased viscosity. Typical industries include:
- Dairy, food and beverage industry
- Sugar industry
- Biogas industry
- Wastewater industry
- Pulp and paper industry
- Mining industry

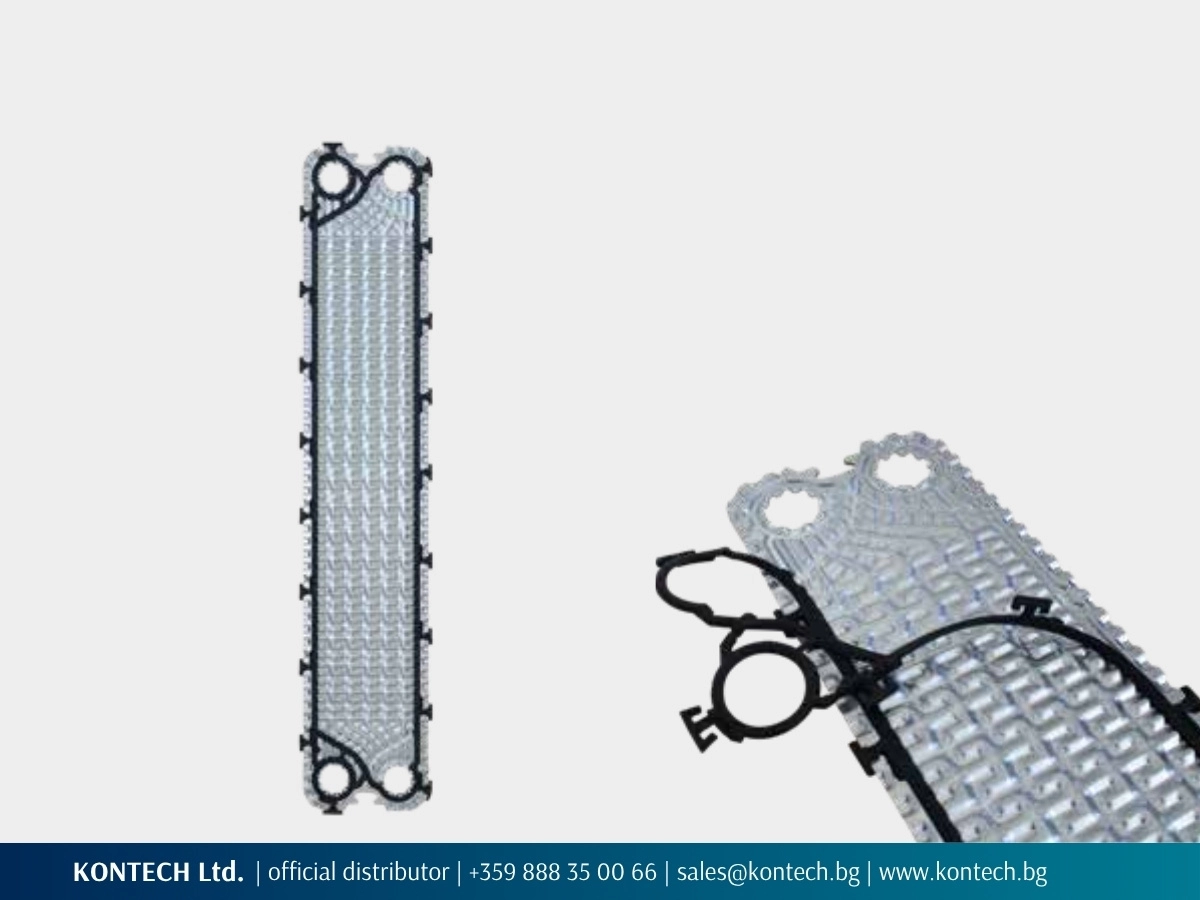

SFF51 uses plates with a specialised geometry for Free Flow duties. The wide channels allow challenging media to flow more freely, while the wave pattern is designed without contact points in the flow direction. This supports gentle product handling and helps reduce mechanical blockage and deposit build-up.
Do you have a current project?
Availability and lead time upon request.
Key technical highlights of SFF50
- Compact model within the SFF Free Flow series
- Gentle product treatment
- Designed for media with fibres and solid particles
- Design pressure up to 10 bar
- Working temperature up to 180°C
- Fixed bolts, lifting holes, lining, lock washer
- Easy access for cleaning and maintenance
- Designed in Denmark for industrial process applications
These features make SFF50 suitable for processes where cleaning, service access and reliable operation are important when handling challenging media.
Request a quotation for SonFlow SFF50
To prepare a quotation, please provide the available operating data for the application:
- Fluid on side 1
- Fluid on side 2
- Flow rates
- Inlet and outlet temperatures
- Operating pressure
- Information about fibres, solids or viscosity
- Material or gasket requirements, if applicable
The specifications are used to prepare a quotation and confirm the requested configuration.

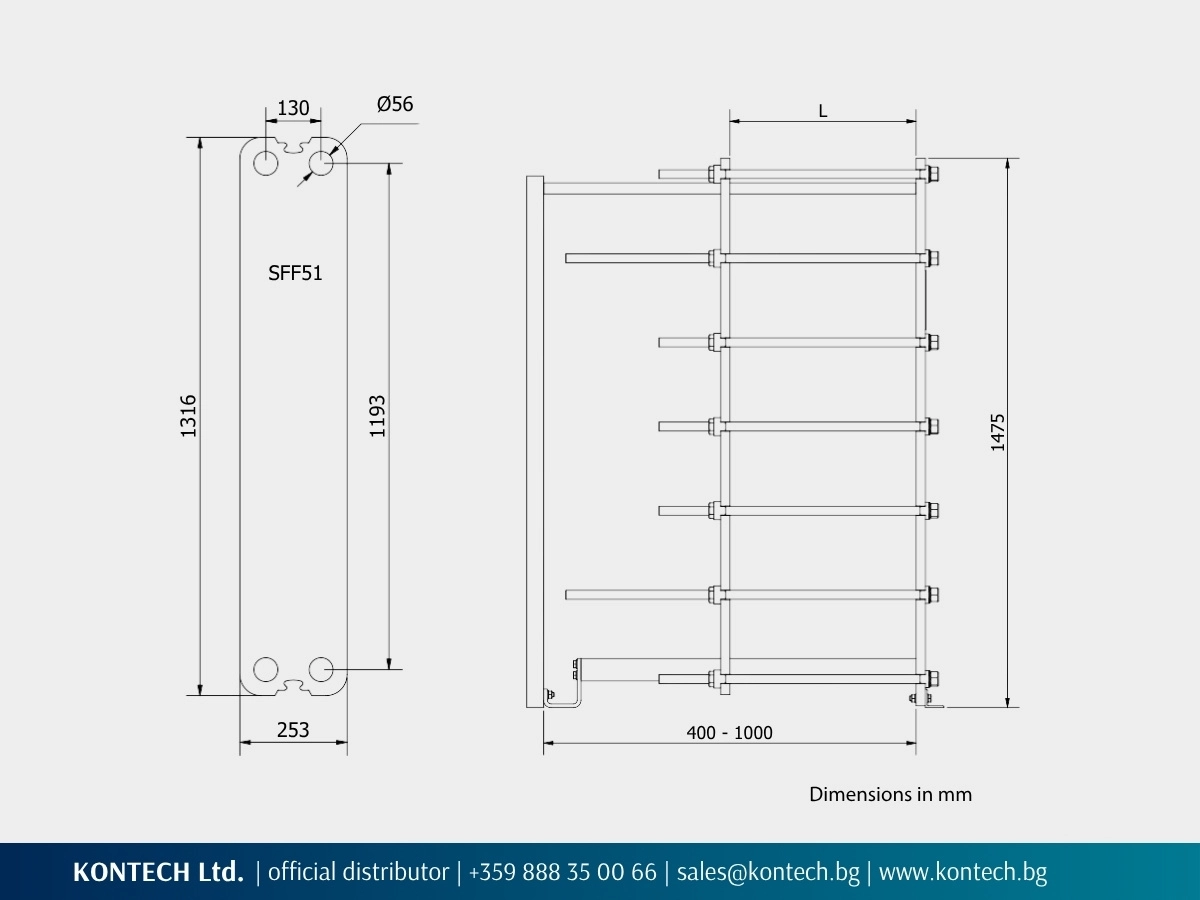

Technical specifications of SFF50
Design pressure SFF51
- Painted frame: 1.0 MPa
- Stainless steel frame: 1.0 MPa
- Maximum differential pressure: 0.6 MPa
Frame
- Painted frame, RAL 5010 (available in other colours)
Construction standards
- EN13445
- ASME sec VIII, Div. 1
Connections
- DN 50/2” flange in carbon steel or rubber lined
- DN 50/2” dairy pipes or union
- Other connection standards on request
Plate material SFF51
- AISI 304
- AISI 316
- Titanium (Ti)
- Other materials available on request
Gaskets
- Available with Hang-on or glued gaskets
- Materials: NBR, EPDM and Viton
- Other materials available on request
Accessories SFF51
- Drip tray
- Insulation jackets
- Safety cover
- Assembling spanner
- Foundation feet
SonFlow reserves the right to change specifications without prior notification. See also Free Flow plate heat exchangers for more models within the series.
Request for quotation
Specify the main technical parameters of your project to receive a quotation for SonFlow SFF50. Fill in the available information in the form below and click “Send” to submit your inquiry.
About SonFlow and KONTECH
KONTECH Ltd. is the official distributor of SonFlow A/S.
SonFlow heat exchangers are designed in Denmark for professional HVAC and industrial applications where reliable operation and serviceability are required.
If you are looking for a Free Flow plate heat exchanger for a specific application, contact us for availability and quotation.
