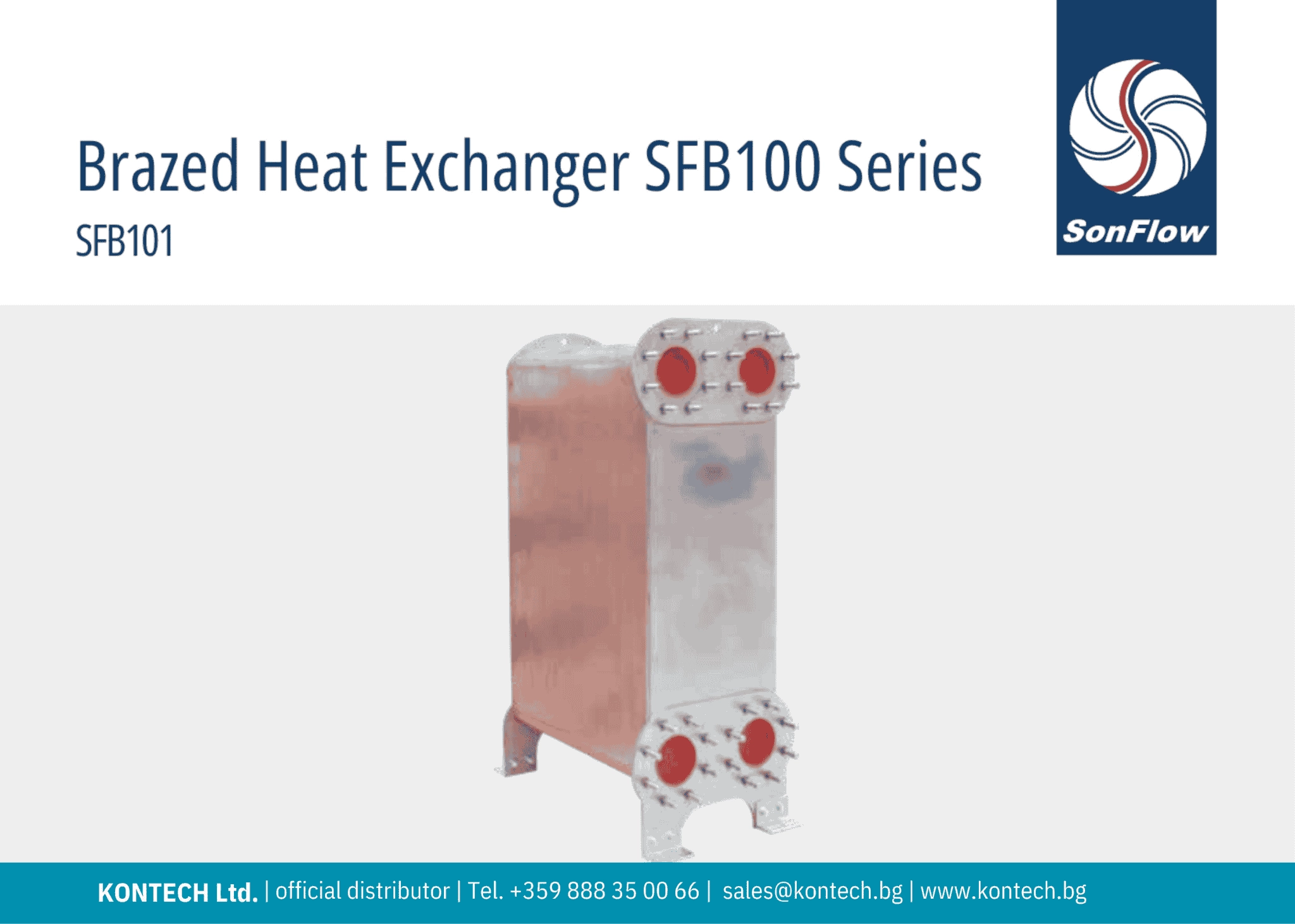

SonFlow SFB100 brazed plate heat exchanger
KONTECH is an official distributor of SonFlow A/S and supplies the SonFlow SFB100 brazed plate heat exchanger for HVAC, refrigeration, heat pump and industrial applications in Bulgaria, Greece, Romania and Cyprus. SFB101 is the largest model in the SonFlow SFB range and is available with DN100 flanged connections for a design pressure of 16 or 25 bar.
SonFlow SFB100 brazed plate heat exchanger for large HVAC and industrial systems
The SonFlow SFB100 series includes one model: SFB101. It is the largest brazed plate heat exchanger in SonFlow’s SFB product range. It is designed for professional HVAC, refrigeration, heat pump, heating, cooling and industrial systems with DN100 flanged connections, with application suitability and configuration determined by the fluids and specific operating parameters.
SFB101 is available with a design pressure of 16 or 25 bar, a temperature range from −100°C to +185°C, and TL, TM or TK plate corrugations. The DN100 flanged connections are supplied in PN16 or PN25 versions.
The copper-brazed construction has no replaceable gaskets. The heat exchanger is built from corrugated AISI 316 stainless steel plates, copper brazed in a vacuum process. The resulting plate pack provides a large heat transfer area within compact overall dimensions.
The TL, TM and TK plate corrugations provide different thermal and hydraulic characteristics, allowing selection according to the required heat duty and allowable pressure drop. The DN100 connections are available in two flange arrangements: two flanges mounted on a common oval plate (Mickey Mouse Flange) or separate Compact Flanges. The choice depends on the pipe layout and available installation space.
SFB101 can be specified for new installations or as a replacement for an existing heat exchanger when the overall dimensions, flange connections, materials and operating parameters are compatible. The model is available on request. Send us an inquiry to receive a quotation and confirmation of the delivery time.
SFB100 is part of the SonFlow brazed plate heat exchanger range.
Why B2B customers choose the SonFlow SFB100 brazed plate heat exchanger
SonFlow SFB100 is selected for applications requiring DN100 flanged connections and a compact brazed construction. SFB101 can be specified for both new systems and replacement projects when the dimensions, connections and operating conditions are compatible.
-
The copper-brazed construction has no replaceable gaskets.
-
The plates are made from AISI 316 stainless steel and copper brazed.
-
TL, TM and TK plate corrugations allow selection according to the required heat duty and allowable pressure drop.
-
DN100 flanged connections facilitate integration into larger-bore piping systems.
-
Design pressure options of 16 or 25 bar allow selection according to the system requirements.
-
The plate pack provides a large heat transfer area within compact overall dimensions.
-
An insulation jacket and foundation feet are available as optional accessories.
For applications requiring a dismountable plate pack construction, see the SonFlow gasketed plate heat exchangers.
Typical applications for the SonFlow SFB100 brazed plate heat exchanger
SonFlow SFB101 is used in professional heating, cooling and industrial systems, including:
- District heating and cooling
- HVAC systems
- Refrigeration installations
- Industrial processes
- Marine systems
- Data centres
- Heat pumps
- Solar thermal systems
- Oil cooling
- Replacement of an existing brazed plate heat exchanger
For fluids containing solids or fibres, high-viscosity media or applications with an increased risk of deposits, consider Free Flow plate heat exchangers or another heat exchanger type selected for the application.
Planning a new system or replacing a heat exchanger?
Send us your operating parameters and we will prepare a proposal for a suitable configuration.
Key technical specifications of the SonFlow SFB100
- Model: SFB101
- Type: Brazed plate heat exchanger
- Plate pack construction: Copper brazed, without replaceable gaskets
- Plate material: AISI 316 stainless steel
- Brazing material: Copper
- Design pressure: 16 bar or 25 bar
- Temperature range: −100°C to +185°C
- Connections: DN100 flanges, PN16 or PN25
- Plate corrugations: TL, TM or TK
- Flange arrangements: Two DN100 flanges mounted on a common oval plate or separate compact DN100 flanges
- Standards: EN 13445, PED 2014/68/EU and ASME Section VIII, Div. 1
- Accessories: Insulation jacket and foundation feet
These specifications provide the basic technical framework for selecting an SFB101 configuration. The final technical solution depends on the fluids, flow rates, inlet and outlet temperatures, design pressure and allowable pressure drop for the application.
Request a quote for the SonFlow SFB100 brazed plate heat exchanger
To prepare a quotation for the SonFlow SFB101, please send us the main operating parameters of your application:
-
Fluid on Side 1 and Side 2
-
Flow rate on Side 1 and Side 2
-
Inlet and outlet temperatures
-
Required heat duty, if known
-
Operating pressure
-
Allowable pressure drop
-
Design pressure, if known
-
Preferred flange arrangement
-
Whether the inquiry concerns a new system or a replacement
For replacement projects, please send a photo of the existing heat exchanger nameplate and its connections.

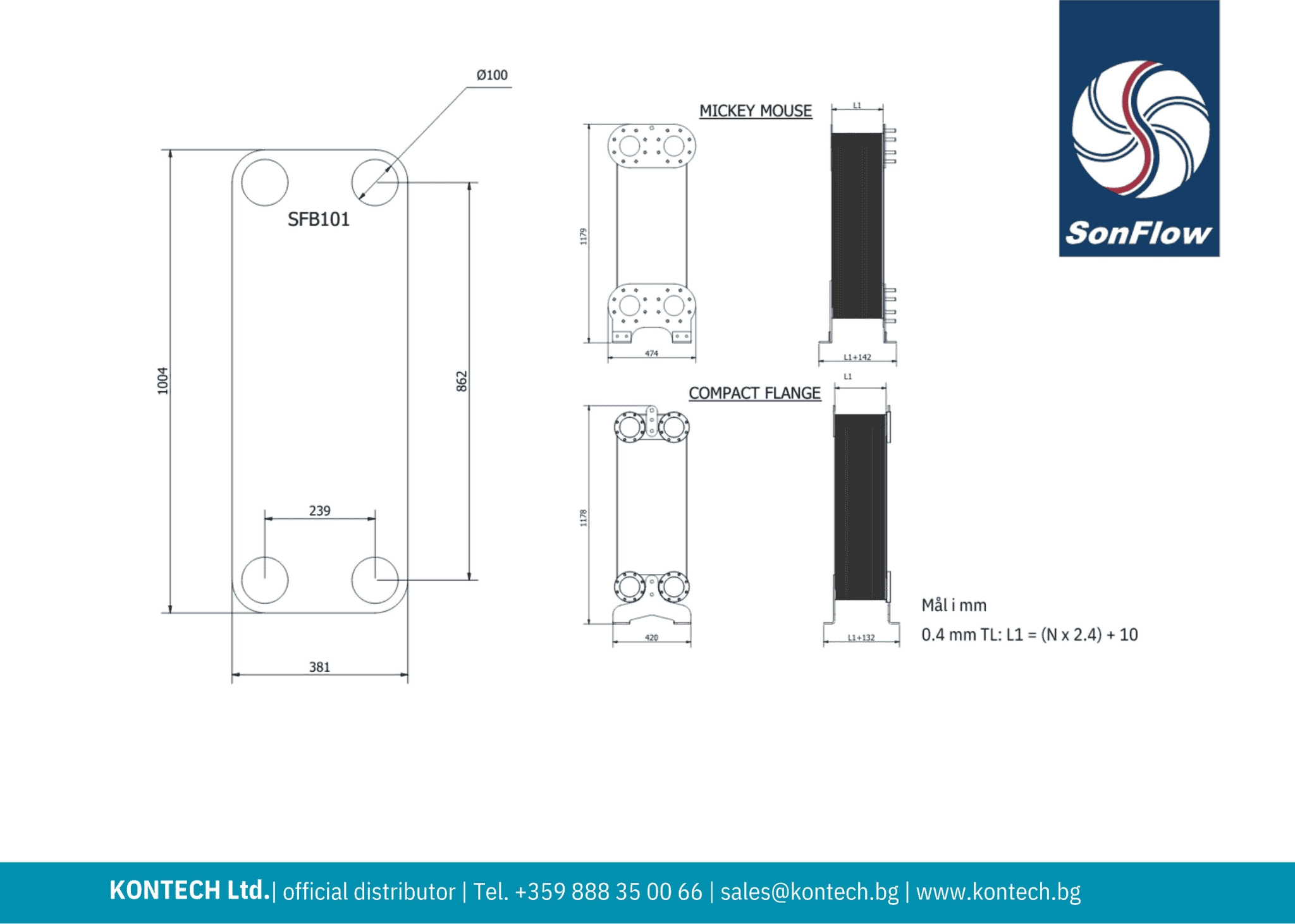

Technical drawing and main dimensions of SonFlow SFB101
SFB101 brazed plate heat exchanger with two flange connection options
SFB101 can be configured with either of two DN100 flanged connection arrangements. The appropriate arrangement depends on the piping layout and available installation space. The PN16 or PN25 connection rating is specified according to the system requirements.
The flange connections provide a secure mechanical connection to the piping system and allow the heat exchanger to be removed from the installation for inspection, flushing or service work.
Mating flanges for connection to the pipework are not included in the scope of supply.
Flanged connections on a common oval plate
The two DN100 flanged connections are formed on a common oval plate. SonFlow designates this arrangement as the “Mickey Mouse Flange”.
Separate compact flanged connections
Each DN100 connection is designed as a separate compact flanged connection. SonFlow designates this arrangement as the “Compact Flange”.
Technical data for SonFlow SFB100
| Parameter | Data |
| Heat exchanger type |
Brazed plate heat exchanger |
| Series |
SonFlow SFB100 |
| Model |
SFB101 |
| Construction |
Copper brazed, without replaceable gaskets |
| Plate material |
AISI 316 stainless steel |
| Brazing material |
Copper |
| Design pressure |
16 bar 25 bar |
| Temperature range |
from -100°C to +185°C |
| Standards |
EN 13445, PED 2014/68/EU ASME Section VIII, Div. 1 |
| Connection type |
Flanged, DN100, PN16 or PN25 PN16: 8 × M16, Ø180 mm PN25: 8 × M20, Ø190 mm |
| Number of plates |
11, 21, 31, 41, 51, 61, 71, 81, 91, 101, 111, 121, 131, 141, 151, 161, 171, 181, 191, 201, 211, 221, 231, 241, 251, 261, 271, 281, 291, 301 |
| Dimension formula |
L1 = N × 2,4 + 10 mm, where N is the number of plates |
| Main dimensions |
A: 1004 mm (A = body height) B: 381 mm (B = body width) C: 862 mm (C = vertical centre-to-centre distance) D: 239 mm (D = horizontal centre-to-centre distance) E: DN100 (connection diameter) |
| Dimensions with flanges on a common oval plate |
1179 mm (overall height); 474 mm (overall width); L1 + 142 mm (overall depth) |
| Dimensions with separate compact flanges |
1178 mm (overall height); 420 mm (overall width); L1 + 132 mm (overall depth) |
| Accessories |
Insulation jacket; foundation feet; |
The dimensions shown correspond to the SFB101 technical drawing.
The technical data are based on SonFlow A/S product information last updated in November 2025. The manufacturer reserves the right to change the specifications without prior notice.
SFB101 is available upon request. The configuration depends on the technical parameters and the application. The delivery time is confirmed in the quotation.
Other SonFlow SFB models
Q&A: Frequently asked questions about SonFlow SFB100
What is the difference between SFB100 and SFB101?
SFB100 is the product series, and SFB101 is its only model. An inquiry for SFB100 is therefore handled using the appropriate SFB101 configuration.
Is SonFlow SFB101 available from stock?
SFB101 is available on request. The required configuration is specified for the project, and the current delivery time is confirmed in the quotation.
What is the price of SonFlow SFB101?
Prices for SFB101 start at EUR 4,900 excluding VAT. This indicative B2B price does not constitute a binding offer. The final price depends on the configuration.
Which connection options are available for SFB101?
SFB101 has DN100 flanged connections rated PN16 or PN25. Two arrangements are available: connections formed on a common oval plate or separate compact flanged connections.
How are the TL, TM and TK plate corrugations selected?
The suitable plate corrugation is determined through thermal and hydraulic calculation based on the fluids, flow rates, inlet and outlet temperatures and allowable pressure drop.
How is the delivery time determined?
The delivery time is confirmed after the required configuration has been specified and the current production schedule has been checked with the manufacturer.
What data is required to select a heat exchanger?
We need data for both fluids, flow rates, inlet and outlet temperatures, operating pressure and allowable pressure drop. For replacements, also send a nameplate photo, drawing or the dimensions of the existing unit.
Can SFB101 replace an existing heat exchanger?
Replacement is possible when the dimensions, flanged connections, materials and operating parameters are compatible. Send the model or a nameplate photo and the available operating data for review.
Which applications is SFB101 suitable for?
SFB101 is the largest model in the SFB range. It is suitable for large HVAC, cooling, refrigeration and industrial systems with DN100 flanged connections, subject to fluid and operating parameter compatibility.
Request a quote
Please provide the main technical parameters of your application to receive a quotation for the SonFlow SFB101 brazed plate heat exchanger. Complete the fields below and select "SEND".
About SonFlow and KONTECH
KONTECH is an official distributor of SonFlow A/S for Bulgaria, Greece, Romania and Cyprus. We work with B2B customers on the selection and supply of plate heat exchangers for HVAC, energy, refrigeration and industrial applications.
For SFB101 inquiries, we review the operating parameters, material and connection requirements and the required plate pack configuration. Following technical clarification, we confirm the selected version, price and current delivery time.
For general product information or questions concerning a specific selection, contact us.
Heat Transfer Solutions from SonFlow A/S
More than 45 years of experience in heat transfer technology. SonFlow A/S is ISO 9001:2015 certified.
