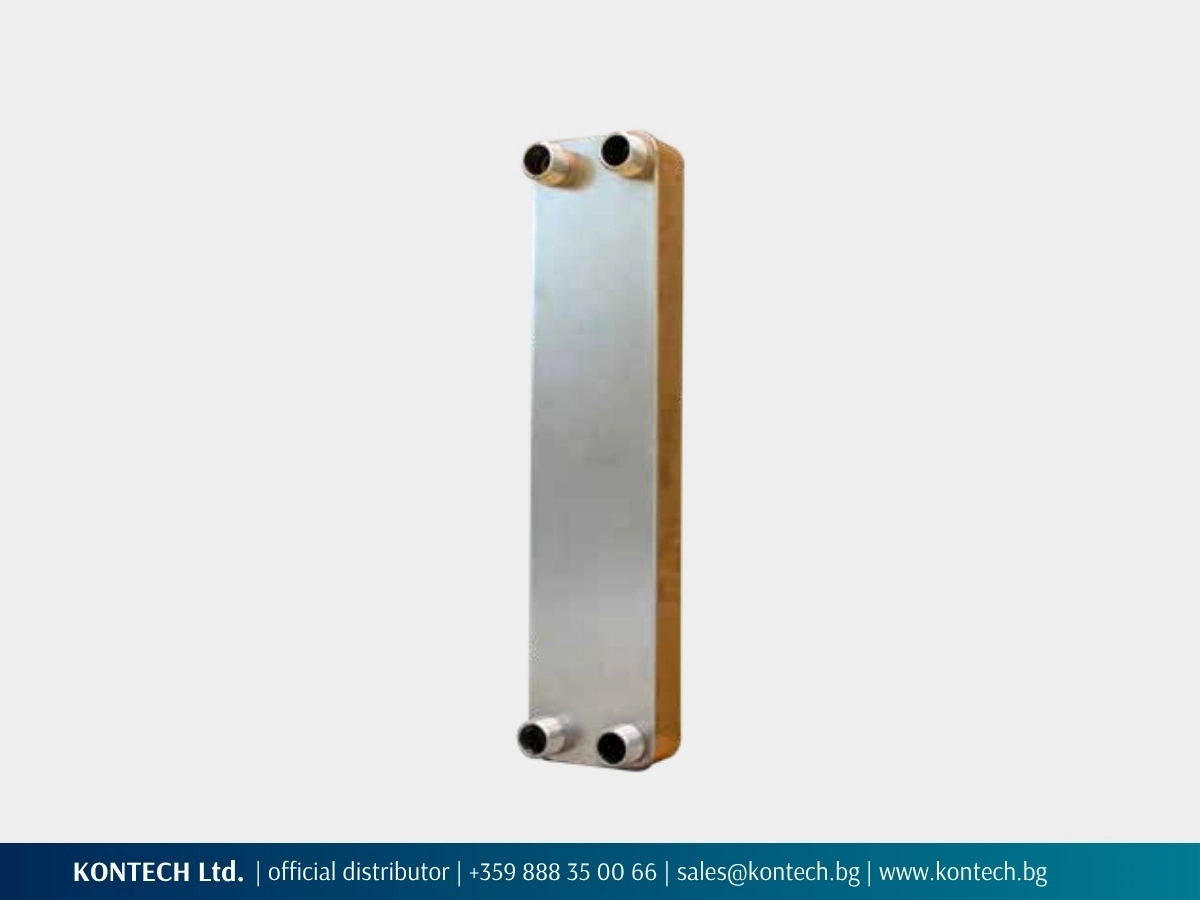

SonFlow SFB25 brazed plate heat exchanger
KONTECH Ltd. is the official distributor of SonFlow A/S for Bulgaria, Greece, Cyprus and Romania. SonFlow SFB25 is a compact brazed plate heat exchanger with AISI 316 stainless steel plates, a copper-brazed, gasket-free construction and a maximum design pressure of 25 bar. Selected configurations are available for fast delivery to customers in Greece, Romania, Cyprus and nearby regions.
Compact brazed plate heat exchanger for HVAC and industrial applications
SonFlow SFB25 is intended for professional HVAC, heat pump, heating, cooling and industrial applications with defined operating parameters and compatible fluids. The heat exchanger consists of a pack of corrugated AISI 316 stainless steel plates, vacuum-brazed with copper.
Its compact dimensions make the model suitable for installations with limited mounting space and for replacing an existing heat exchanger after the dimensions, connections and operating parameters have been checked.
The maximum design pressure of SFB25 is 25 bar. The model is available with TL, TM or TK plate patterns and different numbers of plates. Connection options include a ¾″ female pipe thread ISO7-R or a 1″ pipe thread ISO7-R. NPT threads are available on request. The suitability of SFB25 is checked according to the fluids, flow rates, inlet and outlet temperatures, required heat duty and allowable pressure drop.
Within the SonFlow SFB range, the model offers a competitive price in its size class. Prices for SonFlow SFB25 start at EUR 165 excluding VAT. The specific price depends on the number of plates, plate pattern, connection type and delivery terms.
Selected SFB25 variants are available for fast delivery. If a different number of plates, plate pattern or connection type is required, the unit can be ordered for production according to the technical parameters of the application. The indicative lead time for such an order is around four weeks.
Send an enquiry to confirm the price, current availability and delivery time for the required unit.
SFB25 is part of the SonFlow range of brazed plate heat exchangers.
SonFlow SFB25 selection and delivery advantages
SonFlow SFB25 combines compact dimensions, application-based selection and a competitive price in its size class. Its main selection and delivery advantages include:
- ompact dimensions suitable for limited mounting space and replacement of an existing heat exchanger after checking the dimensions and connections
- Different plate patterns and numbers of plates for selection according to the required heat duty and allowable pressure drop
- Threaded connection options to suit the requirements of the pipework
- Competitive pricing in this size class, starting at EUR 165 excluding VAT and depending on the number of plates, plate pattern and connection type
- Selected variants available for fast delivery
- Other numbers of plates, plate patterns or connection types can be ordered for production. The indicative lead time for such an order is around four weeks
For applications that require a serviceable construction and mechanical access to the plate pack, see the SonFlow gasketed plate heat exchangers.
Typical applications of the SonFlow SFB25
SonFlow SFB25 is used for liquid-to-liquid heat transfer with clean and compatible fluids where compact dimensions and operation under clearly defined parameters are important.
- Central heating and cooling systems
- HVAC installations
- Heat pump systems
- Refrigeration systems
- Solar thermal systems
- Oil cooling
- Marine systems
- Data centres
- Industrial processes
- Replacement of an existing heat exchanger
SonFlow SFB25 is not recommended for fluids containing solid particles or fibres, or for fluids with high viscosity or a non-homogeneous composition. For these applications, see the SonFlow Free Flow plate heat exchangers.
Have an active project?
Receive information about price, availability and delivery time.
Main technical characteristics of SonFlow SFB25
- Construction and materials: corrugated AISI 316 stainless steel plates, vacuum-brazed with copper, without replaceable gaskets
- Main dimensions: 526 × 119 mm, with length L1 depending on the number of plates
- Maximum design pressure: 25 bar
- Temperature range: from -100°C to +185°C
- Plate patterns: TL, TM or TK
- Connections: ¾″ female or 1″ pipe thread ISO7-R; NPT threads on request
- Standards and compliance: EN 13445, PED 2014/68/EU and ASME Section VIII, Div. 1
- Available accessories: insulation jackets, foundation feet and mounting brackets
The stated design pressure and temperature range are design limits of the model and are not sufficient on their own for selecting the unit. The plate pattern, number of plates and length L1 are determined according to the fluids, flow rates, inlet and outlet temperatures, required heat duty and allowable pressure drop. After the operating parameters have been reviewed, the quotation specifies the plate pattern, number of plates, connection type and corresponding length L1.
Data required for an SFB25 quotation
To receive a quotation for SonFlow SFB25, provide the main operating parameters of the application:
- Fluid on side 1 and side 2
- Flow rate on side 1 and side 2
- Inlet and outlet temperatures on side 1 and side 2
- Required heat duty, if known
- Operating pressure
- Design pressure, if known
- Allowable pressure drop
- Connection requirements
- Information on whether the heat exchanger is for a new installation or a replacement
Based on the parameters provided, we prepare a quotation for a specific heat exchanger. When replacing an existing heat exchanger, also send photographs of the nameplate and connections.

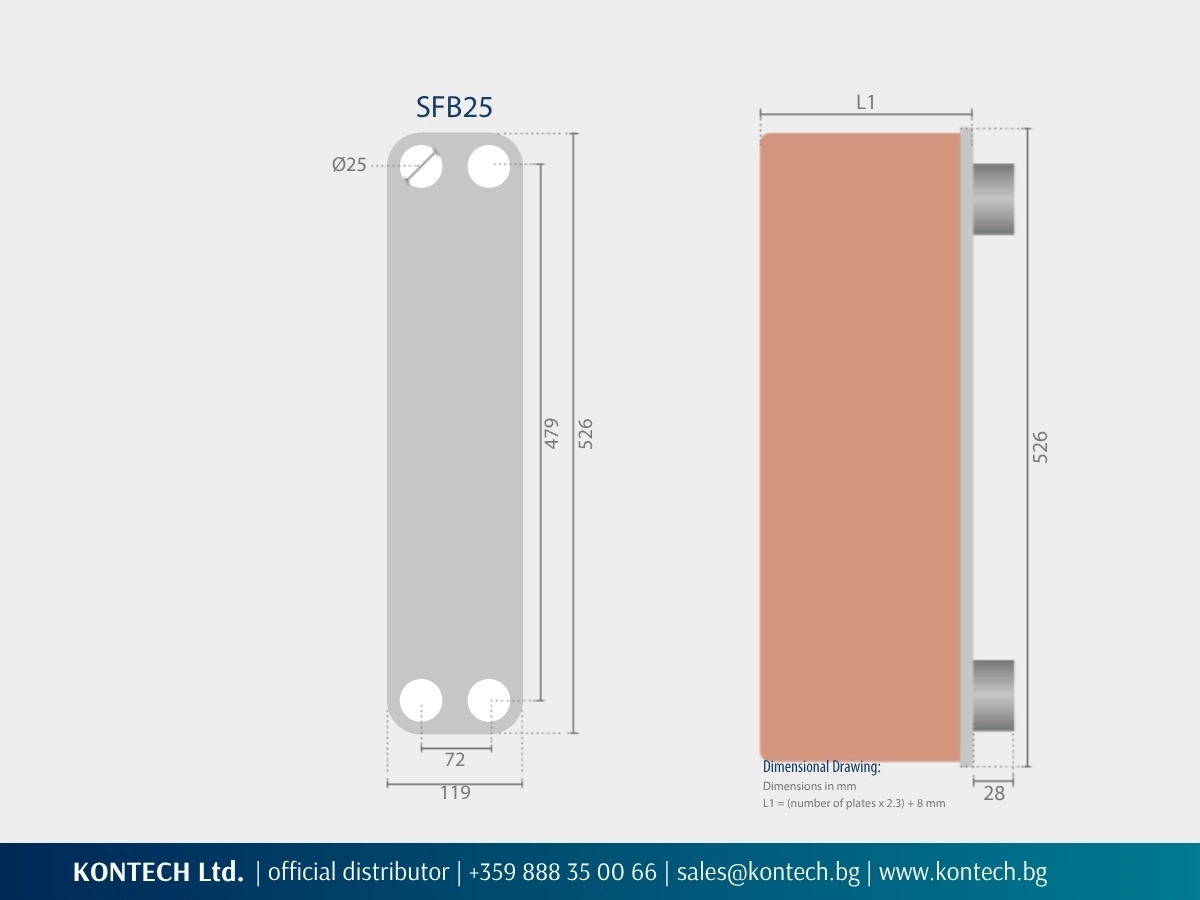

Technical drawing and main dimensions of SonFlow SFB25
Technical data for SFB25
| Parameter |
Data |
|---|---|
| Type |
Brazed plate heat exchanger |
| Series |
SonFlow SFB25 |
| Model | SFB25 |
| Construction |
Copper-brazed, gasket-free |
| Plate material |
AISI 316 stainless steel |
| Brazing material |
Copper |
| Maximum design pressure |
25 bar |
| Temperature range |
from -100°C to +185°C |
| Standards and compliance |
EN 13445, PED 2014/68/EU ASME Section VIII, Div. 1 |
| Connections |
¾” inside pipe thread ISO7-R 1” pipe thread ISO7-R NPT threads upon request |
| Number of plates |
11, 15, 21, 31, 41, 51, 61, 71, 81, 91, 101 |
| Dimensional formula |
L1 = N × 2.3 + 8 mm, where N is the number of plates |
| Main dimensions |
A: 526 mm (A = height) B: 119 mm (B = width) C: 479 mm (C = vertical centre-to-centre distance) D: 72 mm (D = horizontal centre-to-centre distance) E: 28 mm (E = connection length) |
| Accessories |
Insulation jacket Foundation feet Mounting brackets |
The data shown represents the standard technical characteristics of SonFlow SFB25.
The technical data is based on SonFlow A/S product information current as of November 2025. The manufacturer reserves the right to change the technical specifications without prior notice.
Selected SFB25 configurations are available from stock for fast delivery. If a different number of plates, plate pattern or connection type is required, the unit can be ordered for production. The indicative lead time for such an order is around four weeks. The specific price, current availability and delivery time are confirmed in the quotation.
Other models in the SonFlow SFB range
Frequently asked questions about SonFlow SFB25
What is SonFlow SFB25?
SonFlow SFB25 is a compact brazed plate heat exchanger with AISI 316 stainless steel plates and a copper-brazed, gasket-free construction.
What applications is SFB25 used for?
SFB25 is used for liquid-to-liquid heat transfer in HVAC, heating, cooling, heat pump, refrigeration and industrial systems with clean fluids.
How much does brazed plate heat exchanger SonFlow SFB25 cost?
Prices for SonFlow SFB25 start at EUR 165 excluding VAT. The stated amount does not constitute a binding quotation. The specific price depends on the number of plates, plate pattern, connections and delivery terms.
Is SFB25 available from stock and what is the delivery time?
Selected SFB25 configurations are available for fast delivery. Other configurations can be ordered for production according to the application parameters. Current availability and delivery time are confirmed in the quotation.
Is heat duty alone sufficient?
No. Heat duty alone is not sufficient to prepare a quotation for a specific heat exchanger. The fluids, flow rates, inlet and outlet temperatures, operating pressure and allowable pressure drop are also required.
What information is required for a quotation?
The required information includes the fluids, flow rates, inlet and outlet temperatures on both sides, heat duty, operating and design pressure, allowable pressure drop and connection requirements.
Can SFB25 be used to replace an existing heat exchanger?
Yes, provided that the dimensions, connections and operating parameters are compatible. When sending an enquiry, also include photographs of the existing heat exchanger nameplate and connections.
Is the SFB25 brazed plate heat exchanger suitable for contaminated fluids?
It is not recommended for fluids containing solid particles or fibres, or for fluids with high viscosity or a non-homogeneous composition. For these applications, see the SonFlow Free Flow plate heat exchangers.
Request for quotation
Provide the main technical parameters of the project to receive a quotation for a SonFlow SFB25 brazed plate heat exchanger. Complete the required information in the form below and select “Send”.
About SonFlow and KONTECH
KONTECH Ltd. is the official distributor of SonFlow A/S for Bulgaria, Greece, Cyprus and Romania.
SonFlow heat exchangers are designed in Denmark and intended for professional HVAC and industrial applications. SonFlow SFB25 is suitable for applications where compact construction, efficient heat transfer and clearly defined operating parameters are important.
The SFB25 unit is selected according to the technical parameters of the application. The specific price, current availability and delivery time are confirmed in the quotation.
Heat transfer solutions from SonFlow A/S
More than 45 years of experience in heat transfer technology. Certified products.
