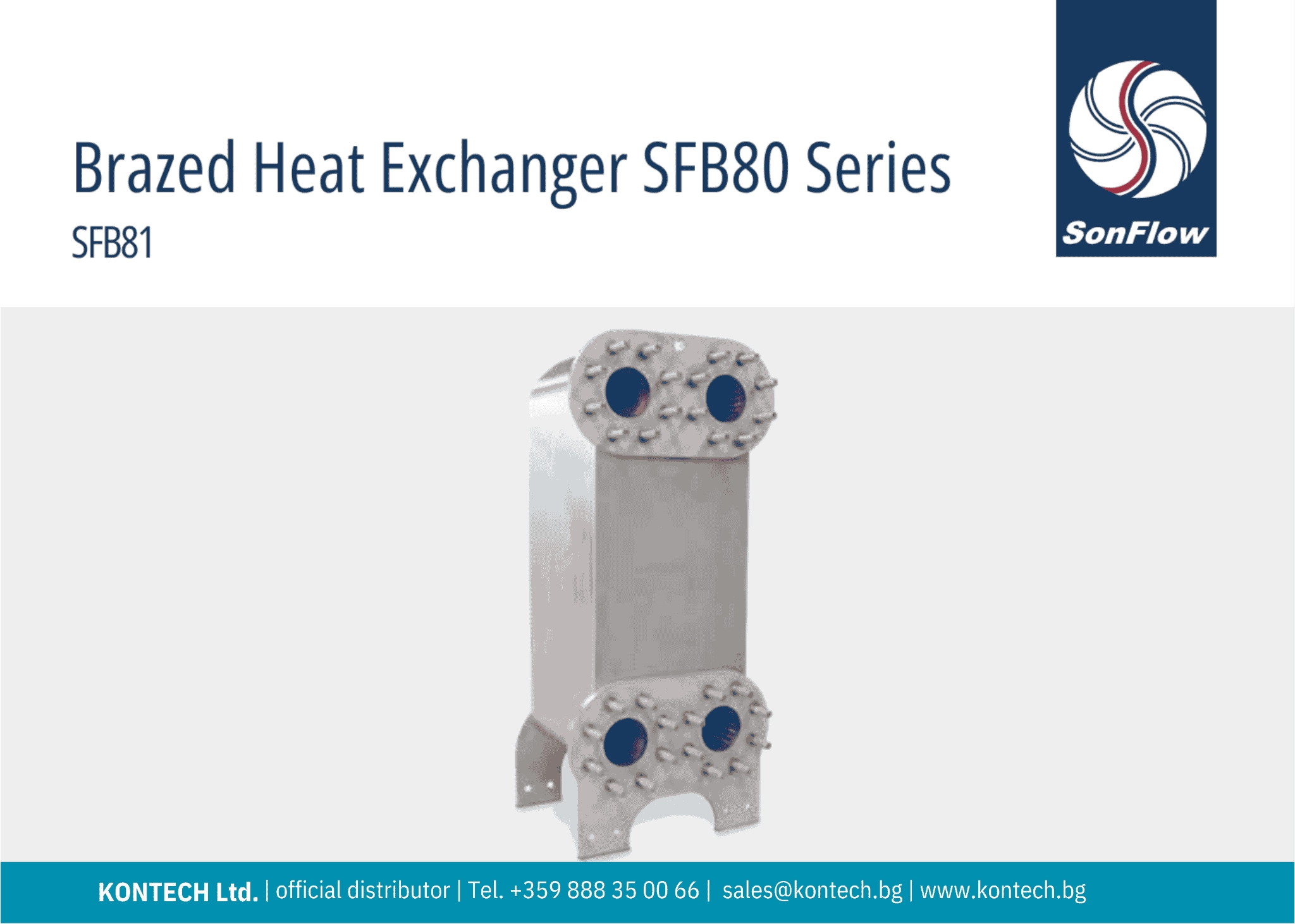

SonFlow SFB80 brazed plate heat exchanger
KONTECH is an official distributor of SonFlow A/S, supplying SonFlow SFB80 brazed plate heat exchangers for HVAC, refrigeration, heat pump and industrial applications in Greece, Romania and Cyprus. The SFB80 series consists of a single model, SFB81, with DN80 / 3″ flange connections and plate corrugation selected according to the operating conditions and heat transfer requirements.
Brazed plate heat exchanger for large HVAC and industrial systems
The SonFlow SFB80 series is part of the SonFlow range of brazed plate heat exchangers and includes the SFB81 model. It is designed for large HVAC, heating, cooling, refrigeration and industrial systems where compact dimensions and DN80 / 3″ flange connections are required.
SFB81 is available with a design pressure of 16 bar or 25 bar and TL, TM or TK plate corrugation. The configuration is selected according to the fluids, temperatures, flow rates, allowable pressure drop and flange connection requirements.
The construction uses copper brazing and has no replaceable gaskets. The heat exchanger is built from corrugated AISI 316 stainless steel plates, which are brazed with copper in a vacuum process. The resulting plate pack provides a large heat transfer surface within compact overall dimensions.
SFB81 is available with TL, TM or TK plate corrugation, selected according to the application and operating conditions. The DN80 / 3″ flange connections are available in PN16 or PN25 and can be arranged as paired connections on a common oval flange plate or as individual compact flanges. These options allow the connection arrangement to be matched to the installation requirements and piping configuration.
SFB81 can be used in both new installations and as a replacement for an existing heat exchanger when the overall dimensions, flange connections and operating parameters are compatible. The model is available on request. Send us an inquiry to receive a quotation and confirmation of the delivery time.
SFB80 is part of the SonFlow range of brazed plate heat exchangers.
Why B2B customers choose the SonFlow SFB81 brazed plate heat exchanger
SonFlow SFB81 is selected by B2B customers, design engineers and contractors for applications where compact dimensions, 3″ connections and the ability to configure the unit according to specific operating parameters are important. SFB81 is a practical choice for both new systems and replacement projects when the technical parameters, overall dimensions and connections are compatible.
- Model in the series: SFB81
- Plate corrugation: TL, TM or TK
- Flange connections: DN80 / 3″, PN16 or PN25
- Design pressure: 16 bar or 25 bar
- Temperature range: from −100°C to 185°C
- Plate material: AISI 316 stainless steel
- Brazing material: copper
- Construction: compact, with no replaceable gaskets
- Flange arrangements: paired connections on a common oval flange plate or individual compact flanges
For applications requiring a gasketed construction and mechanical access to the plate pack, see SonFlow gasketed plate heat exchangers.
Typical applications of the SFB81 brazed plate heat exchanger
The SFB81 model from the SonFlow SFB80 series is used for heat transfer between fluids in HVAC, energy, refrigeration and industrial systems.
- District heating and cooling systems
- HVAC installations
- Refrigeration systems
- Heat pump systems
- Industrial processes
- Marine systems
- Data centres
- Solar thermal systems
- Oil cooling
- Replacement of an existing heat exchanger
SFB81 is not suitable for fluids containing solid particles or fibres, fluids with high viscosity, or applications with an increased risk of clogging. For these applications, consider Free Flow plate heat exchangers or another type of heat exchanger selected for the specific application.
Planning a new system or replacing a heat exchanger?
Send us your operating parameters and we will prepare a proposal for a suitable configuration.
Key technical specifications of SonFlow SFB80
-
Model: SFB81
-
Type: brazed plate heat exchanger
-
Construction: compact, with no replaceable gaskets
-
Plate material: AISI 316 stainless steel
-
Brazing material: copper
-
Design pressure: 16 bar or 25 bar
-
Temperature range: from −100°C to 185°C
-
Flange connections: DN80 / 3″, PN16 or PN25
-
Plate corrugation: TL, TM or TK
-
Flange arrangements: paired connections on a common oval flange plate or individual compact flanges
These specifications provide the basic technical framework for selecting an SFB81 configuration. The final configuration is confirmed according to the fluids, flow rates, inlet and outlet temperatures, design pressure and allowable pressure drop for the specific application.
Request a quotation for an SFB81 plate heat exchanger
To prepare a proposal for a suitable SonFlow SFB81 configuration, please provide the main operating parameters of the application.
- Fluid on side 1 and side 2
- Flow rate on side 1 and side 2
- Inlet and outlet temperatures
- Required heat duty, if known
- Operating pressure
- Allowable pressure drop
- Design pressure, if known
- Whether the application involves a new system or a replacement
When replacing an existing heat exchanger, please send a photo of the nameplate, any available drawing and details of the flange connections.

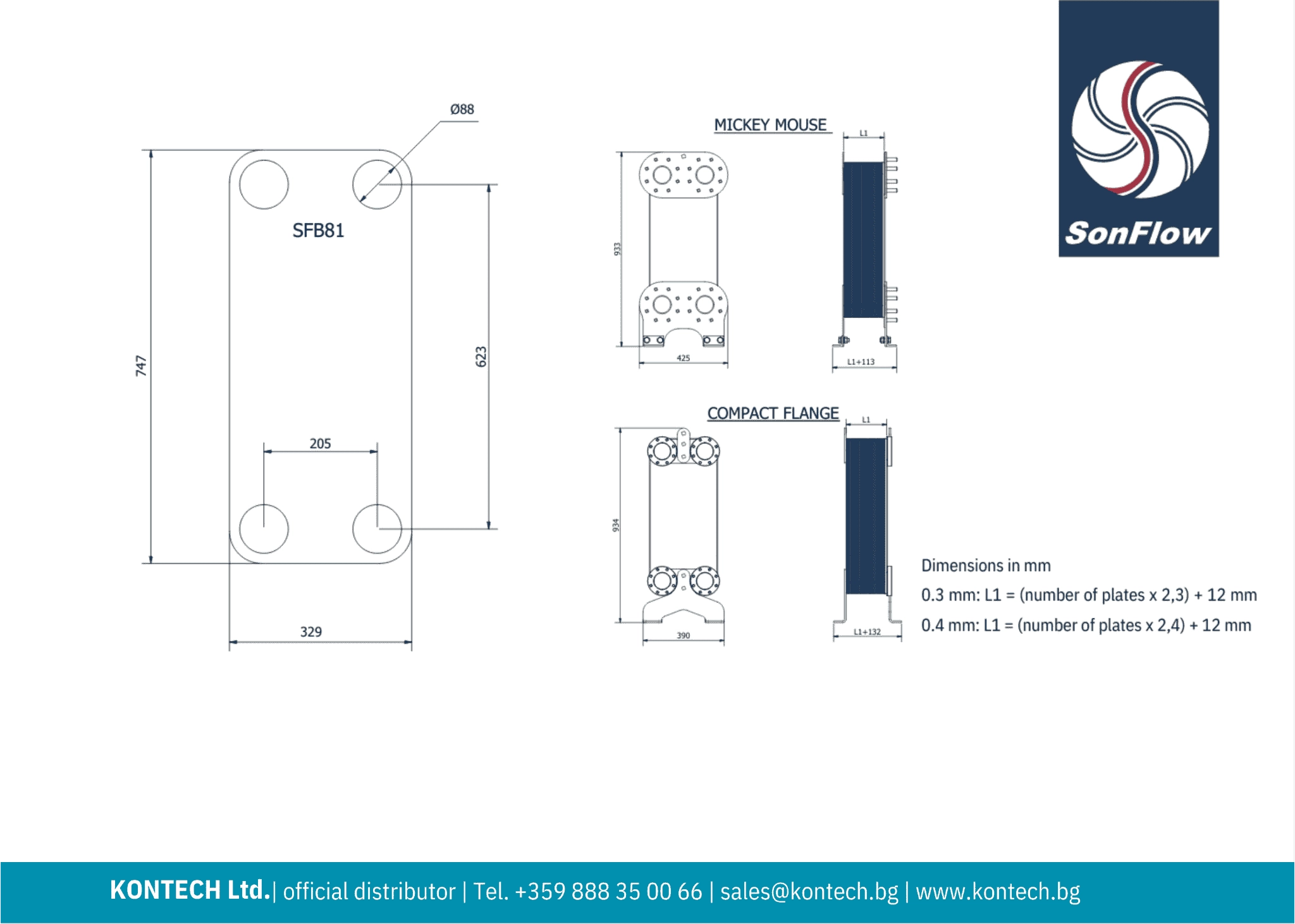

Technical drawing and main dimensions of SonFlow SFB81
Technical data for SFB80
| Parameter | Data |
| Heat exchanger type |
Brazed plate heat exchanger |
| Series |
SonFlow SFB80 |
| Model |
SFB81 |
| Construction |
Copper brazing, without replaceable gaskets |
| Plate material |
AISI 316 stainless steel |
| Brazing material |
Copper |
| Design pressure |
16 bar 25 bar |
| Temperature range |
from -100°C to +185°C |
| Standards |
EN 13445, PED 2014/68/EU ASME Section VIII, Div. 1 |
| Flange connections |
DN80 / 3″ flange PN16 |
| Number of plates |
11, 21, 31, 41, 51, 61, 71, 81, 91, 101, 111, 121, 131, 141, 151, 161, 171, 181, 191, 201, 211, 221, 231, 241, 251, 261, 271, 281, 291, 301 |
| Overall length formula |
L1 = N × 2,4 + 12 mm, where N is the number of plates |
| Main dimensions |
A: 748 mm (A = overall height) B: 330 mm (B = overall width) C: 623 mm (C = vertical centre to centre distance) D: 205 mm (D = horizontal centre to centre distance) E: Ø88 mm |
| Accessories |
Insulation jacket; Foundation feet; |
The dimensions are based on the SFB81 technical drawing.
The technical data are based on SonFlow A/S product information last updated in November 2025. The manufacturer reserves the right to change the specifications without prior notice.
SFB81 is available upon request. The configuration depends on the technical parameters and the application. The delivery time is confirmed in the quotation.
Other SFB models
Q&A: Frequently asked questions about SonFlow SFB80
What is the difference between SFB80 and SFB81?
SonFlow SFB80 is the designation of the brazed plate heat exchanger series, while SFB81 is the specific and only model in the series.
What applications is SFB81 used for?
The SFB81 heat exchanger is used in large HVAC, heating, cooling, refrigeration, heat pump, marine and industrial systems, as well as in data centres and oil cooling applications.
What flange connections are available for SFB81?
SFB81 is available with DN80 / 3″ flange connections in PN16 or PN25. The connections can be paired on a common oval flange plate or supplied as individual compact flanges.
What is the design pressure of SFB81?
SFB81 is available with a design pressure of 16 bar or 25 bar, depending on the selected configuration.
What is the temperature range of SFB81?
The temperature range of SFB81 is from −100°C to 185°C.
What plate corrugations are available for SFB81?
SFB81 can be supplied with TL, TM or TK plate corrugation.
Is SFB81 suitable for contaminated fluids?
SFB81 is not recommended for fluids containing solid particles or fibres, fluids with high viscosity, or applications with an increased risk of clogging. For these applications, a Free Flow plate heat exchanger or another solution should be considered.
Can SFB81 replace another heat exchanger?
SFB81 may be suitable as a replacement when the overall dimensions, flange connections and operating parameters are compatible. For verification, send us a photo of the nameplate, any available drawing and information about the existing connections.
What information is required for a quotation?
The required information includes the fluids, flow rates, inlet and outlet temperatures on both sides, heat duty, operating pressure, allowable pressure drop and connection requirements.
Is SFB81 available on stock?
SFB81 is available upon request. The flange arrangement, design pressure and plate pack configuration are selected according to the piping system and operating parameters.
How much does a SonFlow SFB81 cost?
The price of the SonFlow SFB81 starts at EUR 3 700 excluding VAT. This indicative B2B price does not constitute a binding offer. The final price depends on the configuration and is confirmed after technical clarification.
Can SFB81 be sized using only the required kW?
No. The required heat duty is an important parameter, but it is not sufficient to size the heat exchanger. The fluids, flow rates, inlet and outlet temperatures, operating pressure and allowable pressure drop are also required.
Request a quotation
Please provide the main technical parameters of your project to receive a quotation for a SonFlow SFB81 brazed plate heat exchanger. Complete the required fields below and click “SEND”.
About SonFlow and KONTECH
KONTECH is an official distributor of SonFlow A/S for Bulgaria, Greece, Cyprus and Romania.
SonFlow SFB80 is part of the SonFlow range of brazed plate heat exchangers. The series includes the SFB81 model with AISI 316 stainless steel plates, copper brazing and DN80 / 3″ flange connections.
The model is configured according to the operating parameters of the application and is available with a design pressure of 16 bar or 25 bar and TL, TM or TK plate corrugation.
