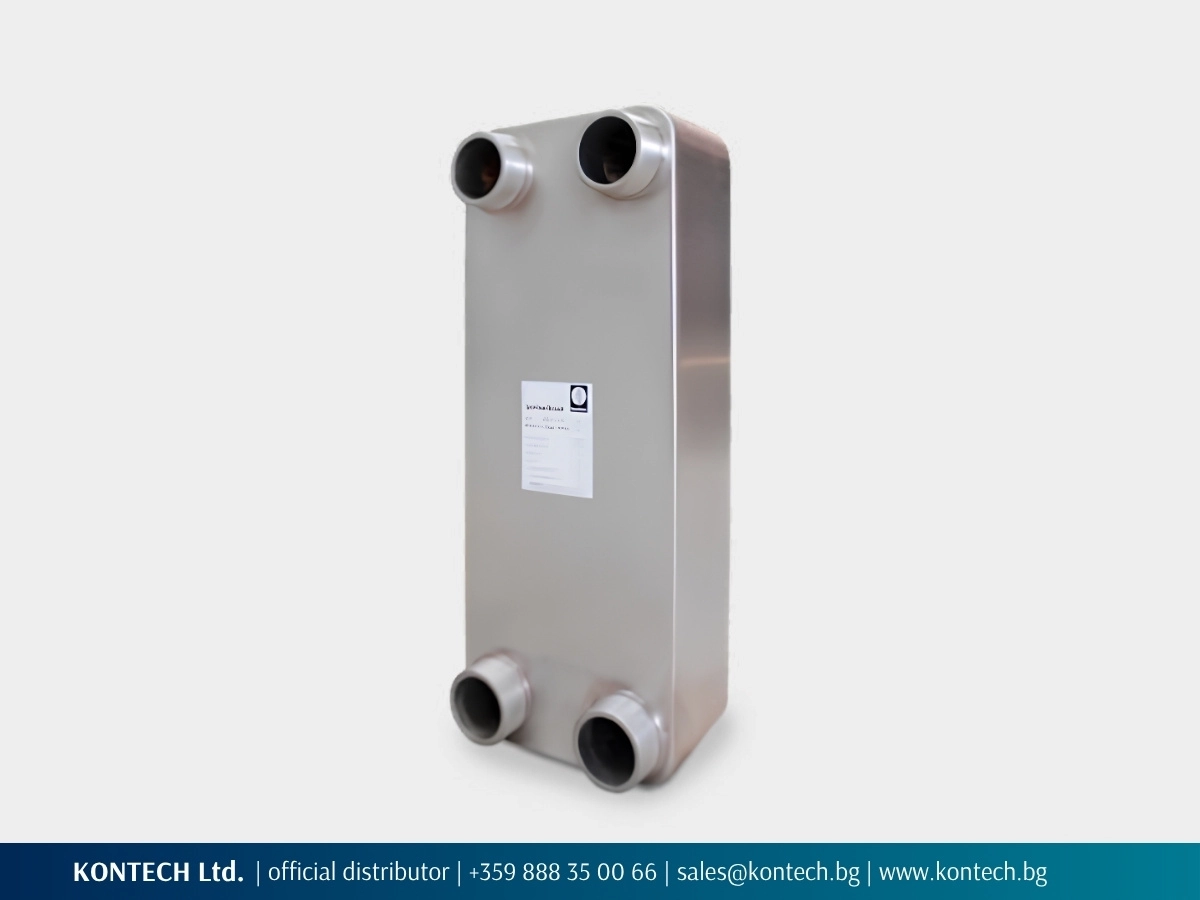

SonFlow SFB60 brazed plate heat exchanger
KONTECH, official distributor of SonFlow A/S, supplies SonFlow SFB60 brazed plate heat exchangers for professional applications in Greece, Cyprus, Romania and other EU markets. SFB60 is a SonFlow SFB series of brazed plate heat exchangers, represented by the SFB61 model. The model is used for liquid-to-liquid heat transfer where compact design, suitable configuration and operation at defined temperatures and pressures are required.
Brazed plate heat exchanger for HVAC, refrigeration, heat pump and industrial systems
The SonFlow SFB60 series is part of the SonFlow SFB range of brazed plate heat exchangers and includes the SFB61 model. The SFB61 is used for liquid-to-liquid heat transfer in professional HVAC, refrigeration, heat pump, heating, cooling and industrial applications where compact dimensions, suitable configuration and operation within defined parameters are important.
The construction is copper-brazed and gasket-free. The heat exchanger is built with corrugated AISI 316 stainless steel plates in TL, TM or TK profile options, brazed with copper in a vacuum process. This creates a compact and permanently sealed plate pack with a large heat transfer surface in relation to the overall dimensions of the unit.
Heat exchangers from the SFB60 series can be used both in new installations and for replacement of existing units. They are available with design pressure options of 16 bar, 25 bar and 40 bar, several connection types and plate profile options TL, TM or TK, depending on the application.
SonFlow SFB61 matches the overall dimensions and connection layout of SL140 under corresponding operating parameters. This makes it a practical option when replacing an existing SL140 where maintaining the existing installation dimensions and connections is required. Certain SFB61 configurations are available from stock for fast shipment. Send an inquiry to confirm current availability and lead time for the required configuration.
SFB60 is part of the SonFlow range of brazed plate heat exchangers.
Key advantages of SonFlow SFB60 brazed plate heat exchanger
SonFlow SFB61 is a brazed plate heat exchanger that combines replacement compatibility, design pressure options and several connection variants. Key characteristics include:
-
Dimensional and connection match to SL140 under corresponding operating parameters
-
Design pressure options of 16 bar, 25 bar or 40 bar
-
2” outside pipe thread ISO7-R and 2 ½” pipe thread ISO7-R connection options
-
Ø54.2 mm and Ø70.2 mm pipe connections for brazing
-
Plate profile options TL, TM or TK, depending on the application
-
Compact copper-brazed construction without replaceable gaskets
-
AISI 316 stainless steel plates
-
Operating temperature range from -100°C to 185°C
-
Suitable for HVAC, refrigeration, heat pump and industrial systems
This makes SFB61 suitable for professional applications where compact design, compatibility and clearly defined operating parameters are important. For applications that require a dismountable construction for service access, see also gasketed plate heat exchangers from SonFlow.
Typical applications of the SFB60 brazed plate heat exchanger
The SFB61 model from the SonFlow SFB60 series is used in liquid-to-liquid heat transfer applications where compact design, suitable configuration and operation at defined parameters are required.
-
District heating and cooling systems
-
HVAC installations
-
Heat pump systems
-
Refrigeration systems
-
Cooling installations
-
Solar heating systems
-
Industrial processes
-
Marine systems
-
Data centres
-
Oil cooling
-
Replacement of existing SL140 heat exchangers under compatible operating conditions
SonFlow SFB61 is not intended for fluids with solid particles, fibres or non-uniform composition. For industrial processes with contaminated, viscous or particle-containing fluids, see also Free Flow plate heat exchangers.
Do you have a project?
Get price, availability and lead time for the required configuration.
Main technical characteristics of SonFlow SFB60
-
Model: SFB61
-
Type: brazed plate heat exchanger
-
Construction: copper-brazed, gasket-free
-
Plate material: stainless steel AISI 316
-
Brazing material: copper
-
Design pressure: 16 bar, 25 bar or 40 bar
-
Operating temperature: from -100°C to 185°C
-
Connections: threaded or pipe connections for brazing
-
NPT threads available on request
-
Plate profile options: TL, TM or TK
The listed characteristics form a baseline technical framework for selecting a possible SFB61 configuration. The final execution is checked according to the fluids, flow rates, inlet and outlet temperatures, design pressure and allowed pressure drop for the specific application.
Quotation for SFB60 brazed plate heat exchanger
To receive a quotation for SFB61, please send the operating parameters of the application. For replacement of an existing heat exchanger, including SL140, please also send a photo of the nameplate.
-
Fluid on side 1 and side 2
-
Flow rate on side 1 and side 2
-
Inlet and outlet temperatures on side 1 and side 2
-
Heat duty, if known
-
Operating pressure
-
Allowed pressure drop
-
Design pressure
The provided parameters are used to check a possible configuration and prepare a specific product and commercial offer.
Technical Data for SFB60
| Parameter | Data |
| Heat exchanger type |
Brazed plate heat exchanger |
| Series |
SonFlow SFB60 |
| Model |
SFB61 |
| Construction |
Copper-brazed, gasket-free |
| Plate material |
Stainless steel AISI 316 |
| Brazing material |
Copper |
| Design pressure |
16 bar 25 bar 40 bar |
| Operating temperature range |
From -100°C to +185°C |
| Standards |
EN 13445, PED 2014/68/EU ASME Section VIII, Div. 1 |
| Connection options |
2” outside pipe thread ISO7-R |
| Number of plates |
11, 15, 21, 31, 41, 51, 61, 71, 81, 91, 101, 111, 121, 131, 141, 151, 161, 171, 181, 191, 201 |
| Dimension formula |
L1 = N × 2.5 + 9.5 mm, where N is the number of plates |
| Main dimensions |

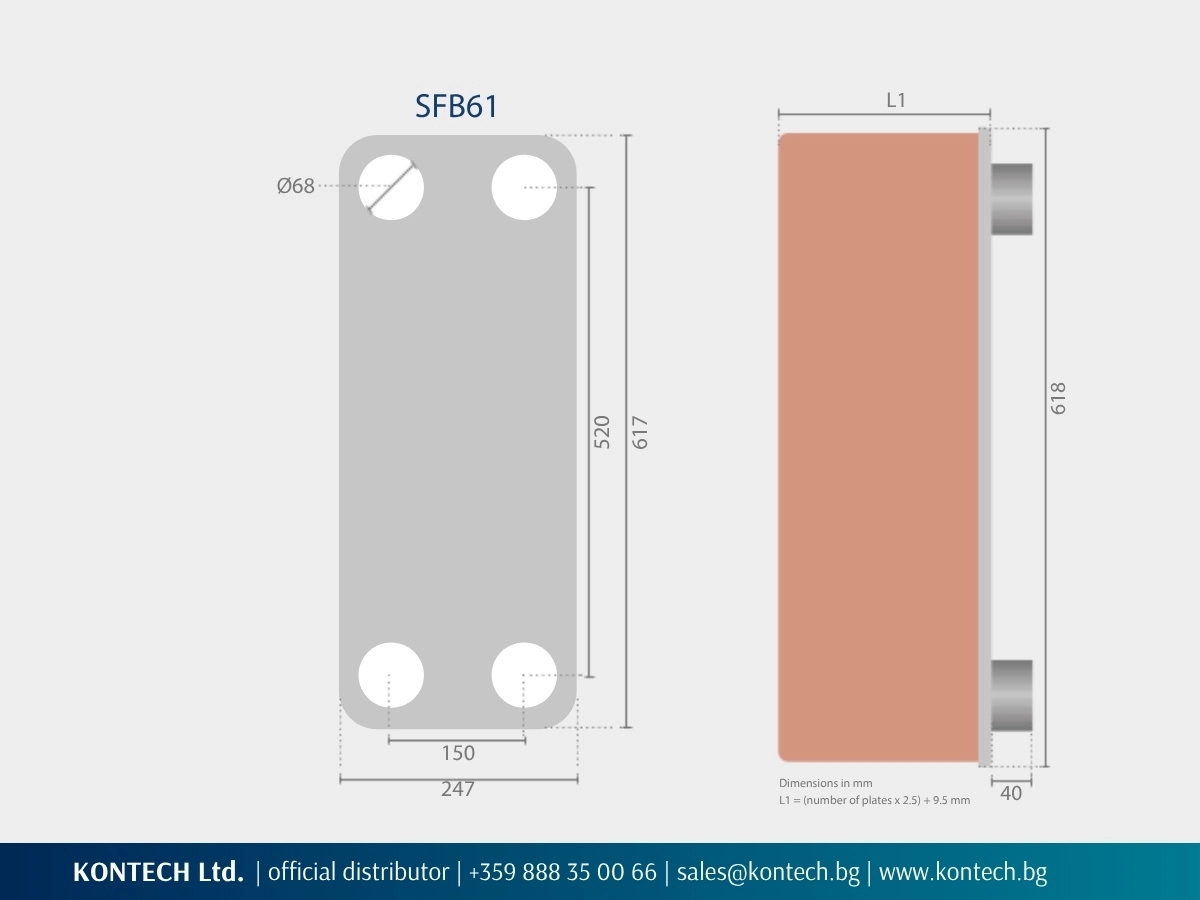

A: 617 mm (A = height) B: 247 mm (B = width) C: 520 mm (C = vertical centre-to-centre distance) D: 150 mm (D = horizontal centre-to-centre distance) E: 40 mm (E = connection length) |
| Accessories |
Insulation jackets Foundation feet |
The listed data are based on the standard technical characteristics of SonFlow SFB60.
For a specific quotation, the operating parameters, fluid type, temperature programme and connection requirements must be confirmed.
Technical data are based on product information from SonFlow A/S. The manufacturer reserves the right to change specifications without prior notice.
