SonFlow SFB30 brazed plate heat exchanger
KONTECH is an official distributor of SonFlow A/S for Bulgaria, Greece, Cyprus and Romania. The SFB30 series includes the SFB31 and SFB32 models for HVAC, heating, cooling, heat pump, refrigeration and industrial applications. Depending on the configuration and operating parameters, the units can be used for liquid-to-liquid heat transfer or as plate condensers and evaporators.

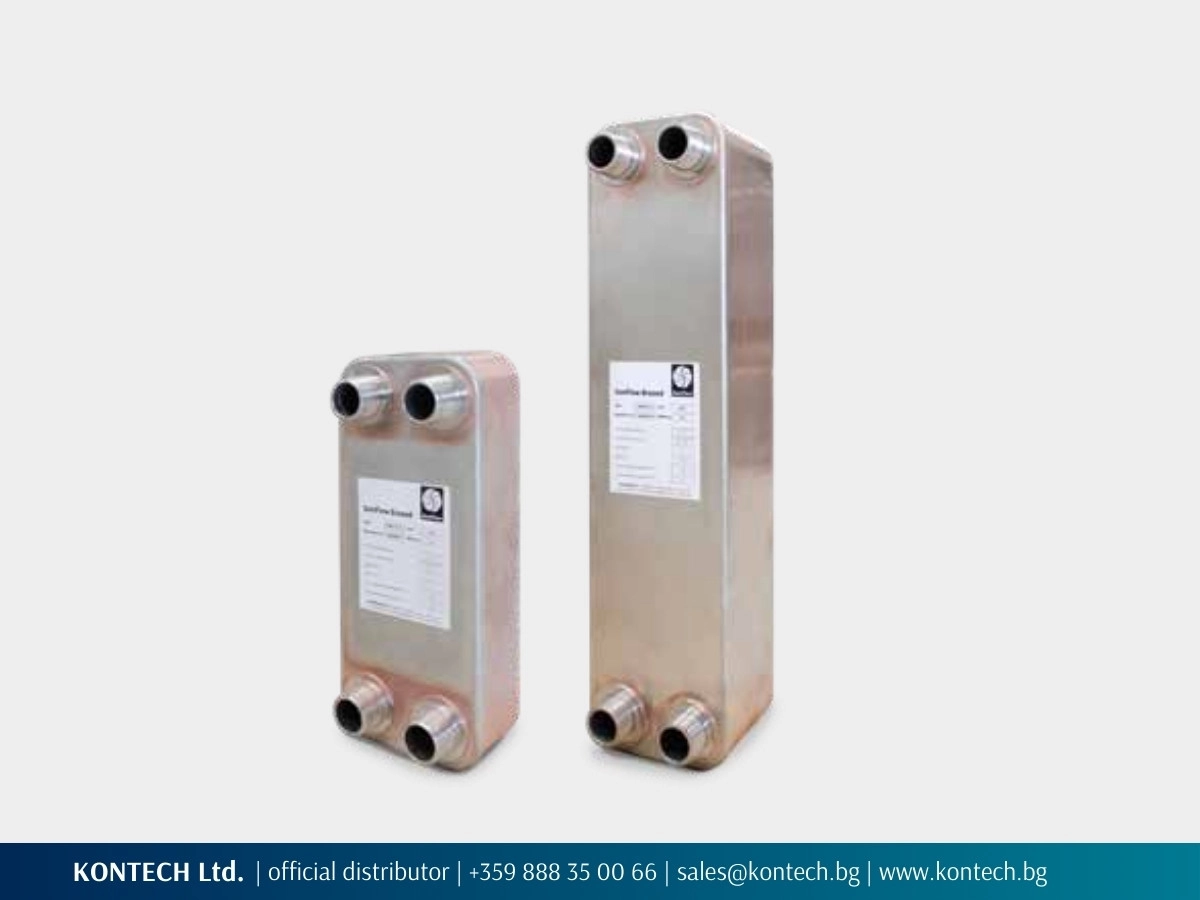

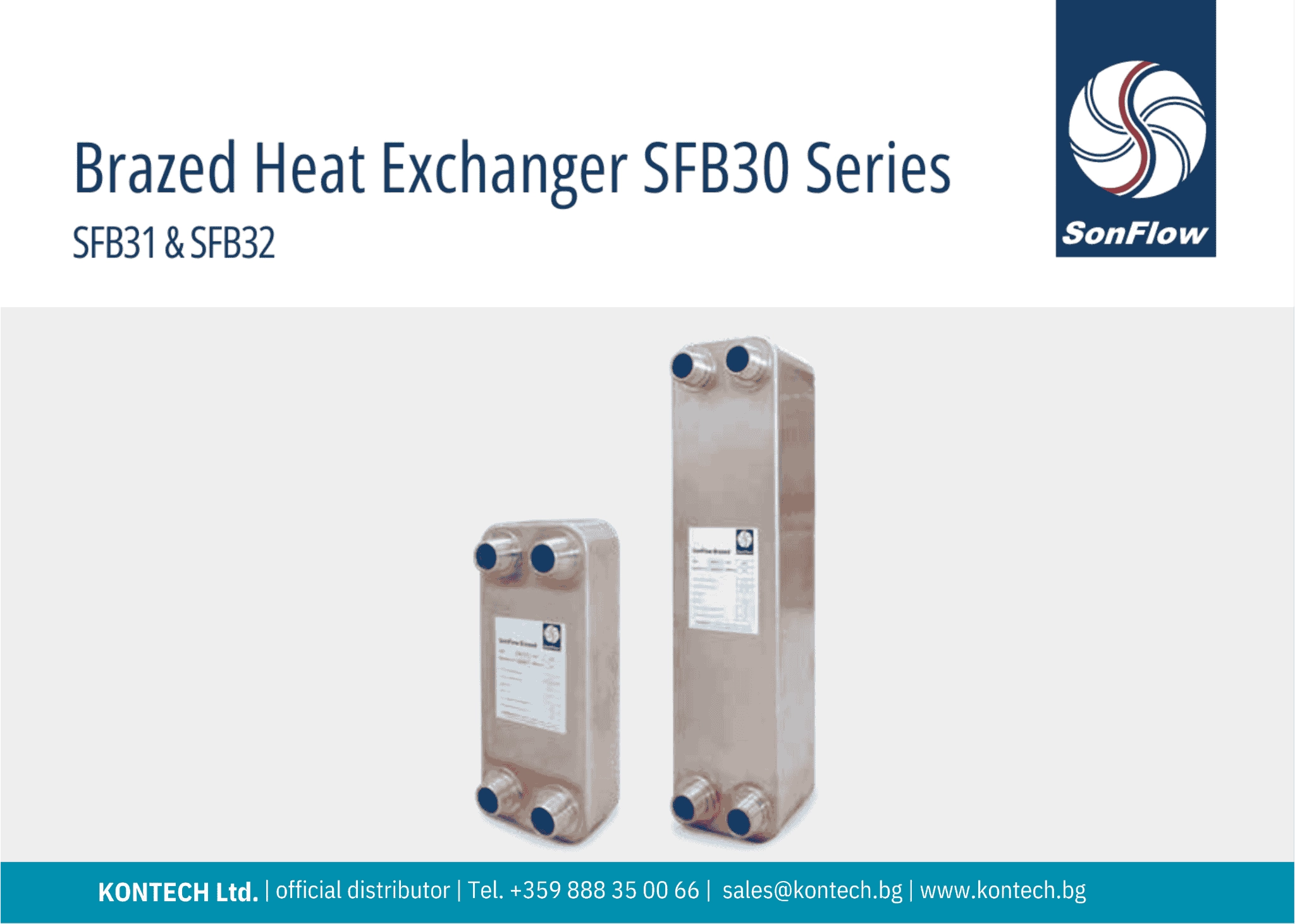

SonFlow SFB31 and SFB32 brazed plate heat exchangers
The SonFlow SFB30 series includes two standalone models: SFB31 and SFB32. They are based on two different dimensional formats and cover different heat duty, flow rate and allowable pressure drop ranges. The SFB31 is available with a TL plate profile and configurations of up to 101 plates, while the SFB32 is available with TL, TM or TK plate profiles and configurations of up to 151 plates.
The models are available with a design pressure of 25 or 40 bar, an operating temperature range from -100°C to +185°C, and different threaded or pipe connections. The specific model and configuration are determined according to the application and operating parameters.
The units feature a copper-brazed construction without replaceable gaskets. The heat exchangers are manufactured from corrugated AISI 316 stainless steel plates, brazed with copper in a vacuum process. The resulting plate pack provides a large heat transfer area relative to the overall dimensions of the unit.
The SFB31 and SFB32 are configured independently. The SFB31 is available with a TL plate profile and configurations from 11 to 101 plates. The SFB32 is available with TL, TM or TK plate profiles and configurations from 11 to 151 plates.
The SFB31 is the compact model in the series, with overall dimensions of 305 × 128 mm. Selected configurations with a design pressure of 40 bar are available for fast delivery. The model can be used for liquid-to-liquid heat transfer or as a plate condenser or evaporator, subject to verification against the specific refrigerant and operating conditions.
The SFB32 is the larger model, with overall dimensions of 509 × 128 mm, a greater available heat transfer area and a choice of three plate profiles. Selected configurations with a design pressure of 25 bar are available for fast delivery for standard liquid-to-liquid applications. Versions with a design pressure of 40 bar, including configurations for condenser or evaporator duty, are available on request.
The SFB31 is a 100% dimensional and connection equivalent to the SL34, with matching overall dimensions and port centre distances. The SFB32 is a 100% dimensional and connection equivalent to the SL70, with matching overall dimensions and port centre distances. When replacing an existing unit, the connection type, plate count, design pressure, fluids, temperature programme, heat duty and allowable pressure drop must be verified.
The price of the SonFlow SFB30 starts at EUR 250 excluding VAT. The stated price is indicative and does not constitute a binding quotation. The final price depends on the selected model and configuration and is confirmed in the quotation.
SonFlow SFB30 selection and delivery advantages
The SonFlow SFB30 series includes two technically distinct models, configured according to the application and operating parameters. The main selection and delivery advantages are:
- SFB31 with compact dimensions of 305 × 128 mm, TL plate profile and configurations of up to 101 plates
- SFB32 with dimensions of 509 × 128 mm, TL, TM or TK plate profiles and configurations of up to 151 plates
- Design pressure of 25 or 40 bar, depending on the selected configuration
- Operating temperature range from -100°C to +185°C
- Suitable configurations for liquid-to-liquid heat transfer, plate condenser duty or plate evaporator duty
- Selected 40 bar SFB31 configurations and selected 25 bar SFB32 configurations available for fast delivery
- SFB31 as a 100% dimensional and connection equivalent to the SL34, with matching port centre distances
- SFB32 as a 100% dimensional and connection equivalent to the SL70, with matching port centre distances
- Price from EUR 250 excluding VAT, with the final price depending on the selected model and configuration
- Other configurations available on request, with an indicative manufacturing lead time of around four weeks
For applications requiring mechanical access to the plate pack, see the SonFlow gasketed plate heat exchangers.
Typical applications of SonFlow SFB30 brazed plate heat exchangers
The SFB31 and SFB32 models are used in systems with defined operating parameters and fluids compatible with AISI 316 stainless steel and copper brazing.
- Central heating and cooling systems
- HVAC installations
- Heat pump systems
- Domestic hot water production
- Refrigeration systems
- Plate condensers
- Plate evaporators
- Solar thermal systems
- Oil cooling
- Data centres
- Industrial processes
- Marine systems
- Replacement of an SL34 with an SFB31
- Replacement of an SL70 with an SFB32
When used as a condenser or evaporator, the model cannot be selected on the basis of design pressure alone. The refrigerant, condensing or evaporating conditions, temperatures, heat duty, pressure and allowable pressure drop must also be verified.
For fluids containing solid particles or fibres, fluids with high viscosity, or applications with an increased risk of clogging, a SonFlow Free Flow plate heat exchanger or another heat exchanger type may be more suitable, depending on the application.
Do you have a current project?
Submit the operating parameters to receive a proposal for a suitable model and configuration, including price, availability and delivery time.
Main technical characteristics of the SonFlow SFB30
- Construction and materials: corrugated AISI 316 stainless steel plates, copper-brazed in a vacuum process, without replaceable gaskets
- Models: SFB31 and SFB32
- Overall dimensions: SFB31: 305 × 128 mm; SFB32: 509 × 128 mm
- Design pressure: 25 or 40 bar
- Operating temperature range: from -100°C to +185°C
- Plate profiles: SFB31: TL; SFB32: TL, TM or TK
- Number of plates: SFB31: from 11 to 101; SFB32: from 11 to 151
- Connections: ¾″, 1″, 1¼″ or 1½″ pipe threads in accordance with ISO 7-R; Ø22.3 mm or Ø28.2 mm pipe connections for brazing; NPT threads available on request
- Standards and compliance: EN 13445, PED 2014/68/EU and ASME Section VIII, Div. 1
- Available accessories: insulation jackets, foundation feet and mounting brackets; support frame for the SFB32
For condenser or evaporator applications, the refrigerant, condensing or evaporating temperature, refrigerant mass flow rate or required heat duty, superheat and subcooling, if known, and the operating parameters of the secondary fluid must also be verified.
Request for an SFB30 plate heat exchanger
To prepare a proposal for a suitable SFB30 model and configuration, please provide the main operating parameters:
- Intended duty: liquid-to-liquid heat transfer, condensation or evaporation
- Fluid on side 1 and side 2
- Refrigerant when the unit will operate as a condenser or evaporator
- Flow rate on side 1 and side 2
- Inlet and outlet temperatures
- Condensing or evaporating temperature
- Required heat duty
- Operating and design pressure
- Allowable pressure drop
- Preferred connection type and size
- Information on whether the unit is required for a new installation or as a replacement
When replacing an existing heat exchanger, please provide a photograph of the nameplate and any other available technical information.
The submitted parameters are used to prepare a quotation.

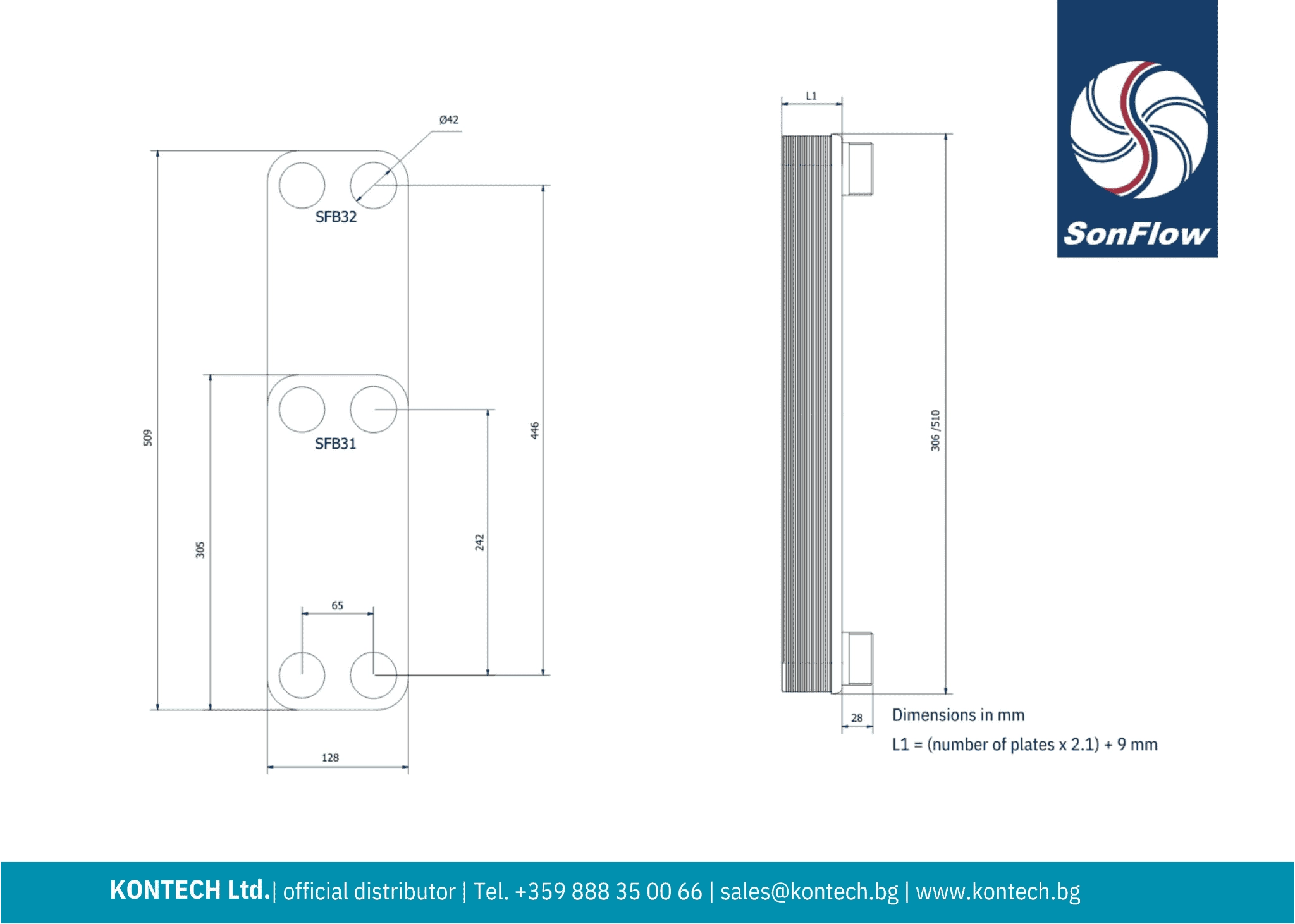

Technical drawing and main dimensions of SFB31 and SFB32
Technical data for SFB31
| Parameter | Data |
|---|---|
| Type |
Brazed plate heat exchanger |
| Series |
SonFlow SFB30 |
| Model |
SFB31 |
| Construction |
Copper-brazed, gasket-free |
| Plate material |
AISI 316 stainless steel |
| Brazing material |
Copper |
| Maximum design pressure |
25 bar 40 bar |
| Temperature range |
from -100°C to +185°C |
| Standards and compliance |
EN 13445, PED 2014/68/EU ASME Section VIII, Div. 1 |
| Connections |
¾” outside pipe thread |
| Number of plates |
11, 15, 21, 31, 41, 51, 61, 71, 81, 91, 101 |
| Dimensional formula |
L1 = N × 2,1 + 9 mm |
| Main dimensions |
A: 305 mm (A = height) B: 128 mm (B = width) C: 242 mm (C = vertical centre-to-centre distance) D: 65 mm (D = horizontal centre-to-centre distance) E: 28 mm (E = connection length) |
| Accessories |
Insulation jackets Mounting brackets |
Technical data for SFB32
| Parameter | Data |
|---|---|
| Type |
Brazed plate heat exchanger |
| Series |
SonFlow SFB30 |
| Model |
SFB32 |
| Construction |
Copper-brazed, gasket-free |
| Plate material |
AISI 316 stainless steel |
| Brazing material |
Copper |
| Maximum design pressure |
25 bar 40 bar |
| Temperature range |
from -100°C to +185°C |
| Standards and compliance |
EN 13445, PED 2014/68/EU ASME Section VIII, Div. 1 |
| Connections |
¾” outside pipe thread |
| Number of plates |
11, 15, 21, 31, 41, 51, 61, 71, 81, 91, 101, 111, 121, 131, 141, 151 |
| Dimensional formula |
L1 = N × 2,1 + 9 mm |
| Main dimensions |
A: 509 mm (A = height) B: 128 mm (B = width) C: 446 mm (C = vertical centre-to-centre distance) D: 65 mm (D = horizontal centre-to-centre distance) E: 28 mm (E = connection length) |
| Accessories |
Insulation jackets |
The stated data represents the standard technical characteristics of the SonFlow SFB31 and SFB32.
The technical data is based on SonFlow A/S product information. Last updated: November 2025. The manufacturer reserves the right to change the technical specifications without prior notice.
Selected SFB31 configurations with a design pressure of 40 bar and selected SFB32 configurations with a design pressure of 25 bar are available for fast delivery. If a different number of plates, plate profile, design pressure or connection type is required, the unit can be ordered for production. The indicative manufacturing lead time for such orders is around four weeks. The specific price, current availability and delivery time are confirmed in the quotation.
