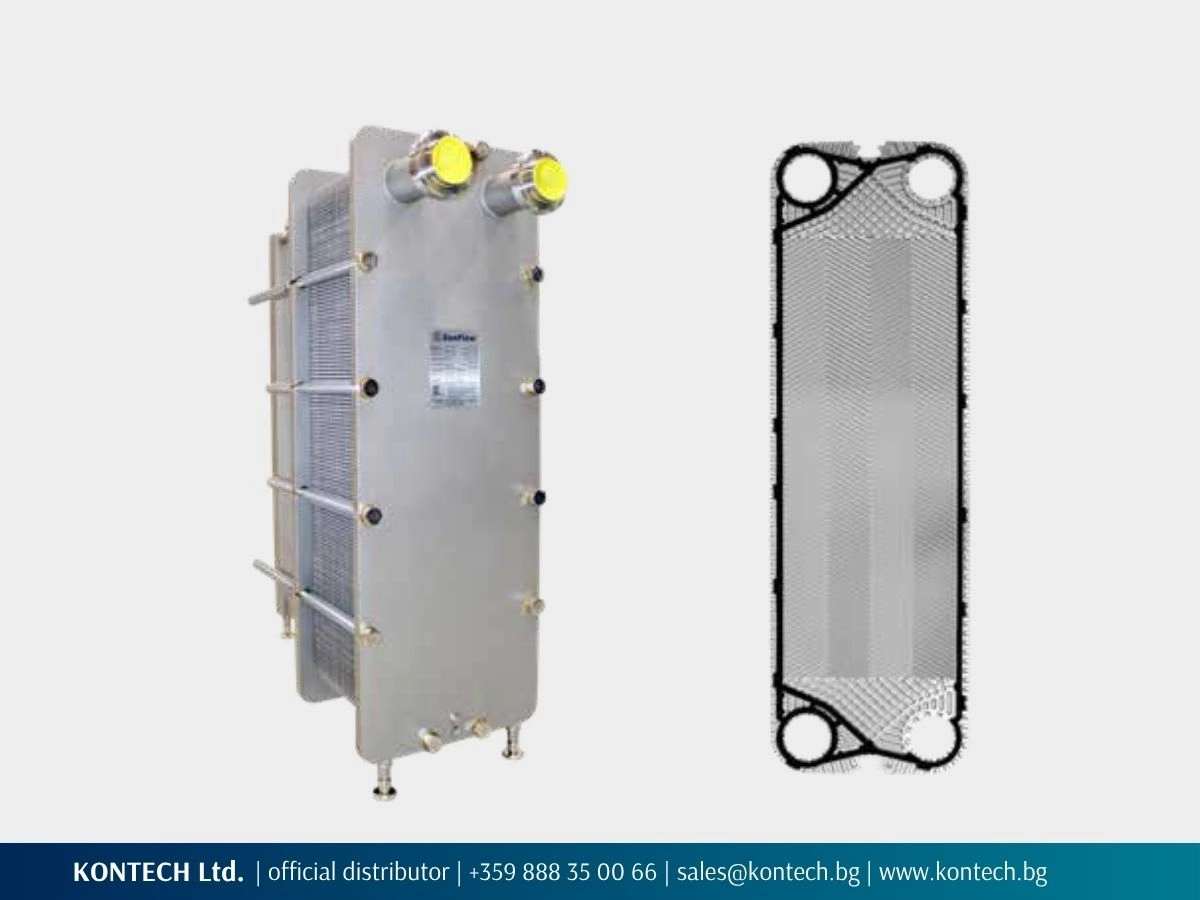

SonFlow SF80 Gasketed Plate Heat Exchanger
SF81 with DN80 connections for food processing and industrial applications
The SonFlow SF80 series comprises the SF81 gasketed plate heat exchanger with DN80 connections. Flanged connections or unions for food processing applications are available. The configuration is selected according to the fluids, flow rates, temperatures, pressures and allowable pressure drop.
The port geometry and plate corrugation are designed for gentle handling of sensitive food products. The gasketed construction provides access to the plates for inspection, cleaning and gasket replacement.
SF81
DN 80 / 3”
10 bar or 16 bar
Up to 165 °C
AISI 316 or titanium
EPDM or NBR
New heat exchanger, replacement or spare parts
Choose the option that matches your enquiry and send the information you have. If further details are needed to prepare the quotation, we will contact you to clarify them.
New heat exchanger
Send both fluids, flow rates, inlet and required outlet temperatures, operating pressure and allowable pressure drop. For food processing, specify connection and cleaning requirements.
PHE replacement
Send a photo of the existing unit’s nameplate, photos of the connections and the available operating data. We will assess whether SonFlow SF81 or another series can be used as a replacement.
Plates and gaskets
Send the model, serial number, number of plates and photos of the nameplate or plate. For gasket selection, specify the operating fluids, temperatures and cleaning agents.
SF81 model in the SonFlow SF80 series
SF81 is the model in the SonFlow SF80 series. The plate dimensions are 380 × 1211 mm, with a horizontal port centre distance of 238 mm and a vertical port centre distance of 1070 mm.
The overall frame height shown in the drawing is 1447 mm. The unit length depends on the frame and plate pack. The number of plates is determined by thermal and hydraulic sizing.
Allow sufficient space to open the unit and access the plates for maintenance.
SF81 · plate 380 × 1211 mm
When to consider SonFlow SF80
KONTECH recommends considering SonFlow SF80 for heat exchange between a liquid food product and a heating or cooling fluid when DN80 connections and access to the plates for maintenance are required. The port geometry and plate corrugation are designed for gentle handling of sensitive products.
SF81 can also be considered for HVAC and industrial applications. Selection takes account of fluid composition and viscosity, required thermal duty and allowable pressure drop. Food processing applications also require clarification of cleaning requirements and materials in contact with the product.
The gasketed construction allows plate inspection and mechanical cleaning. If the operating conditions change, the possibility of adding plates can be assessed.
Typical applications of SonFlow SF80
- Food and beverage processing: heating and cooling liquid food products with a configuration selected according to the product and cleaning method.
- Dairy processing: heat exchange between the liquid product and the heating or cooling fluid according to process conditions and cleaning requirements.
- HVAC and refrigeration systems: heat exchange between water or water-glycol circuits under suitable operating conditions.
- Industrial processes: heating and cooling process fluids compatible with the selected plates and gaskets.
- Chemical processing: applications assessed according to fluid composition and material compatibility.
When to consider another series
For food processing applications with DN50 connections, consider SonFlow SF70. Selection between SF70 and SF80 depends on operating conditions and connection requirements.
For fluids containing particles or fibres, or fluids with elevated viscosity, the suitability of a Free Flow plate heat exchanger is assessed.
If the application requires different dimensions or a different configuration, consider the other SonFlow gasketed plate heat exchangers.
For clean fluids where access to the plates for mechanical cleaning is not required, SonFlow brazed plate heat exchangers may be considered.
Configuration according to fluids and operating conditions
Plates
SonFlow SF81 is supplied with plates in AISI 316 stainless steel or titanium. The material is selected according to fluid composition, temperatures and corrosion resistance requirements.
Frame
A painted frame or stainless steel frame is available according to the application, with a design pressure of 10 or 16 bar. The frame construction is selected according to process requirements and confirmed in the quotation.
Gaskets

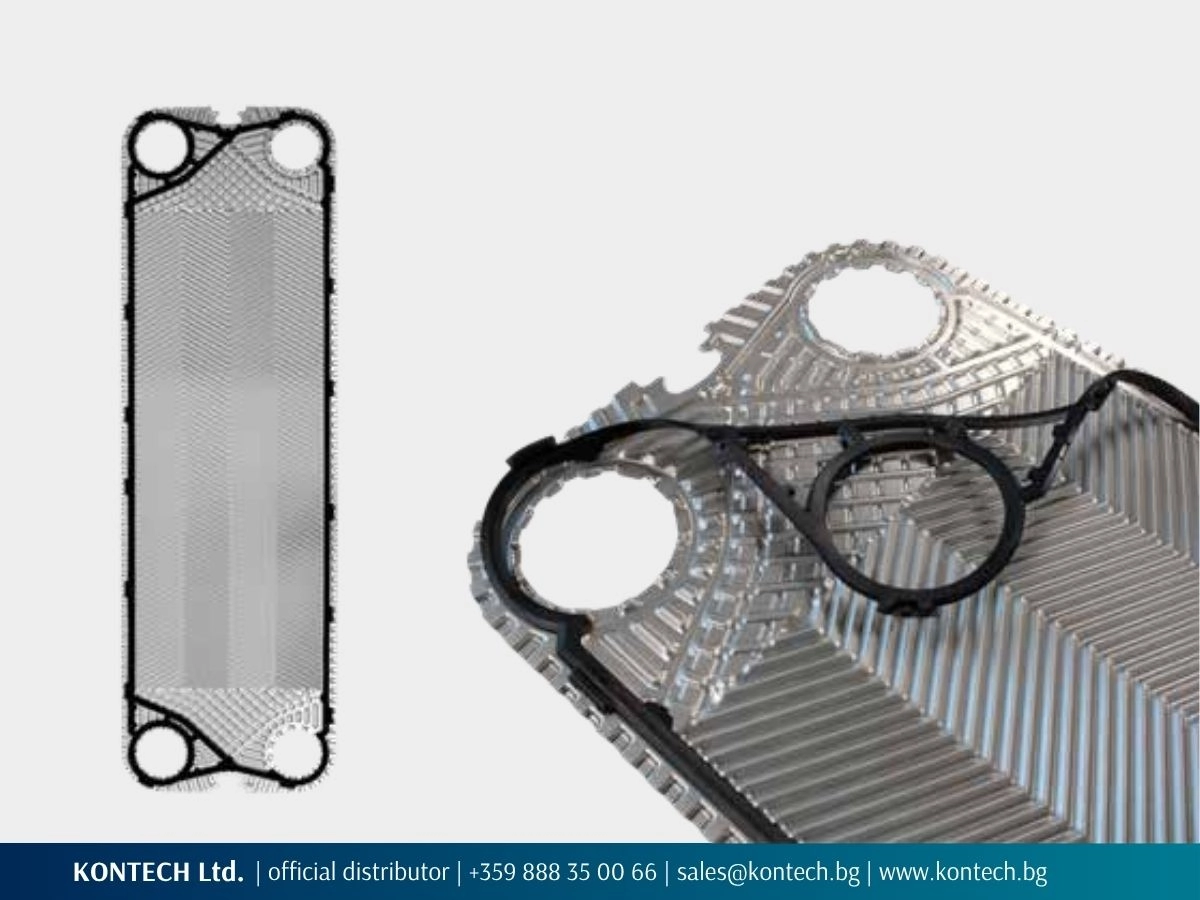

Hang-on gaskets in NBR or EPDM are mechanically attached without adhesive. The material is selected according to the operating fluids, temperatures and cleaning agents.
Connections
DN80 flanged connections or unions for food processing applications are available. The connection type, standard and dimensions are specified according to the piping system and process requirements. Mating pipe flanges are not included in the supply.
Information required for a quotation
For a new selection
- Fluid on side 1 and side 2
- Flow rate on both sides
- Inlet and outlet temperatures
- Thermal duty, if known
- Operating and design pressures
- Allowable pressure drop
- Material and connection requirements
- Available space for installation and maintenance
- For food products: composition, viscosity and presence of particles
- For CIP cleaning: cleaning agents, concentrations and temperatures
For a replacement
- Photo of the existing unit’s nameplate
- Manufacturer, model and serial number
- Overall dimensions and connection details
- Available operating data
- Reason for replacement, if known

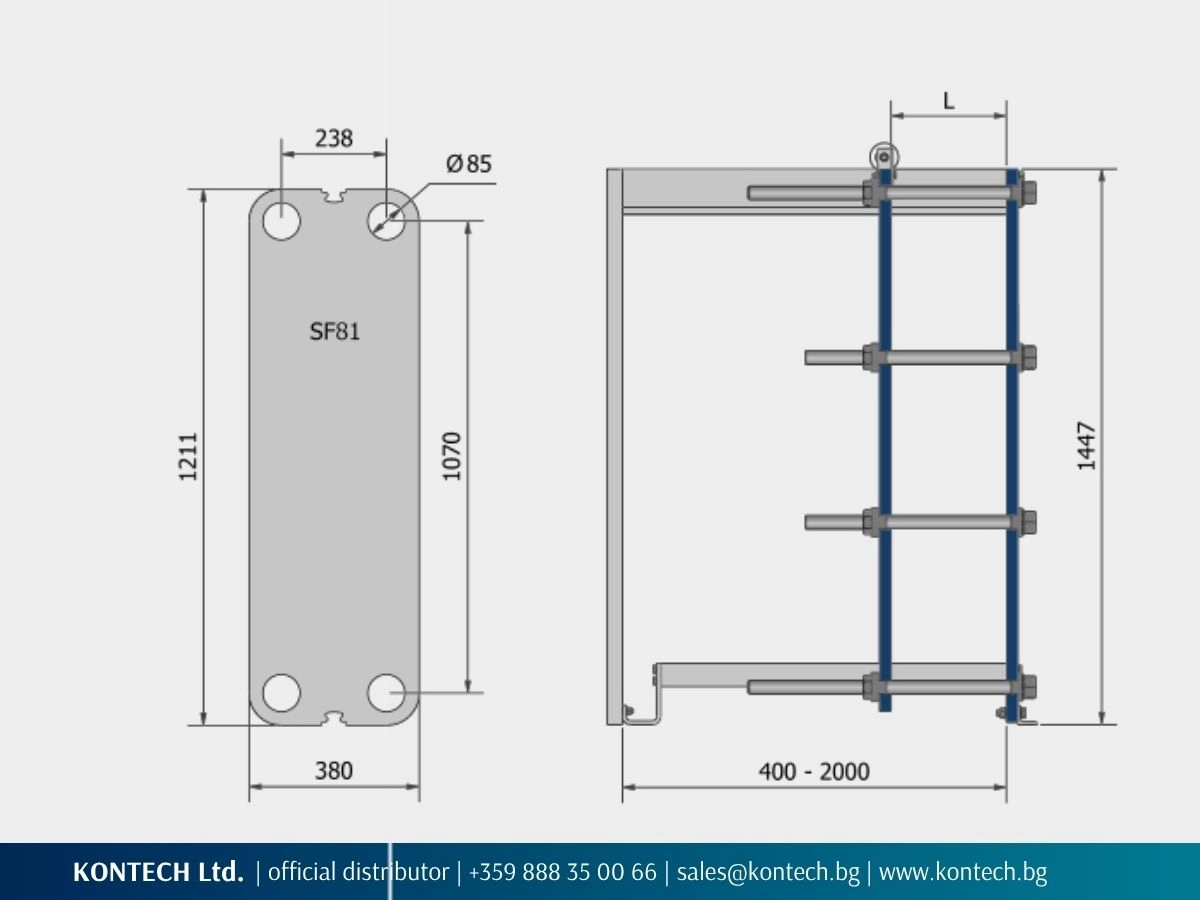

Technical drawing and dimensions of SonFlow SF80
SonFlow SF80 technical data
| Parameter | Data |
| Heat exchanger type |
Gasketed plate heat exchanger |
| Series |
SonFlow SF80 |
| Model |
SF81 |
| Configuration |
Single-pass |
| Plate material |
AISI 316 stainless steel Titanium |
| Design pressure |
10 bar 16 bar |
| Operating temperature |
Up to 165 °C, depending on materials and configuration |
| Design codes specified by the manufacturer |
EN 13445 ASME Section VIII, Division 1 |
| Frame |
Painted frame RAL 5010 Stainless steel frame |
| Connections |
DN80 flanged connections 3″ unions for food processing applications |
| Gaskets |
NBR EPDM |
| Plate dimensions |
380 × 1211 mm |
| Port centre distances |
238 mm horizontal 1070 mm vertical |
| Plate port diameter |
Ø85 mm |
| Overall frame height shown in the drawing |
1447 mm |
| Accessories |
Drip tray, insulation jacket, safety cover, assembly spanner and foundation feet |
Dimensions are taken from the SF81 technical drawing.
The technical data are based on the SonFlow A/S datasheet dated July 2026. The specifications shown reflect the configurations supplied by KONTECH. Applicable materials, pressure, temperature and design codes are confirmed for the selected configuration.
SonFlow SF80 is supplied to order. The price depends on the configuration and is stated in the quotation. The standard delivery time is approximately four weeks. Price and delivery time are confirmed in the quotation.
Other SF models
Frequently asked questions
SF80 is the series designation, while SF81 is the model within that series. Either designation can be used in your enquiry. The specific configuration is selected according to the operating conditions.
The SF71 model in the SF70 series has DN50 connections, while SF81 in the SF80 series has DN80 connections. The plate geometries also differ. The appropriate model is determined by thermal and hydraulic sizing.
The port geometry and plate corrugation are designed for gentle handling of sensitive food products. Suitability for a specific process is assessed according to product composition, viscosity, presence of particles and cleaning requirements.
The construction allows cleaning in place (CIP) without dismantling the unit. Cleaning agents, concentrations, temperatures and procedures must be compatible with the plates and gaskets. The unit can also be opened for inspection and mechanical cleaning when required.
Replacement is assessed according to operating conditions, overall dimensions and connections. Send a photo of the existing unit’s nameplate and photos of the connections.
The possibility of adding plates is assessed according to the available frame capacity and the new operating conditions. The modification requires thermal and hydraulic sizing to be carried out again.
Replacement plates and gaskets for SonFlow SF81 are supplied to order. Send the model, serial number and a photo of the nameplate to identify the required parts. We may also request a photo of the plate or gasket.
There is no fixed price for the series. The price depends on the plate pack, materials, frame and connections. The specific price is stated in the quotation once the required configuration has been defined.
SonFlow SF80 is supplied to order with a standard delivery time of approximately four weeks. The specific delivery time is confirmed in the quotation.
Request a quotation
Describe the application and send the available operating data. For food processing applications, specify the product, connection requirements and cleaning method. If further information is needed, we will contact you to clarify it.
The configuration, price and delivery time are confirmed in the quotation.
About SonFlow and KONTECH
KONTECH Ltd. is an official distributor of SonFlow A/S, serving projects in Bulgaria, Romania, Greece and Cyprus. SonFlow gasketed plate heat exchangers are manufactured in Kolding, Denmark, and configured according to the operating conditions of each application.
Send the available data for selection of a SonFlow SF80 gasketed plate heat exchanger. The quotation will specify the proposed configuration, price and confirmed delivery time. For general product information or questions beyond a specific selection, contact us.
