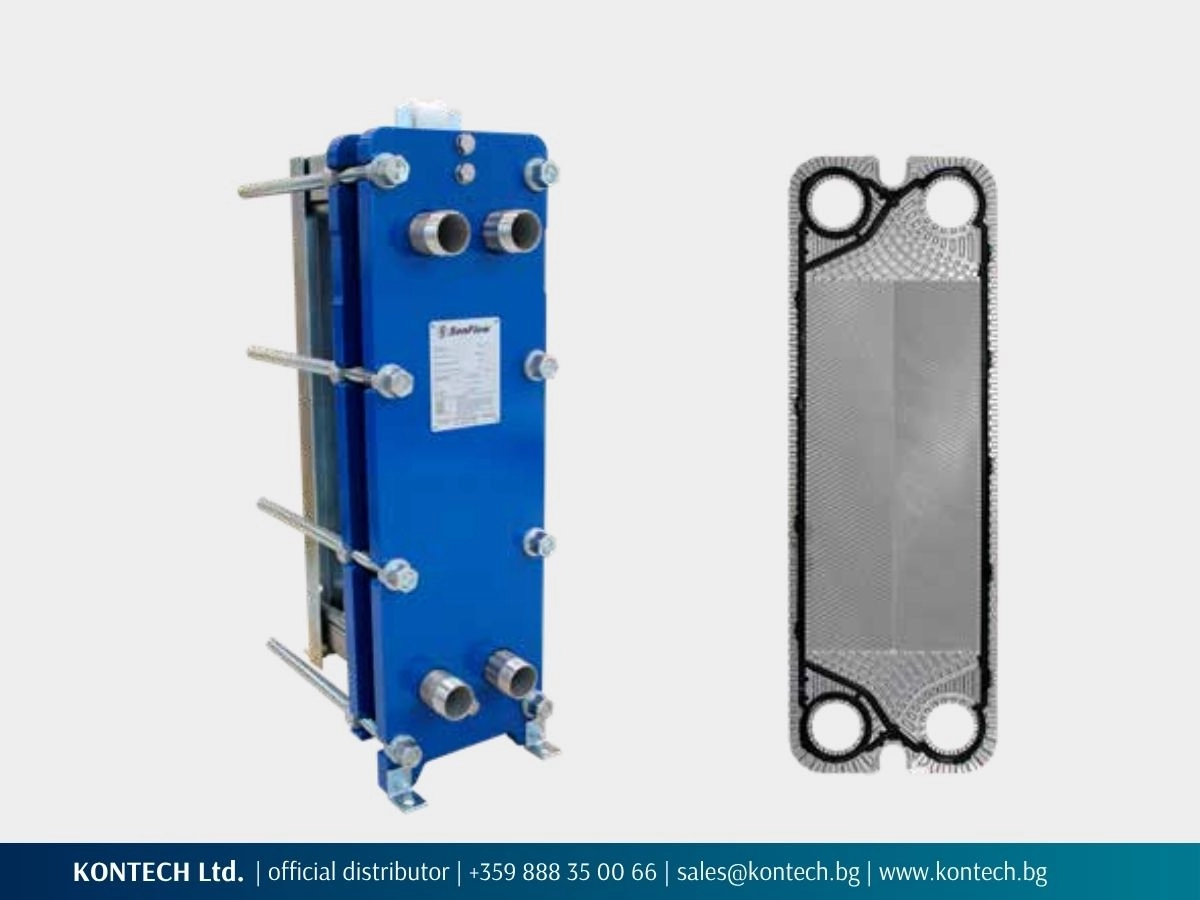

SonFlow SF50 Gasketed Plate Heat Exchanger
SF51 and SF51D models for HVAC and industrial applications
SonFlow SF50 is a single-pass gasketed plate heat exchanger series with DN50 / 2″ connections. The series includes the SF51 and SF51D models and is configured according to the fluids, flow rates, temperatures, operating pressure and allowable pressure drop.
KONTECH considers SF50 when price is a key selection factor and the operating parameters are within the range of the series. The specific model, materials and number of plates are confirmed in the quotation. Send the available fluid, flow rate, temperature and operating pressure data. We will clarify any missing parameters.
SF51 and SF51D
DN 50 / 2″
16 or 25 bar
up to 165 °C
AISI 304/316 or titanium
EPDM or NBR
New heat exchanger, replacement or spare parts
Select the option that matches your inquiry and send the available information. If additional data is required to prepare the quotation, we will contact you to clarify it.
New heat exchanger
Send the fluids on both sides, the flow rates, the inlet and required outlet temperatures, the operating pressure and the allowable pressure drop, if specified. Include any other requirements, if available.
PHE replacement
Send a photo of the nameplate and the unit, together with the available operating data, overall dimensions and connection details. We will check whether it can be replaced with a SonFlow SF50 or another SonFlow series.
Plates and gaskets
Send the model, serial number, number of plates and photos of the unit, nameplate or plate. If necessary, we will clarify the fluids and temperatures to select the gasket material.
SF51 or SF51D
Both models are part of the SF50 series and share the same basic frame dimensions. The difference lies in the plate profile.
The Deep profile forms deeper channels and is considered when this channel geometry suits the required hydraulic conditions and may help reduce the risk of clogging.
Do not select SF51D based on the “Deep” designation alone. The heat duty, channel velocity and pressure drop must be calculated for the specific operating conditions.

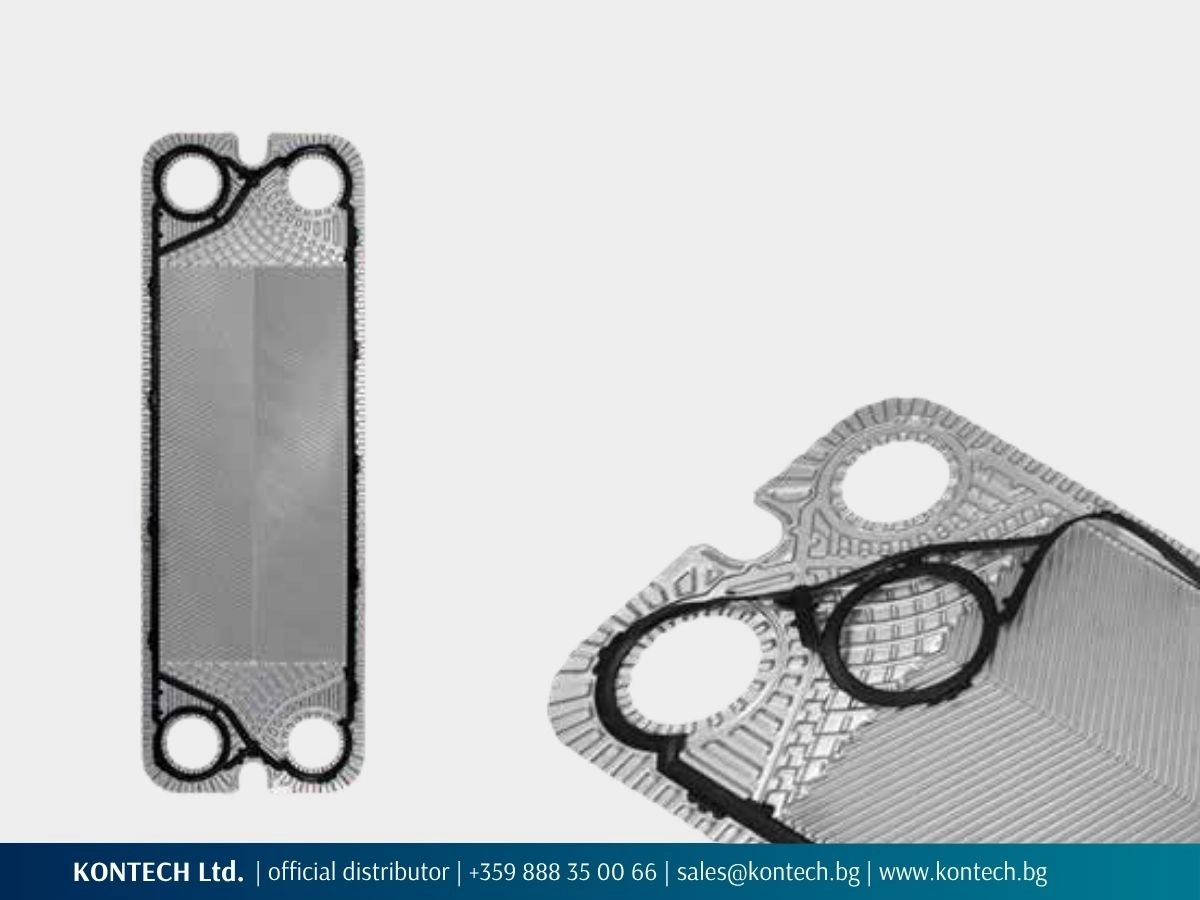

SF51: plates with standard pressing depth
For single-pass heating, cooling and process heat transfer duties where the hydraulic and thermal parameters suit the model.

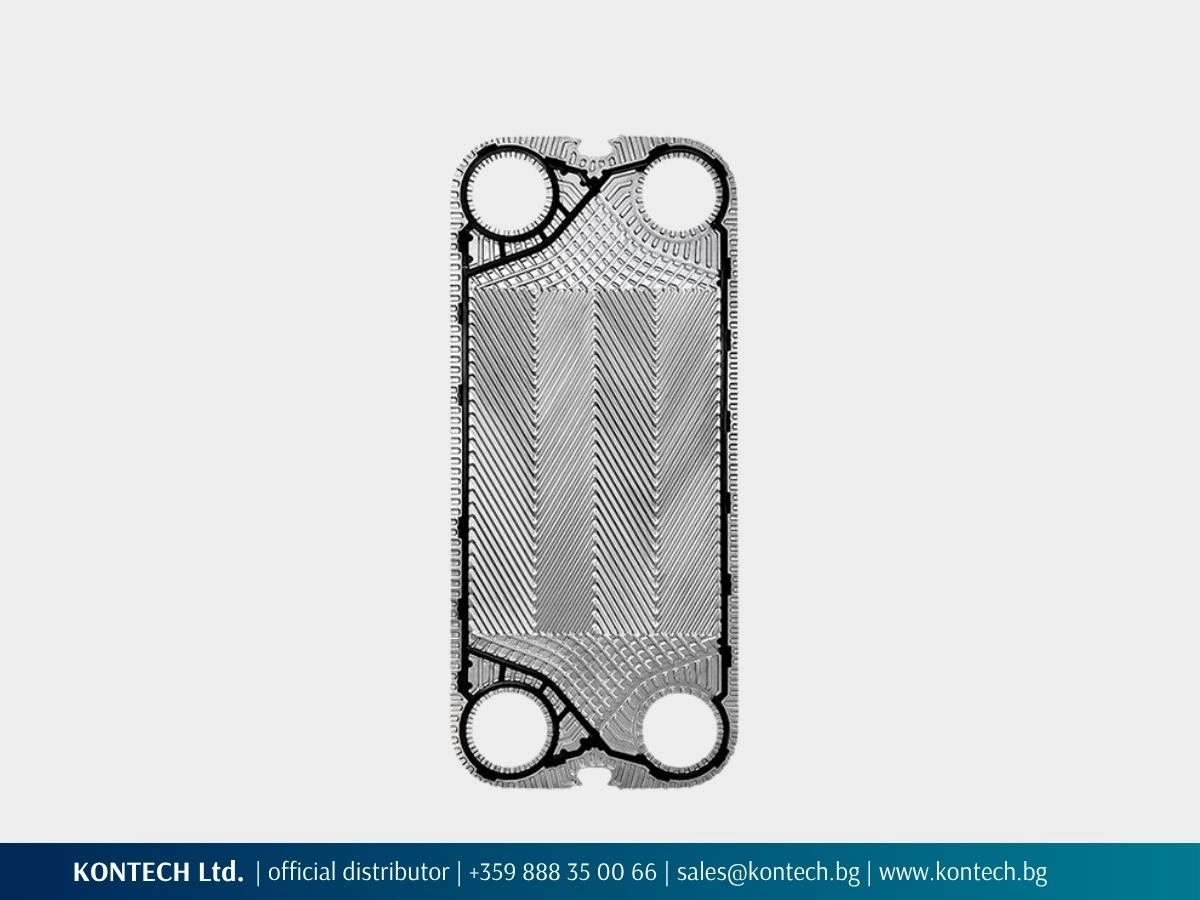

SF51D: plates with increased pressing depth
Suitable when deeper channels can support the required hydraulic performance and help reduce the risk of clogging.
When SF50 is a suitable choice
SF50 is a starting point when price is a key selection factor, DN50 / 2″ connections are required and the operating conditions fall within the range of the series. Connection diameter alone is not sufficient for final selection. The fluids, flow rates, temperatures, pressure and allowable pressure drop must also be checked.
The gasketed construction provides access to the plate pack for inspection, mechanical cleaning and gasket replacement. If the operating requirements change, the plate pack can be reassessed, provided that the frame and the revised sizing allow the change.
Typical applications of SONFLOW SF50
-
HVAC systems: separation of heating and cooling circuits in buildings and central installations.
-
Heat pump and geothermal systems: water and water-glycol circuits under suitable operating conditions.
-
Industrial processes: heating or cooling process fluids when their composition is compatible with the plate and gasket materials.
-
Marine applications: cooling and auxiliary circuits after verifying the material compatibility with the fluid.
-
Food and beverage: thermal processes using a configuration that meets the material, connection and cleaning requirements.
-
Chemical and mining industries: only after clarifying the composition, concentration and temperature of the fluid.
When another series should be considered
For larger connections or higher flow rates, a larger SonFlow gasketed plate heat exchanger series is considered.
For viscous or contaminated fluids, or fluids containing particles or fibres, a Free Flow plate heat exchanger is considered.
For clean fluids and applications that do not require the plate pack to be opened, a brazed plate heat exchanger may be considered.
Configuration according to the fluid and operating conditions
Plates
SF50 is available with plates in AISI 304, AISI 316 or titanium. The material is selected according to the fluid composition, temperature and corrosion risk. Other materials can be checked upon inquiry.
Frame
Painted frames in RAL 5010 and stainless steel frames are available. The design pressure and frame material are confirmed for the selected configuration.
Gaskets
The series uses Hang-on gaskets in NBR, EPDM or Viton. The selection depends on the fluid, operating temperature and cleaning agents used.
Connections
Available options include a DN50 / 2″ flanged, a DN50 / 2″ pipe connection or sanitary union for food-processing applications, and a 2″ BSP/NPT threaded connection. Mating pipe flanges are not included in the supply.
Information required for a quotation
For a new selection
-
Fluid on side 1 and side 2
-
Flow rate on both sides
-
Inlet and required outlet temperatures
-
Heat duty, if known
-
Operating and design pressure
-
Allowable pressure drop
-
Material and connection requirements
- Available installation and service space
For a replacement
- Photo of the nameplate and the existing unit
- Manufacturer, model and serial number
- Overall dimensions and connections
- Available operating data
- Reason for replacement, if known

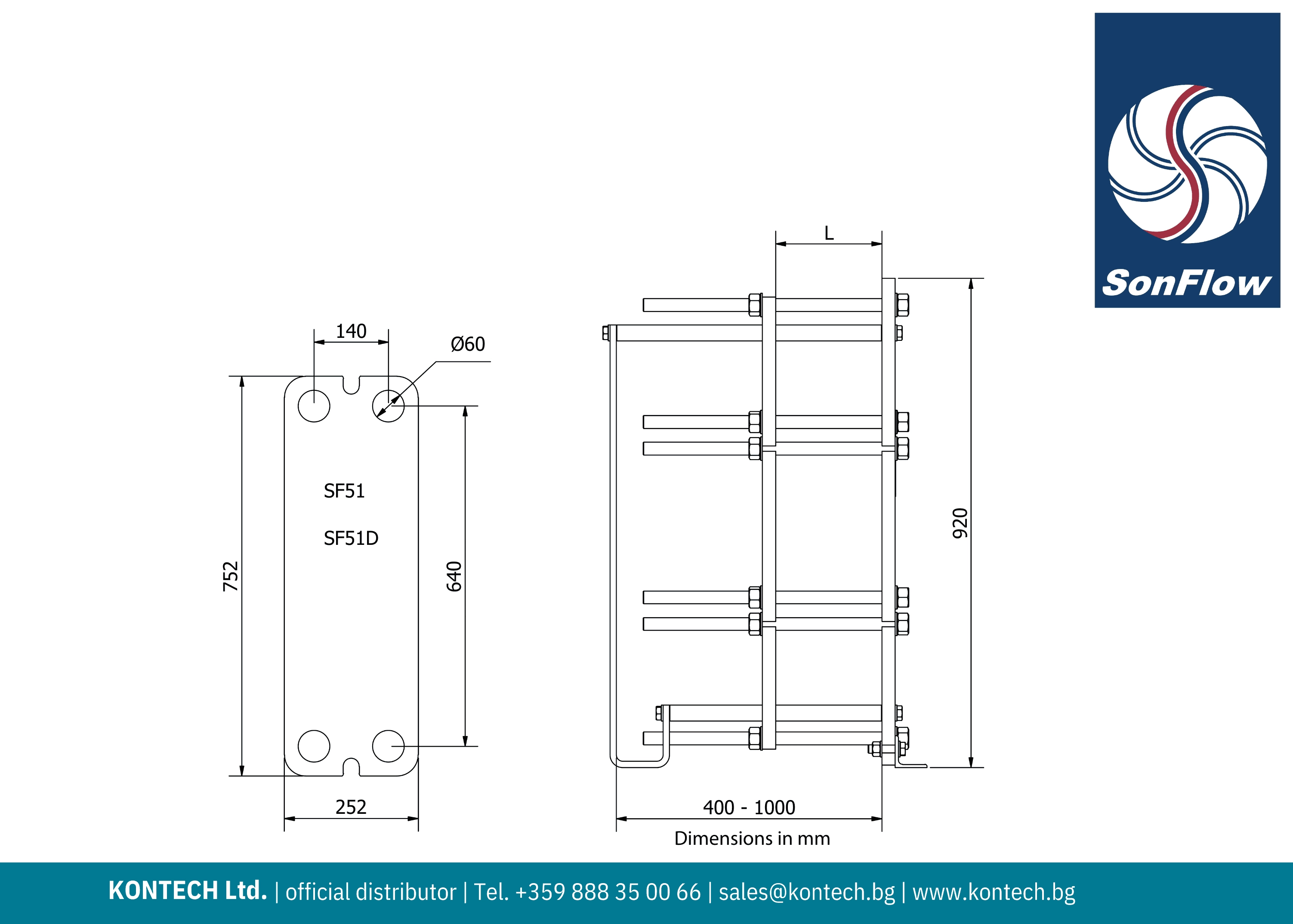

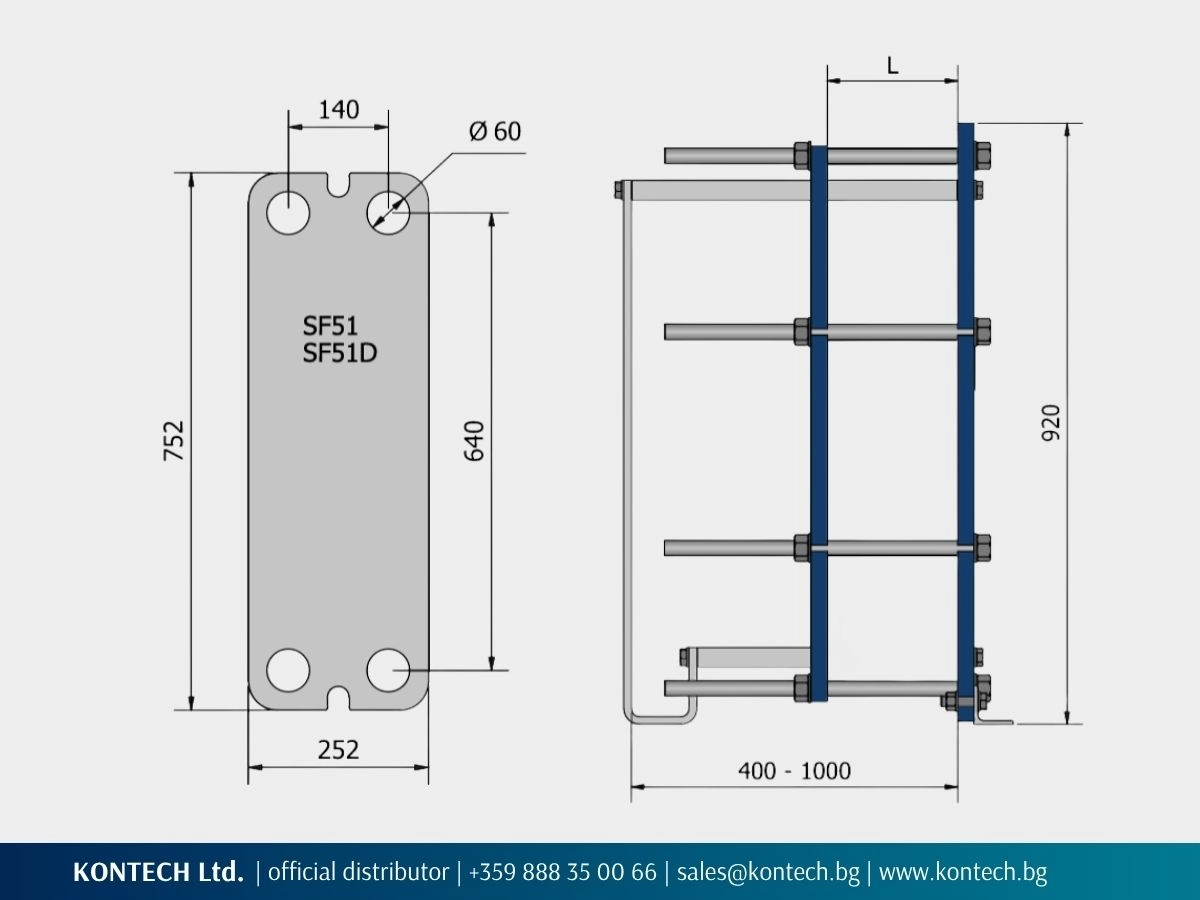

Technical drawing and dimensions of SONFLOW SF50
Technical data for SONFLOW SF50
| Parameter | Data |
|---|---|
| Heat exchanger type |
Gasketed plate heat exchanger |
| Series |
SonFlow SF50 |
| Models |
SF51, SF51D |
| Construction |
Single-pass gasketed plate heat exchanger |
| Plate material |
AISI 304 stainless steel |
| Design pressure |
16 bar (painted frame) |
| Operating temperature |
up to 165 °C, depending on the material and configuration |
| Standards and regulatory compliance |
EN 13445 ASME Section VIII, Division 1 |
| Frame |
Painted frame – RAL 5010 |
| Connections |
DN50 / 2″ flanged connection |
| Gaskets |
NBR EPDM |
| Plate dimensions |
252 × 752 mm |
| Port centres |
140 mm horizontally 640 mm vertically |
| Plate port diameter |
Ø60 mm |
| Overall height of the assembled unit |
920 mm |
| Accessories |
Condensate tray, insulation jackets, safety cover, assembly tool and mounting feet |
The dimensions shown are based on the technical drawing for SF51 and SF51D.
The technical data is based on product information provided by SonFlow A/S. Last updated: July 2026. The manufacturer reserves the right to change the specifications without prior notice. The specific dimensions and operating parameters are confirmed in the quotation.
The SF50 series is supplied on request. The usual production lead time is approximately four weeks. The specific configuration, price and delivery time are confirmed in the quotation.
Other SF models
Frequently asked questions
SF51D has a deeper plate profile. Under suitable operating conditions, this can improve hydraulic performance and help reduce the risk of clogging. Final selection is made after calculating the thermal duty and pressure drops.
No. Selection requires at least the fluids, flow rates, inlet and outlet temperatures and allowable pressure drop. The operating pressure, materials and connections also affect the configuration.
Yes, the possibility of replacement can be assessed. The thermal duty, pressure drop, overall dimensions, connections and required service space must be compared.
Plates may be added if the frame has sufficient capacity and the revised sizing confirms the required number of plates. Any modification should be verified against the thermal and hydraulic operating conditions.
Yes. The plate pack can be opened for inspection and mechanical cleaning. The construction also allows CIP cleaning when the process and the selected materials are compatible with it.
Each unit is configured for a specific thermal and hydraulic duty. The price depends on the configuration and is confirmed in the quotation.
The usual production lead time is approximately four weeks. The delivery time for the specific configuration is confirmed in the quotation.
