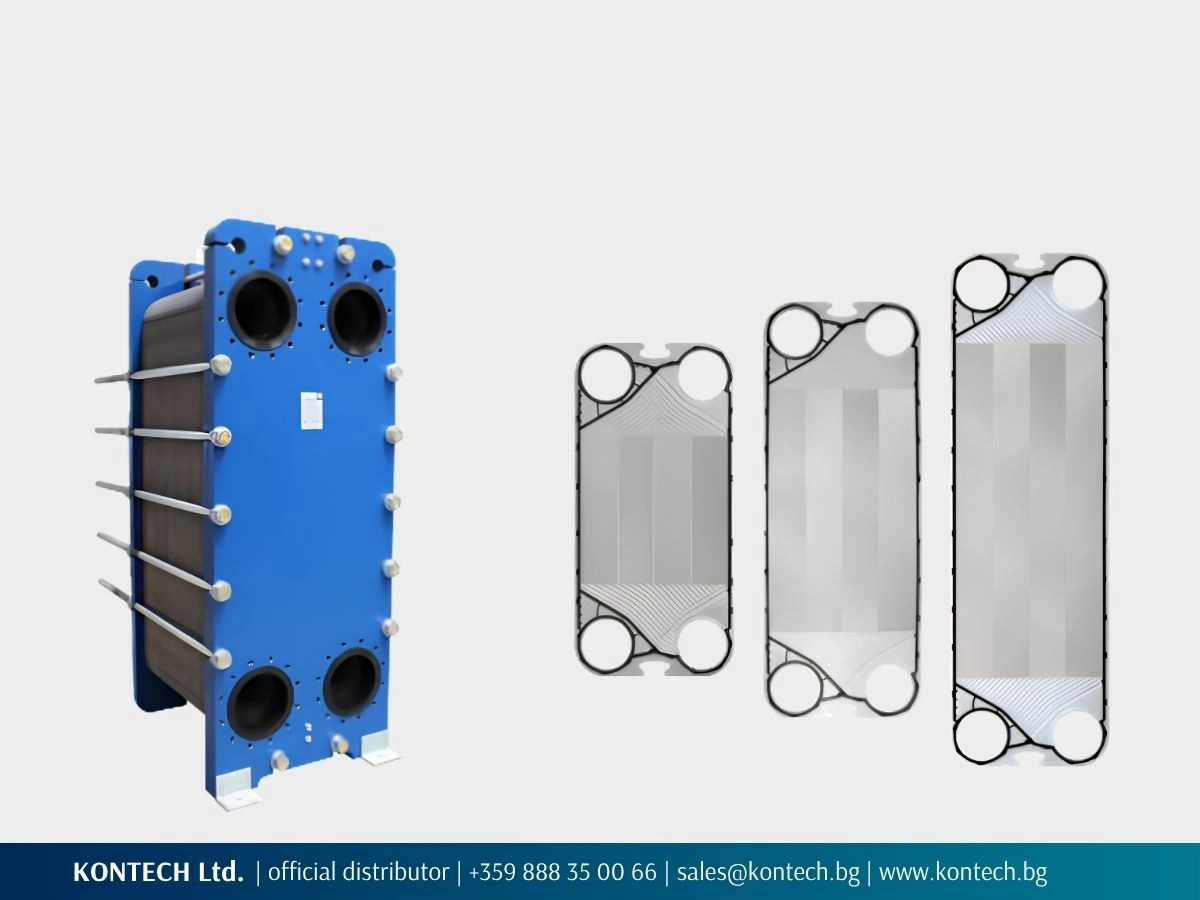

SonFlow SF250 Gasketed Plate Heat Exchanger
SF251, SF252 and SF253 with DN250 flanged connections
SonFlow SF250 is a series of gasketed plate heat exchangers with a single-pass configuration and DN250 flanged connections for HVAC and industrial installations. The SF251, SF252 and SF253 models offer three plate heights for selecting the heat transfer area according to the required thermal duty, flow rates and allowable pressure drop.
The gasketed construction allows inspection and mechanical cleaning of the plates, as well as replacement of plates and gaskets. The series is supplied to order. The configuration, price and delivery time are specified in the quotation.
SF251, SF252 and SF253
DN250 · flanged connections
10, 16 or 25 bar, depending on model
Up to +165 °C, depending on configuration
AISI 304, AISI 316 or titanium
EPDM or NBR
New heat exchanger, replacement or spare parts
Select the enquiry type and send the information you have. If further details are needed to prepare the quotation, we will contact you.
New heat exchanger
Send the fluids on both sides, flow rates, and inlet and outlet temperatures. Specify the operating pressure, allowable pressure drop and available space for installation and maintenance.
Replacement of PHE
Send photos of the nameplate and connections, along with the available operating parameters and overall dimensions. We will assess a replacement using SonFlow SF250 or another series.
Plates and gaskets
Send the model, serial number and required quantity. Attach photos of the nameplate, plate or gasket. Include the fluids and operating temperatures, if known.
SF251, SF252 and SF253 models
All three models use plates with a width of 760 mm and a horizontal port centre distance of 448 mm. The different heights provide different heat transfer areas per plate. Selection takes account of the thermal duty, hydraulic conditions and available installation space.

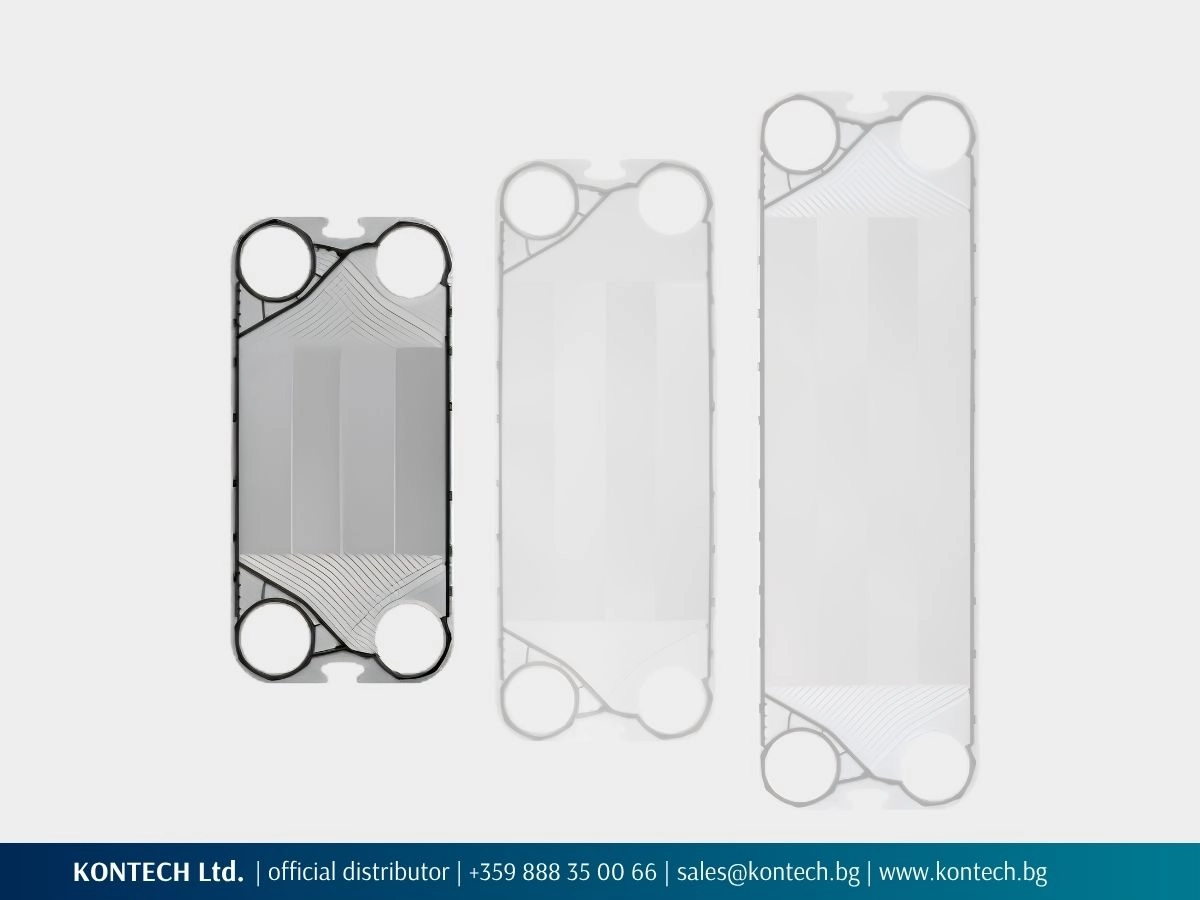

SF251 · plate size 760 × 1178.5 mm
The model with the shortest plate in the series. The vertical port centre distance is 860.5 mm. The overall frame height in the drawing is 1558 mm.

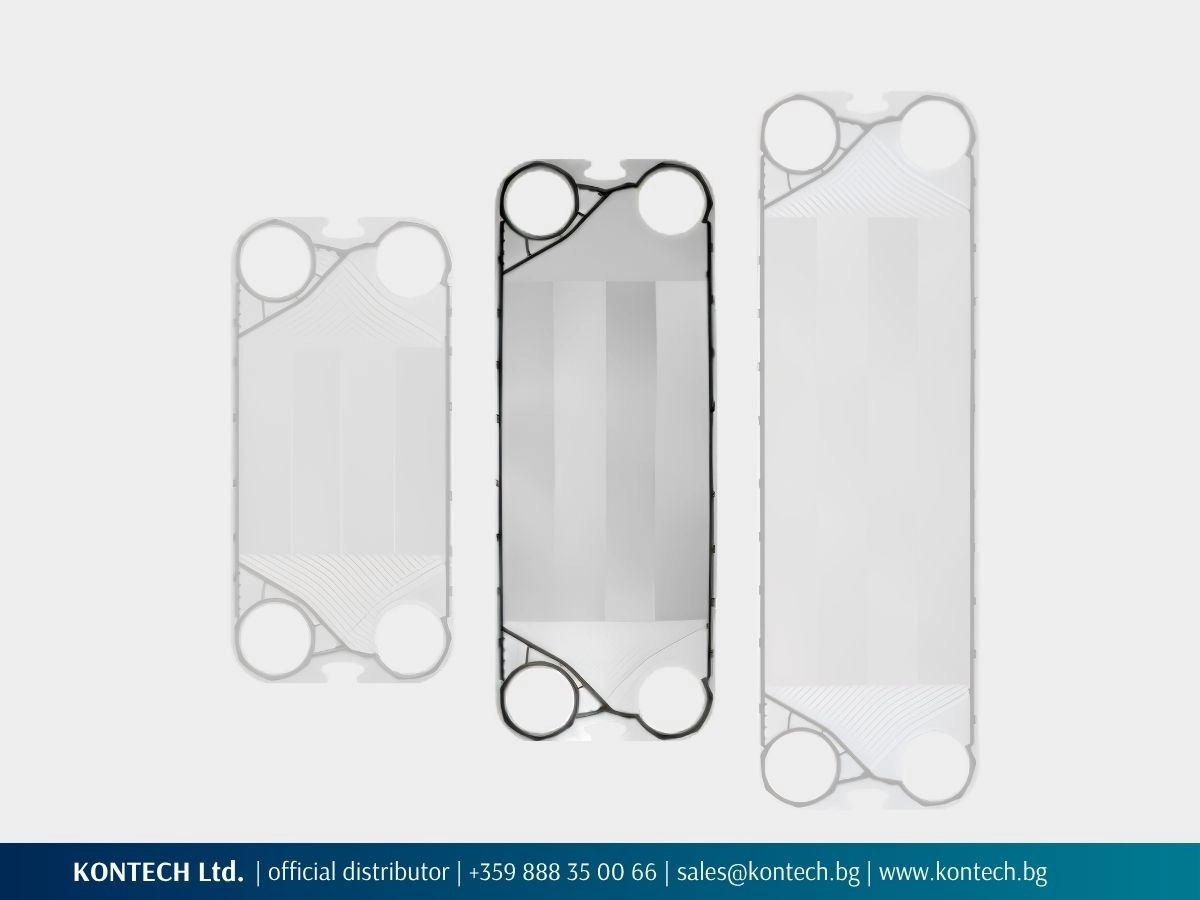

SF252 · plate size 760 × 1845 mm
The vertical port centre distance is 1527 mm. The overall frame height shown in the dimensional drawing is 2220 mm.

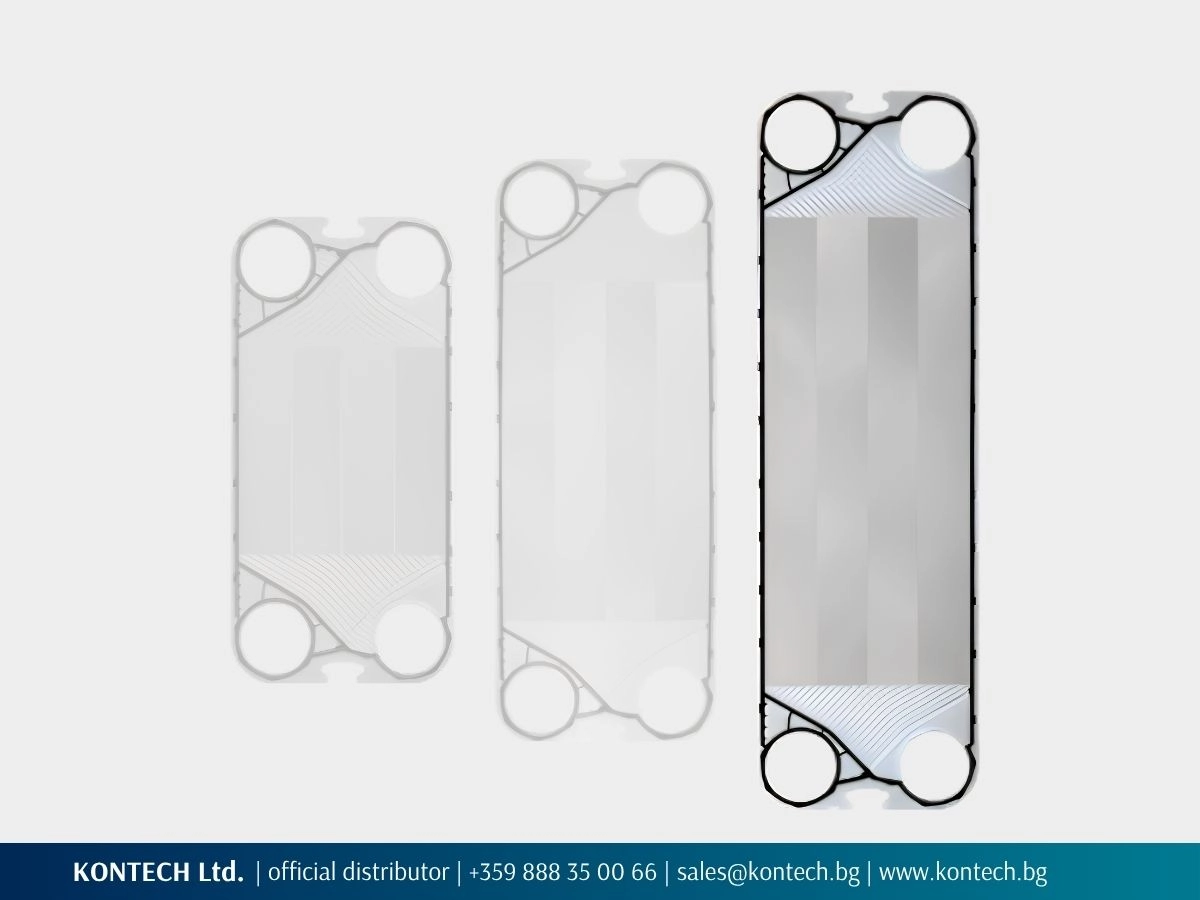

SF253 · plate size 760 × 2372 mm
The model with the tallest plate in the series. The vertical port centre distance is 2054 mm. The overall frame height shown in the dimensional drawing is 2761 mm.
When to consider SF250
KONTECH recommends considering SF250 for duties requiring DN250 flanged connections and a gasketed plate heat exchanger for heating, cooling or heat recovery. The three plate heights allow the heat transfer area to be selected for the specified operating conditions.
Plate size, profile and number are assessed together. DN250 connections alone do not determine the allowable flow rate or thermal duty. Installation planning must include access for unloading and space to open and service the plate pack.
When to consider another series
For different connection sizes, flow requirements or overall dimensions, consider the other SonFlow gasketed plate heat exchangers.
For fluids containing particles or fibres, or with elevated viscosity, a Free Flow plate heat exchanger can be assessed.
For corrosive fluids, the compatibility of all wetted surfaces must be checked. Titanium plates do not remove the need for a suitable connection material.
Typical applications of SonFlow SF250
- HVAC and central systems: Heat transfer between water or water-glycol circuits in central heating and cooling systems.
- Industrial processes: Heating and cooling of process fluids and recovery of waste heat, subject to assessment of the operating conditions.
- Data centres: Separation of cooling circuits according to the required thermal duty, temperatures and allowable pressure drop.
- Geothermal systems: Heat transfer following assessment of the water chemistry and compatibility with the plates, gaskets and connections.
Configuration to suit the fluids and operating conditions
Plates
SF250 is available with AISI 304, AISI 316 or titanium plates. The material is selected according to the fluids, temperatures and corrosion resistance requirements.
Frame
A painted carbon steel frame in RAL 5010 is available. Design pressure options are 10 or 16 bar for SF251, and 10, 16 or 25 bar for SF252 and SF253. The frame size is selected to suit the model and plate pack, taking account of installation and maintenance requirements.
Gaskets
The SF250 series is available with NBR or EPDM gaskets. The material is selected according to the fluids, operating temperatures and cleaning agents.
Connections
KONTECH supplies the SF250 series with DN250 carbon steel flanged connections. Compatibility with the fluid is assessed during selection. The flange standard and pressure rating are specified in the quotation. Mating pipe flanges are not included in the supply.
Information required for a quotation
For a new selection
- Fluid on side 1 and side 2
- Flow rate on each side
- Inlet and required outlet temperatures
- Thermal duty, if known
- Operating and design pressures
- Allowable pressure drop on each side
- Material and connection requirements
- Available space for installation and maintenance
For a replacement
- Photos of the nameplate and existing unit
- Manufacturer, model and serial number
- Overall dimensions and connection details
- Available operating parameters
- Reason for replacement, if known

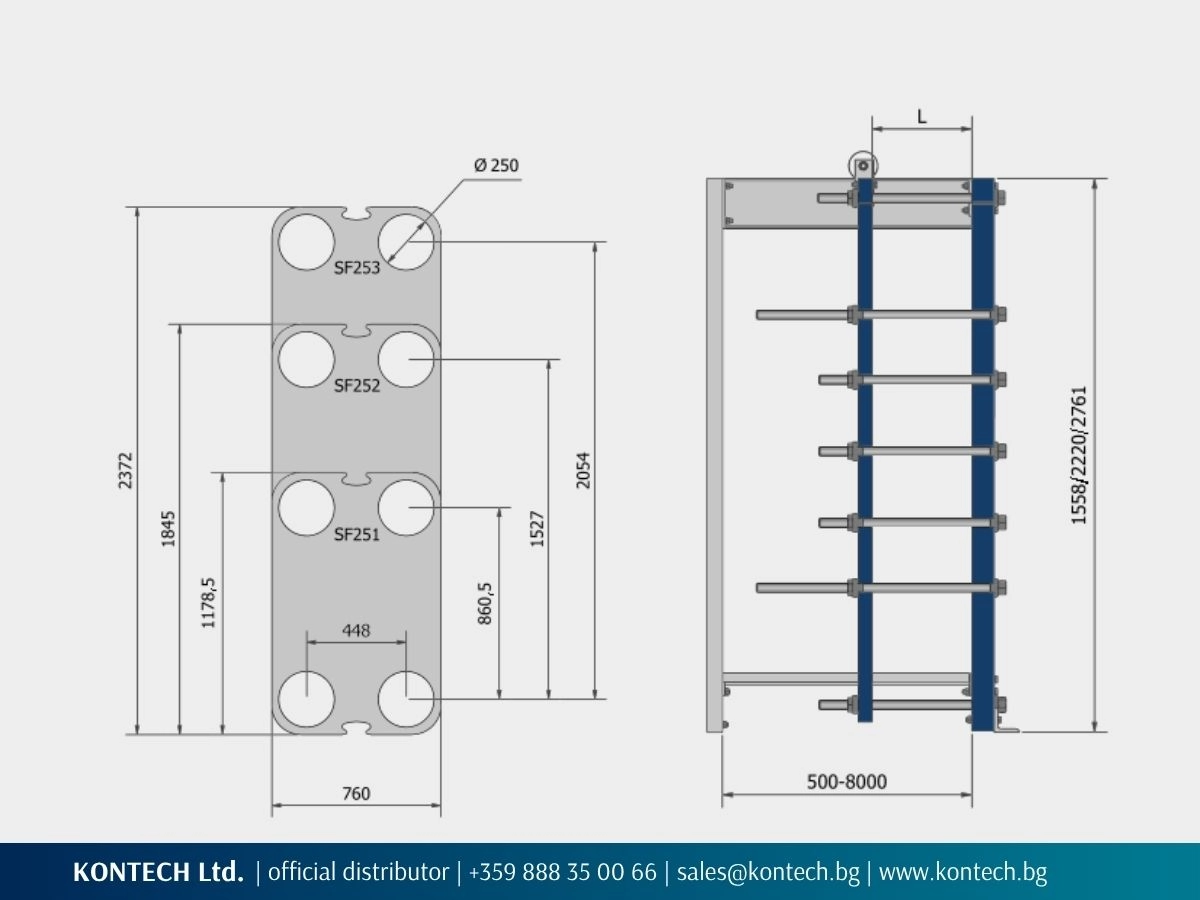

SonFlow SF250 dimensional drawing
SonFlow SF250 technical data
| Parameter | Specification | ||
|---|---|---|---|
| Heat exchanger type |
Gasketed plate heat exchanger |
||
| Series |
SonFlow SF250 |
||
| Models |
SF251 |
SF252 |
SF253 |
|
Plate size, mm (width × height) |
760 1178.5 |
760 1845 |
760 2372 |
| Port centre distances, mm (horizontal / vertical) |
448 860.5 |
448 1527 |
448 2054 |
| Plate port diameter |
Ø250 mm |
Ø250 mm |
Ø250 mm |
| Overall frame height shown in drawing, mm |
1558 |
2220 |
2761 |
| Design pressure, bar |
10 16 - |
10 16 25 |
10 16 25 |
| Configuration |
Single-pass |
||
| Plate material |
Stainless steel AISI 304 Stainless steel AISI 316 Titanium |
||
| Operating temperature |
Up to +165 °C, depending on configuration |
||
| Construction standards listed by the manufacturer |
EN 13445 ASME Section VIII, Division 1 |
||
| Frame |
Painted carbon steel frame, RAL 5010 |
||
| Connections |
DN250 carbon steel flanged connections |
||
| Gaskets |
NBR EPDM |
||
| Accessories, depending on configuration |
Drip tray; insulation jacket; safety cover; assembly spanner; foundation feet |
||
The dimensions shown are taken from the manufacturer's dimensional drawing. Final overall dimensions, frame length and plate pack dimensions are specified for the selected configuration.
The technical data are based on the SonFlow A/S datasheet dated July 2026 and reflect the configurations supplied by KONTECH. The manufacturer reserves the right to change specifications without prior notice.
SonFlow SF250 is supplied to order. The price depends on the model, materials and configuration. The price and delivery time are specified in the quotation.
Other SF models
Frequently asked questions
All three models use plates with a width of 760 mm and different heights. This provides different heat transfer areas per plate. The model and number of plates are selected according to the thermal duty, flow rates, allowable pressure drop and available installation space.
There is no single rating for all configurations. Flow rate and thermal duty are assessed according to the fluids, temperatures, model, plate profile and number of plates. Send the operating parameters and allowable pressure drop for selection.
A replacement is assessed using the operating parameters, overall dimensions and connections of the existing unit. Send photos of the nameplate and connections, together with any available drawing or dimensions.
The space required depends on the model, frame length and plate pack. In addition to the installation dimensions, allow access for unloading and space to move the pressure plate and remove the heat transfer plates.
This depends on a new sizing assessment. The temperatures, flow rates and allowable pressure drop must be checked. Additional plates can be proposed when the existing frame and configuration allow expansion and the resulting plate pack meets the revised operating requirements.
The price depends on the model, number and material of the plates, gaskets and frame. Once the operating parameters have been clarified, KONTECH prepares a quotation with a proposed configuration and price.
The series is supplied to order. The delivery time is confirmed for the selected model and configuration and specified in the quotation.
Request a quotation
Describe the application and send the operating parameters you have. Specify any installation and maintenance constraints. For a replacement, attach photos of the nameplate and connections. If further information is needed, we will contact you.
The proposed configuration, price and delivery time are confirmed in the quotation.
