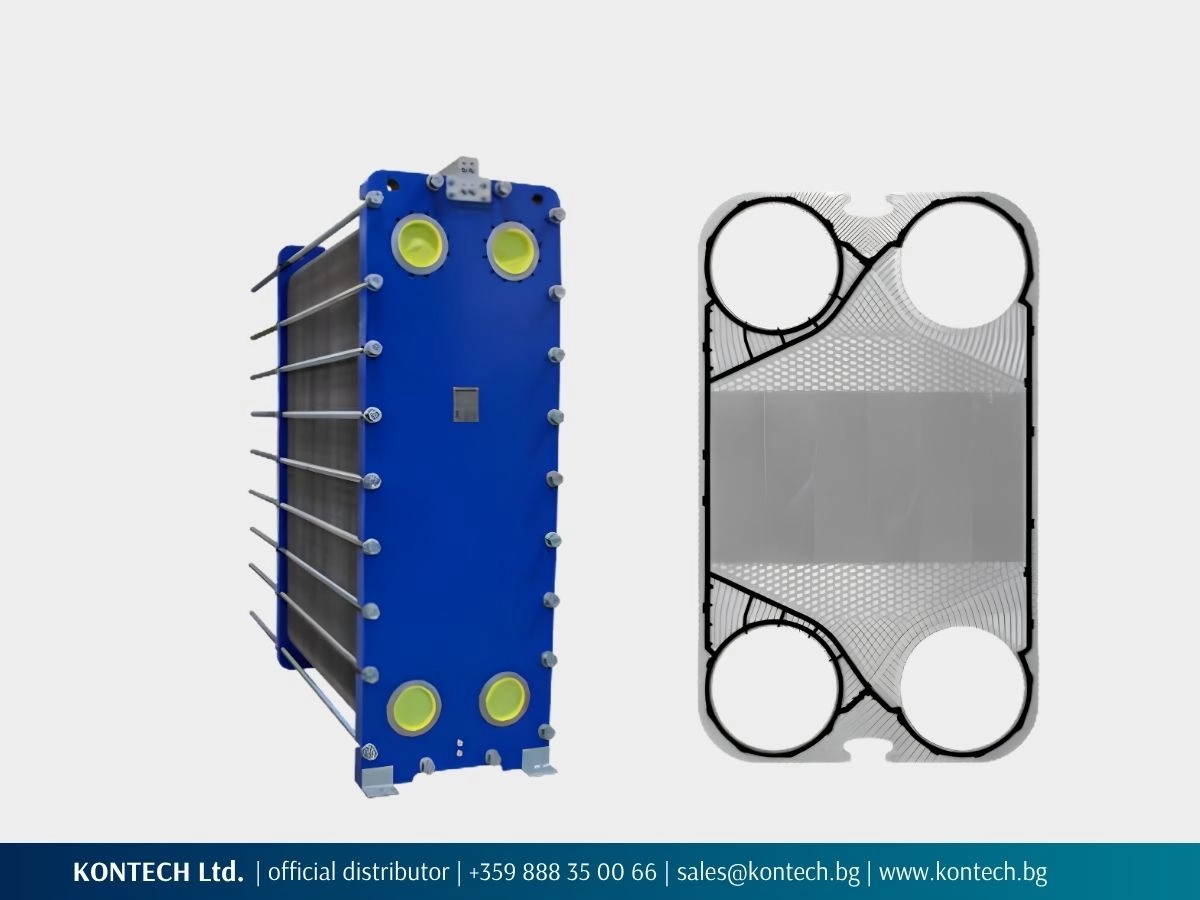

SonFlow SF300 Gasketed Plate Heat Exchanger
SF301, SF302 and SF304 models with DN300 flanged connections
SonFlow SF300 is a series of gasketed plate heat exchangers with DN300 flanged connections for HVAC and industrial installations. It includes the single-pass SF301, SF302 and SF304 models with three plate heights. The configuration is selected according to flow rates, temperatures, thermal duty and allowable pressure drop.
The dismantlable construction provides access to the plates for inspection, mechanical cleaning and replacement of plates and gaskets. SF300 heat exchangers are supplied to order. The price and delivery time are stated in the quotation.
SF301, SF302 and SF304
DN300 · flanged
10 bar, 16 bar or 25 bar
Up to +165 °C
AISI 304, AISI 316 or titanium
EPDM or NBR
New heat exchanger, replacement or spare parts
Select the enquiry type and send the technical data you have. We will clarify any additional information needed to prepare the quotation.
New Heat Exchanger
Specify the fluids, flow rates and temperatures on both sides. Include the operating and design pressures, allowable pressure drop and available space for installation and maintenance.
Heat Exchanger Replacement
Attach photos of the nameplate, heat exchanger and connections. Send the operating parameters. We will assess replacement options using SF300 or another SonFlow series.
Plates and Gaskets
Specify the model, serial number and required quantity. Attach photos of the nameplate and the plate or gasket. Include the fluids and temperatures so we can check material compatibility.
SF301, SF302 and SF304 models
All three models use plates with a width of 868 mm and a horizontal port centre distance of 480 mm. The different heights provide different heat transfer areas per plate. Model selection is based on thermal and hydraulic calculations.

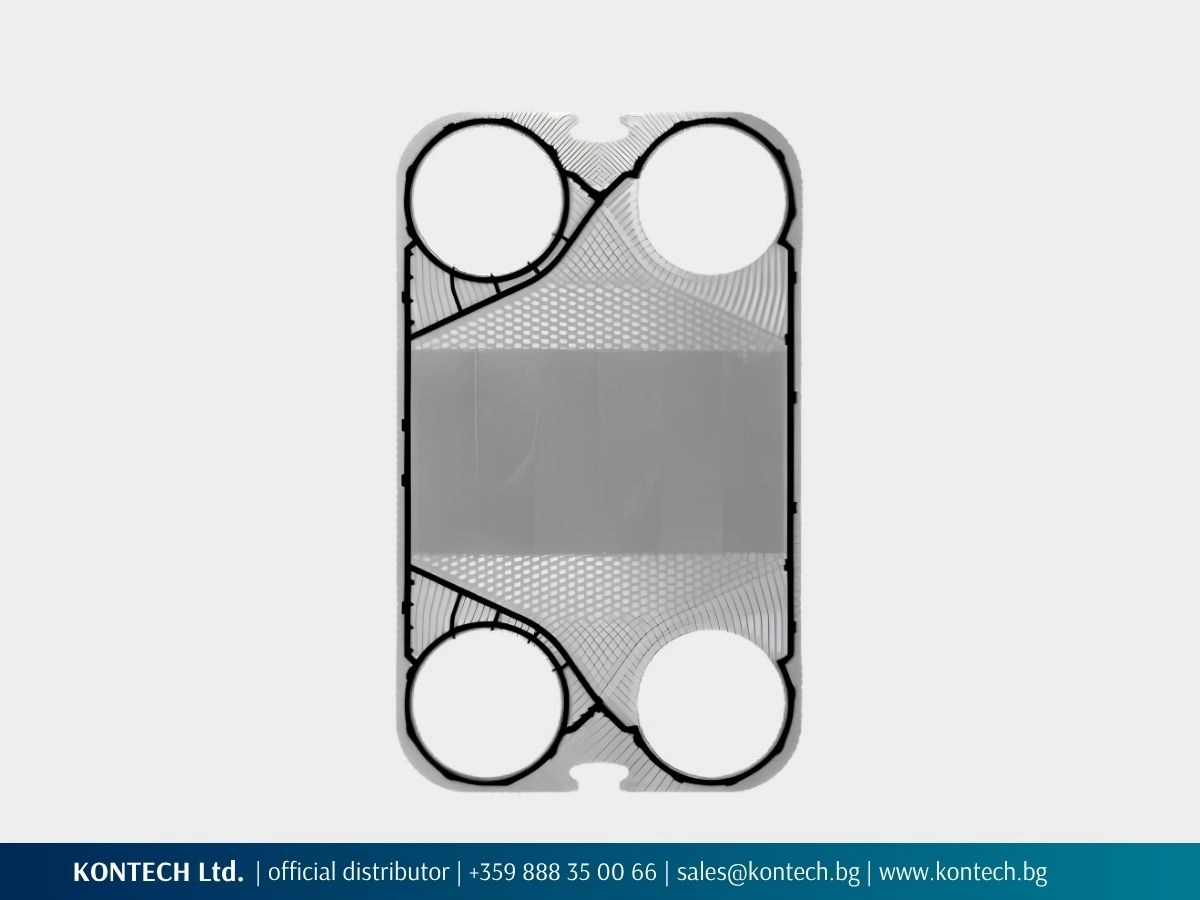

SF301 · Plate Size 868 × 1462 mm
SF301 has the shortest plate in the series. The vertical port centre distance is 1080 mm. The overall frame height shown in the dimensional drawing is 1811 mm.
SF302 · Plate Size 868 × 1872 mm
SF302 uses a plate with a height of 1872 mm. The vertical port centre distance is 1490 mm. The overall frame height shown in the dimensional drawing is 2221 mm.
SF304 · Plate Size 868 × 2502 mm
SF304 has the tallest plate in the series. The vertical port centre distance is 2120 mm. The overall frame height shown in the dimensional drawing is 2851 mm.
When to consider SF300
KONTECH recommends considering SF300 for central HVAC and industrial systems with high flow rates and DN300 connections. The series is selected for heating, cooling or heat recovery duties requiring a gasketed plate heat exchanger with access to the plates.
In the single-pass arrangement, each fluid flows once along the length of its channels between the plates. Plate size, profile and quantity are selected together to meet the required thermal duty and hydraulic constraints.
When to consider another series
For different flow rates, connection sizes or dimensional requirements, explore the other SonFlow gasketed plate heat exchangers.
For fluids containing particles or fibres, or fluids with higher viscosity, a Free Flow plate heat exchanger may be considered following a review of the operating conditions.
Typical Applications of SonFlow SF300
- Central HVAC systems: Heat transfer between water and water-glycol circuits in central heating and cooling systems. Selection takes account of flow rates, operating temperatures and allowable pressure drop.
- Industrial processes: Heating and cooling of process fluids, cooling of production equipment and waste heat recovery. Compatibility is checked for all components in contact with the fluids.
- Data centres: Separation of cooling circuits through heat exchange. The configuration is selected according to thermal duty, required temperatures and the hydraulic constraints of the installation.
- Geothermal systems: Heat transfer to a secondary circuit. The primary fluid is assessed for chemical composition, fouling potential and compatibility with the plates, gaskets and connections.
Configuration for the fluids and operating conditions
Plates
Plates are available in AISI 304, AISI 316 or titanium. The material is selected according to the chemical composition and temperatures of the fluids. The plate profile and quantity are determined by the thermal duty and allowable pressure drop.
Frame
The painted frame is available with a design pressure of 10 bar, 16 bar or 25 bar, depending on the model. Its construction and length are specified according to the model and plate pack. Space must be provided for opening and maintenance.
Gaskets
Gaskets are available in NBR or EPDM. The material and attachment method are specified for the selected configuration. The operating temperature is confirmed according to the fluids, pressure and gasket material.
Connections
The SF300 series is available with DN300 flanged connections in painted carbon steel or with rubber lining. The connection arrangement is selected according to the fluids and operating conditions. Mating pipe flanges are not included in the supply.
Data required for a quotation
For a new heat exchanger
- Fluids on side 1 and side 2
- Flow rates on both sides
- Inlet and outlet temperatures
- Thermal duty, if known
- Operating and design pressures
- Allowable pressure drop
- Material requirements
- Available space for installation and maintenance
For a replacement
- Photos of the nameplate and existing heat exchanger
- Manufacturer, model and serial number
- Operating parameters
- Drawing or overall dimensions
- Connection dimensions and positions
- Reason for replacement, if known

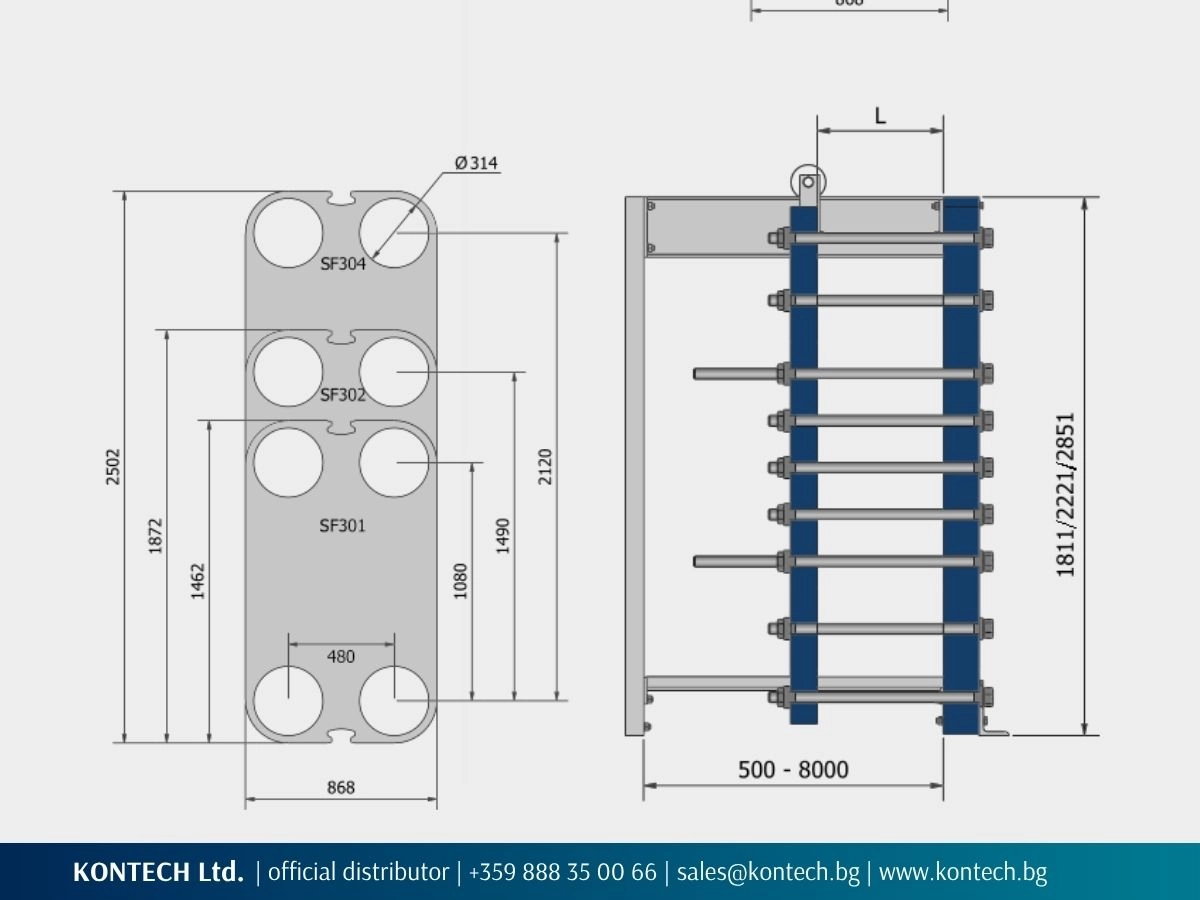

SonFlow SF300 dimensional drawing
SonFlow SF300 technical data
| Parameter | Data | ||
|---|---|---|---|
| Heat exchanger type |
Gasketed plate heat exchanger |
||
| Series |
SonFlow SF300 |
||
| Models |
SF301 |
SF302 |
SF304 |
|
Plate dimensions, mm (width × height) |
868 1462 |
868 1872 |
868 2502 |
| Port centre distances, mm (horizontal × vertical) |
480 1080 |
480 1490 |
480 2120 |
| Plate port diameter |
Ø314 mm |
Ø314 mm |
Ø314 mm |
| Overall frame height, mm |
1811 |
2221 |
2851 |
| Design pressure, bar |
10 16 25 |
10 16 - |
10 16 25 |
| Flow arrangement |
Single-pass |
||
| Plate materials |
Stainless steel AISI 304 Stainless steel AISI 316 Titanium |
||
| Operating temperature |
Up to +165 °C, depending on the configuration |
||
| Design codes listed by the manufacturer |
EN 13445 ASME Section VIII, Division 1 |
||
| Frame |
Painted carbon steel frame, RAL 5010 |
||
| Connections |
DN300 flanged connections |
||
| Gaskets |
NBR EPDM |
||
| Accessories |
Drip tray; insulation jacket; protective cover; assembly spanner; mounting supports |
||
Dimensions are taken from the manufacturer’s dimensional drawing. The frame, plate pack and unit weight are specified for the selected configuration.
The technical data are based on the SonFlow A/S datasheet dated July 2026 and reflect the configurations offered by KONTECH. The manufacturer reserves the right to change specifications without prior notice.
SonFlow SF300 is supplied to order. The price and delivery time are stated in the quotation according to the model, configuration and delivery requirements.
Other SF models
SF300 is part of the SonFlow range of gasketed plate heat exchangers. For other plate dimensions or connection sizes, explore the remaining SF series: SF30, SF50, SF55, SF60, SF70, SF80, SF100, SF100HE, SF150, SF200, SF250, SF350, SF400, SF500. Selection is based on the operating parameters and installation requirements.
Frequently asked questions
The three models have the same plate width and different plate heights. This changes the heat transfer area per plate and the overall unit height. The model, plate profile and quantity are selected according to thermal duty, flow rates and allowable pressure drop.
Replacement options are assessed using the operating parameters, overall dimensions and connections of the existing unit. Send a photo of the nameplate and any available drawing. KONTECH will assess a replacement configuration and any installation changes required.
This requires new thermal and hydraulic calculations and an assessment of the existing frame. Adding plates depends on the available frame capacity and the revised flow rates, temperatures and allowable pressure drop.
No. The allowable operating temperature depends on the selected gaskets, fluids and pressure. The stated limit of up to +165 °C must be confirmed for the specific configuration.
The price depends on the model, plate quantity and material, gaskets, design pressure and accessories. Once the technical requirements have been clarified, KONTECH prepares a quotation with the proposed configuration and price.
SF300 is supplied to order. The delivery time is confirmed for the selected model and configuration and stated in the quotation.
Request a quotation
Describe the application and send the operating parameters you have. For a replacement, attach photos of the nameplate and connections, together with a drawing if available. We will clarify any additional data needed to prepare the quotation.
The proposed configuration, price and delivery time are confirmed in the quotation.
About SonFlow and KONTECH
KONTECH is an official distributor of SonFlow A/S, supplying projects in Bulgaria, Greece, Romania and Cyprus. SonFlow gasketed plate heat exchangers are manufactured in Kolding, Denmark. Each unit is configured to meet the technical requirements of the project.
Send your operating parameters for selection of a SonFlow SF300 gasketed plate heat exchanger. The quotation will include the proposed model, configuration, price and delivery time. For general product information, contact us.
