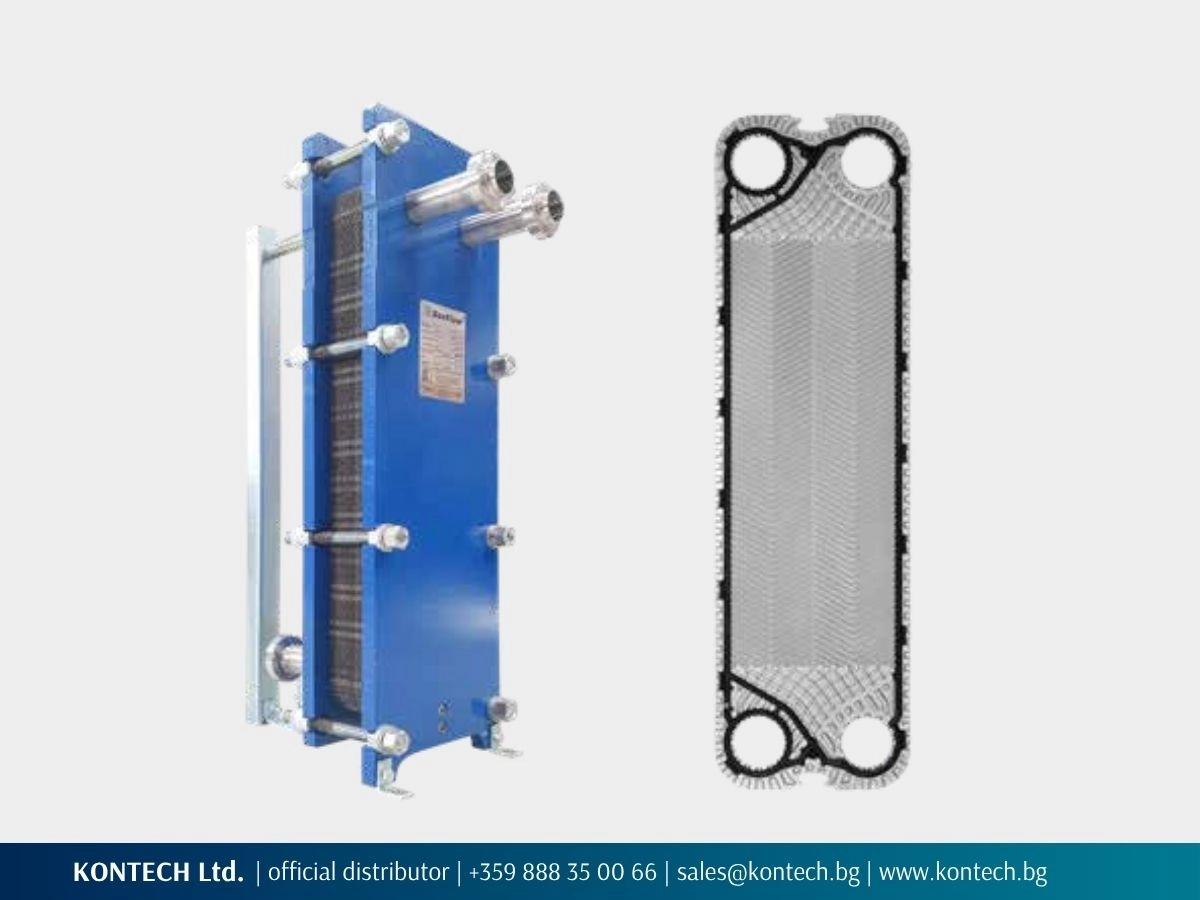

SonFlow SF70 Gasketed Plate Heat Exchanger
SF71 for heat exchange between liquid food products and heating or cooling media
The SonFlow SF70 series includes SF71, a single-pass gasketed plate heat exchanger with DN50 / 2″ connections for food processing applications. The porthole design and plate corrugation are designed for gentle handling of sensitive liquid food products during heat exchange with a heating or cooling medium.
The configuration is selected according to the product, flow rates, temperatures, allowable pressure drop and cleaning requirements. The gasketed construction provides access to the plates for inspection, mechanical cleaning and gasket replacement.
SF71
DN 50 / 2″
10 bar or 16 bar
Up to 165 °C
AISI 316 or titanium
EPDM or NBR
New heat exchanger, replacement or spare parts
Choose the option that matches your enquiry and send the information you have. We will clarify any additional details required for the quotation.
New heat exchanger
Send the product and heating or cooling medium, flow rates, inlet and required outlet temperatures, operating pressure and allowable pressure drop. Include your connection and cleaning requirements.
Replacement of PHE
Send photos of the nameplate and connections, together with the available operating data and overall dimensions. We will assess replacement with SonFlow SF71 or another suitable series.
Plates and gaskets
Send the model, serial number, number of plates and photos of the nameplate or plate. Include the product, operating temperatures and cleaning agents, if known.
SF71 model in the SonFlow SF70 series
SF71 is the model in the SF70 series. The plate measures 268 × 928 mm, with a horizontal port centre distance of 150 mm and a vertical port centre distance of 800 mm.
Plate porthole diameter: Ø70 mm. Overall frame height shown in the drawing: 1136 mm. The unit length depends on the frame and number of plates.
The number and material of the plates are selected according to the required thermal duty, product properties and allowable pressure drop.
SF71 · plate 268 × 928 mm
When SF70 is a suitable choice
KONTECH recommends SF70 for heat exchange between liquid food products and heating or cooling media where gentle product handling, connections for food processing and access to the plates for maintenance are important. Selection considers the properties of both fluids, operating conditions and cleaning requirements.
For food processing applications, the product composition, viscosity, particle content and requirements for product-contact materials are specified. Plates, gaskets and connections are selected to suit the operating temperatures and planned cleaning procedure.
The construction allows cleaning in place (CIP) and opening for plate inspection. If the production conditions change, the possibility of adding plates can be assessed against the available frame capacity and revised thermal and hydraulic requirements.
Typical applications of SonFlow SF70
- Dairy processing: heating and cooling of liquid dairy products, subject to assessment of viscosity, temperature conditions and cleaning requirements.
- Beverages: heat exchange between liquid food products and heating or cooling media, with a configuration suited to the product composition, temperatures and cleaning requirements.
- Breweries and food production: heat exchange in production processes with connections, materials and operating conditions specified for the application.
- HVAC and industrial processes: heating and cooling of fluids where the SF71 configuration matches the application requirements.
When to consider another series
For heat exchange between water or water-glycol circuits, or where different plate geometry or connections are required, consider the other SonFlow gasketed plate heat exchangers. Selection depends on flow rates, temperatures and allowable pressure drop.
For fluids containing particles or fibres, or fluids with higher viscosity, KONTECH recommends assessing the suitability of a Free Flow plate heat exchanger.
Configuration according to fluids and operating conditions
Plates
SF71 is available with AISI 316 stainless steel or titanium plates. The material is selected according to the product and heating or cooling medium, temperatures and corrosion resistance requirements. For food processing, the requirements for product-contact materials are also specified.
Frame
The manufacturer specifies a painted frame in RAL 5010 or a stainless steel frame, with a design pressure of 10 or 16 bar. The frame construction is selected according to the installation environment, external cleaning conditions and operating requirements.

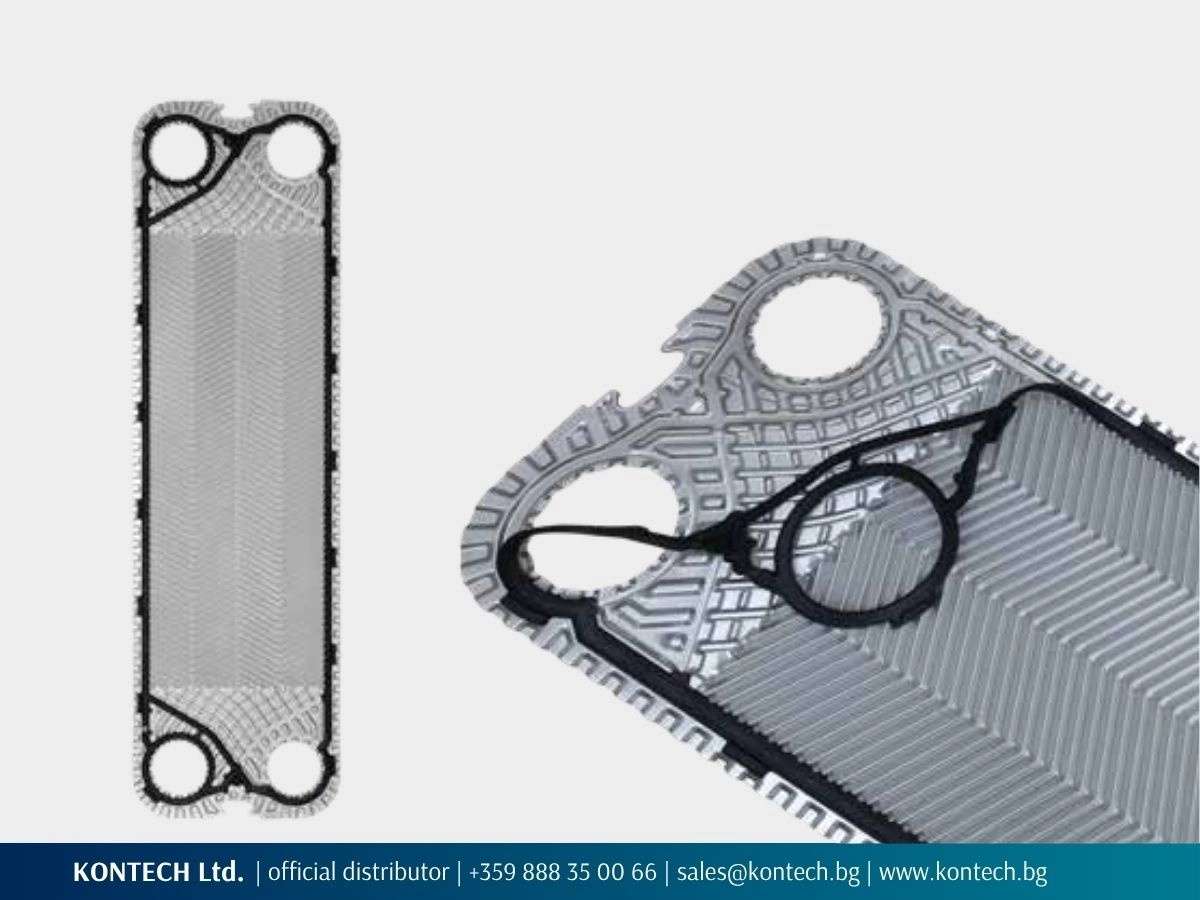

Gaskets
SF71 is available with Hang-on gaskets in NBR or EPDM. The gasket material is selected according to the product, heating or cooling medium, operating temperatures and cleaning agents. Selection also takes into account the concentrations of the cleaning agents and the temperatures used during the cleaning cycle.
Connections
SF71 is available with DN50 / 2″ connections for food processing applications. The connection standard, dimensions and construction are specified according to the piping system and installation requirements.
Information required for a quotation
For a new heat exchanger
- Product and heating or cooling medium on each side
- Flow rate on each side
- Inlet and required outlet temperatures
- Thermal duty, if known
- Operating and design pressures
- Allowable pressure drop
- Viscosity and particle content
- Requirements for product-contact materials
- Connection size and standard
- Cleaning procedure, agents and temperatures
- Available installation space
For a replacement
- Photo of the existing heat exchanger’s nameplate
- Manufacturer, model and serial number
- Overall dimensions and photos of the connections
- Available operating data
- Reason for replacement, if known

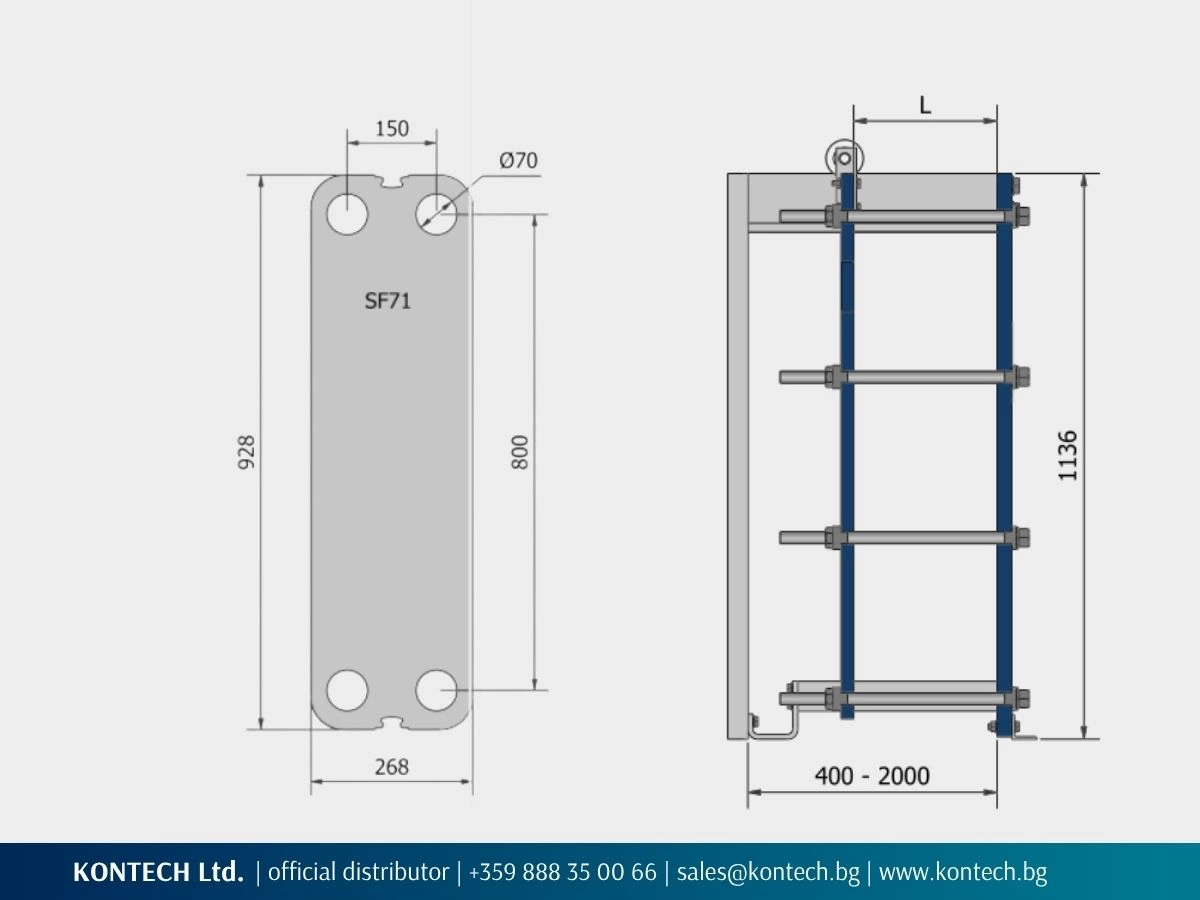

Technical drawing and dimensions of SonFlow SF71
SonFlow SF70 technical data
| Parameter | Specification |
| Heat exchanger type |
Gasketed plate heat exchanger |
| Series |
SonFlow SF70 |
| Model |
SF71 |
| Flow arrangement |
Single-pass |
| Plate material |
AISI 316 stainless steel Titanium |
| Design pressure |
10 bar 16 bar |
| Operating temperature |
Up to 165 °C, depending on materials and configuration |
| Construction standards specified by the manufacturer |
EN 13445 ASME Section VIII, Division 1 |
| Frame |
Painted in RAL 5010 Stainless steel |
| Connections |
DN50 / 2″ for food processing applications |
| Gaskets |
NBR EPDM |
| Plate dimensions shown in the drawing |
268 × 928 mm |
| Port centre distance |
150 mm horizontal 800 mm vertical |
| Plate porthole diameter |
Ø70 mm |
| Overall frame height shown in the drawing |
1136 mm |
| Accessories |
Drip tray, insulation jacket, safety cover, assembly spanner and foundation feet |
Dimensions are as shown in the SF71 technical drawing.
Technical data are based on the SonFlow A/S product datasheet dated July 2026. Applicable materials, design pressure, allowable temperature and construction standards are confirmed for the proposed configuration.
The SonFlow SF70 gasketed plate heat exchanger is supplied on request. Standard delivery time is approximately 4 weeks. Price and delivery time are confirmed in the quotation.
Other SF models
Frequently asked questions
SF71 is used for heat exchange between liquid food products and heating or cooling media. The porthole design and plate corrugation are designed for gentle handling of sensitive products. Selection considers composition, viscosity, particle content and the required temperature conditions.
Suitability is assessed according to the product, flow rate and temperature conditions. Pasteurisation also requires consideration of the process requirements, including holding time and system controls. The heat exchanger is selected as part of the processing system.
The manufacturer specifies suitability for cleaning in place (CIP). Cleaning agents, concentrations and temperatures must be compatible with the plates and gaskets. The unit can also be opened for inspection and mechanical cleaning when required.
Suitability is assessed against the operating conditions, overall dimensions and connections of the existing unit. Send photos of the nameplate and connections, together with any available drawing or dimensions.
Yes. KONTECH supplies replacement plates and gaskets for SonFlow SF71 on request. For a quotation, send a photo of the nameplate and the quantities required.
The price depends on the number and material of the plates, gaskets, frame and connections. Send the available operating data to receive a quotation for a specific configuration.
The model is supplied on request. Standard delivery time is approximately 4 weeks. The specific delivery time is confirmed in the quotation.
Request a quotation
Describe the liquid product and the required heating or cooling process. Send the available operating data and your connection and cleaning requirements. We will contact you if additional information is needed.
The proposed configuration, price and delivery time are confirmed in the quotation.
About SonFlow and KONTECH
KONTECH is an official distributor of SonFlow A/S, supplying projects in Bulgaria, Greece, Romania and Cyprus. SonFlow gasketed plate heat exchangers are manufactured in Kolding, Denmark, and configured according to the operating requirements of each application.
Send the available data. The quotation will specify the proposed model, configuration, price and confirmed delivery time. For general product information or questions beyond a specific selection, contact us.
